Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 160x260x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-162613
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-162613 is a 160×260×130 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-162613Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×260×130 mm (6.30×10.24×5.12 in)
Mounting plate dimension M1 × M2
129 × 229 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1525 G (Plastic, G type), 1525 P (Plastic, P type), 1525 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

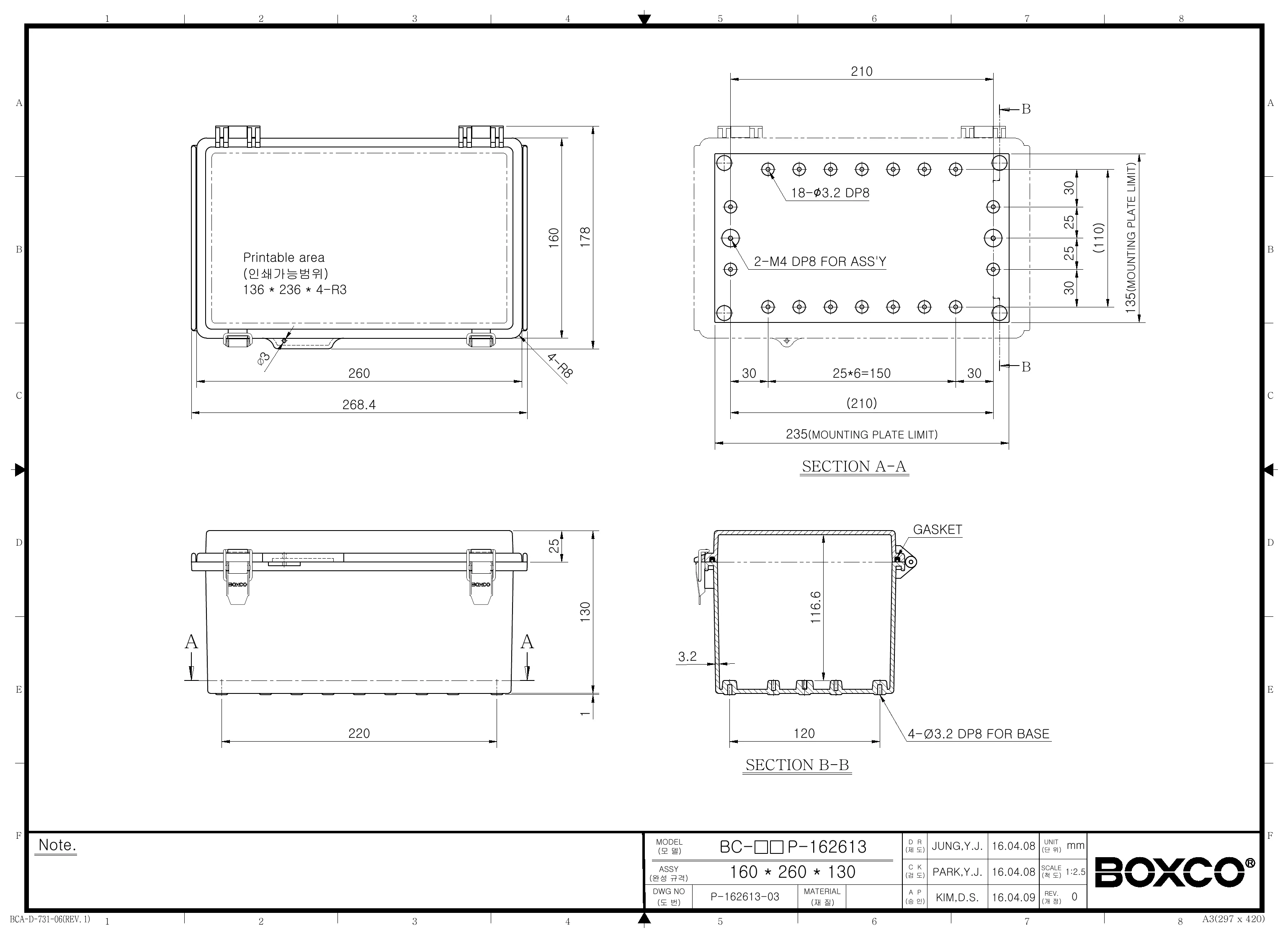

Technical drawings

BC-AGP-162613 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure typically used for?

This plastic enclosure is intended for protecting industrial or commercial electrical and electronic equipment in environments where dust, water, and impact resistance matter. Its molded hinge and latch design makes it a practical choice for control, monitoring, or protection applications that need a durable non-metallic housing.

What are the exact dimensions of this enclosure?

This model measures 6.30 x 10.24 x 5.12 inches, which is 160 x 260 x 130 mm. That size gives more internal space than smaller junction-style boxes while still staying compact enough for many equipment protection applications.

How well does this enclosure hold up outdoors or in harsh environments?

This enclosure is rated IP67 for dust-tight and water-resistant performance, and the product description states that an ultraviolet stabilizer is added for outdoor usage. It also includes roof protection features to help reduce water and dust penetration during cover operation.

What material is this enclosure made from, and why does that matter?

This model is made from ABS plastic and has a grey cover. The description also notes high impact resistance and anti-static material properties, making it suitable for protecting sensitive instruments while resisting breakage during machining or processing.

What is the temperature range for this enclosure?

The stated operating temperature range is -40 degrees C to 70 degrees C. That range supports use in both low-temperature and moderately high-temperature environments, depending on the requirements of the protected equipment.

Does this enclosure support internal mounting of components or accessories?

Yes, the product description states that it includes pre-molded mounting screw nuts for securing DIN rail or other equipment. It also includes mounting plate attachment points with brass-inserted molding to help support heavier internal components.
