Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 160x260x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-162613
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-162613 is a 160×260×130 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-162613Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×260×130 mm (6.30×10.24×5.12 in)
Mounting plate dimension M1 × M2
129 × 229 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1525 G (Plastic, G type), 1525 P (Plastic, P type), 1525 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

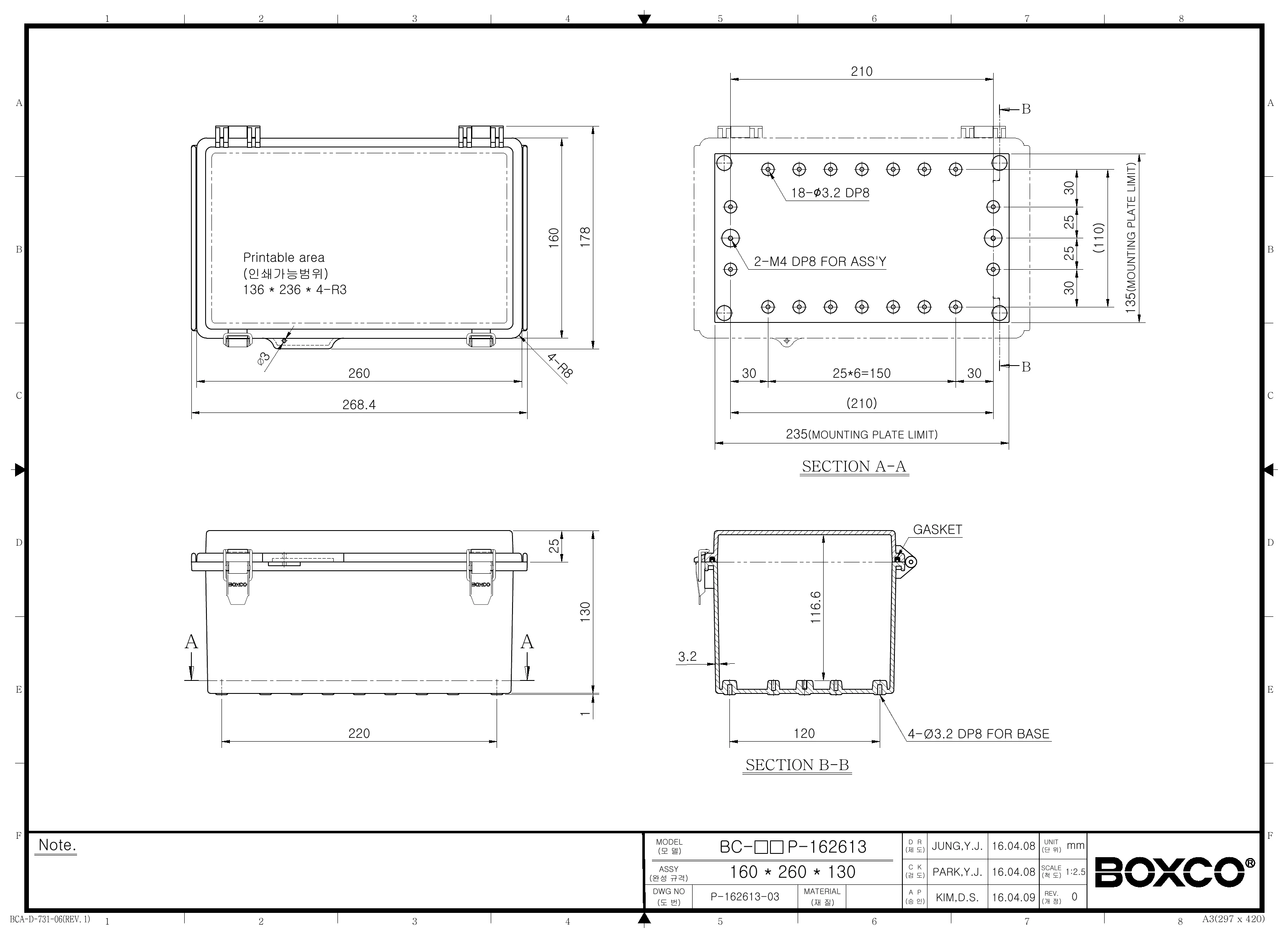

BC-ATP-162613 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

Is this enclosure suitable for outdoor industrial use?

This Boxco P-Series enclosure is built for outdoor exposure with an IP67 rating, ultraviolet stabilizer, and roof protection at both ends to reduce water and dust ingress around the cover area. Its ABS construction and injected gasket are intended to support waterproof and dust-proof performance in demanding environments.

What size equipment can this enclosure accommodate?

This model measures 6.30 x 10.24 x 5.12 inches (160 x 260 x 130 mm), so it is better suited to larger control, monitoring, or protection assemblies than compact junction-style housings. Buyers comparing sizes should use these external dimensions along with their required internal layout and mounting clearances.

What makes this enclosure different from a basic plastic box with a screw cover?

This version uses a transparent cover with a molded hinge and latch design, which makes it different from simpler enclosures that rely only on removable screw-fastened lids. It also adds features such as pre-molded mounting screw nuts, roof protection, and a stainless steel latch main part for a more robust industrial enclosure design.

Can this enclosure be used for sensitive electronic equipment?

Yes, the product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model more suitable for electronics-related applications than a generic enclosure with no stated anti-static property.

What environmental and durability ratings does this model have?

This enclosure is rated IP67 for ingress protection and IK08 for impact resistance. The listed operating temperature range is -40 degrees C to 70 degrees C, and the housing is made from high impact resistant ABS.

Does this enclosure support internal mounting hardware or panels?

Yes, the enclosure includes pre-molded mounting screw nuts for securing items such as DIN rail or other equipment, and it also has internal mounting plate attachment points. Boxco also notes brass inserted injection molding to help secure an internal mounting plate when heavier equipment is installed inside.
