Boxco

Boxco P-Series 170x220x110mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-172211
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-172211 is an ABS enclosure (220×170×110 mm) from Boxco.

Specifications

BC-ATP-172211Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H
220×170×110 mm (8.66×6.69×4.33 in)

Material

Material
ABS
Base colour
Grey
Cover
Transparent

Protection & environment

IP rating
IP67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Use
Indoor
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

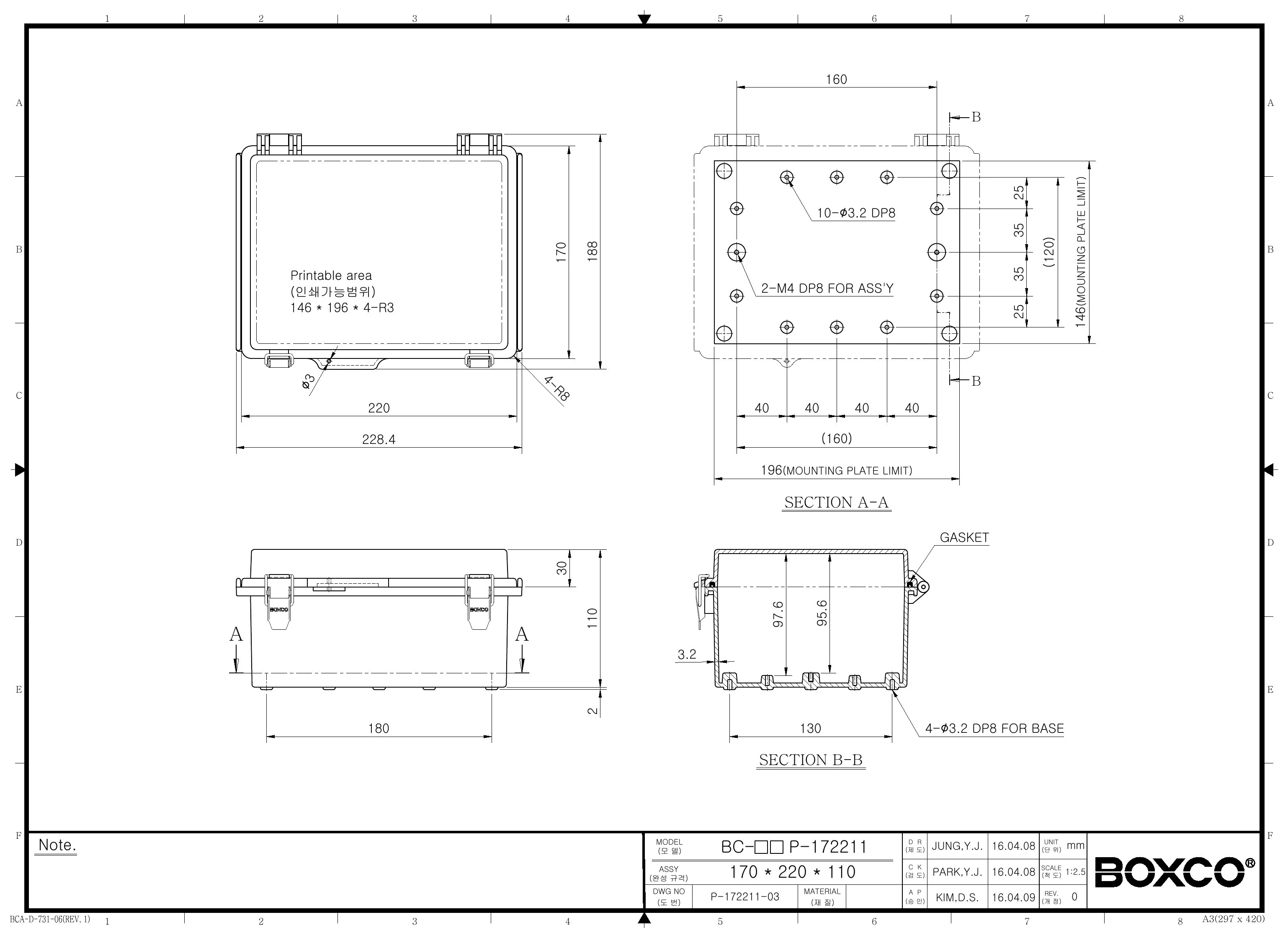

Technical drawings

BC-ATP-172211 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This enclosure is designed for protecting electronic equipment in industrial and commercial environments where dust, water, and impact resistance matter. Its transparent cover also makes it useful when components need to remain visible without opening the box.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use and reduce visible color change over time. Its IP67 rating and roof-protection design also support use in exposed environments where water and dust protection are important.

What does the IP67 and IK08 rating mean for this model?

This model is rated IP67 for protection against dust and water ingress, making it appropriate for demanding environments. It is also rated IK08 for impact resistance, which supports use where the enclosure may be exposed to external mechanical contact.

What material is this enclosure made from, and why does that matter?

This model is made from ABS and includes a transparent cover. The description also notes high impact resistance and anti-static material use, which helps protect sensitive electronic instruments from static electricity and supports durability during processing and use.

Does this enclosure have features for mounting internal components?

Yes. It includes pre-molded mounting screw nuts for securing accessories such as a DIN rail or other internal equipment. It also has mounting plate attachment points with brass inserted injection molding to help support heavier installed components.

How does the hinged cover design compare with a standard screw-cover enclosure?

This model uses a molded hinge and latch-type cover, which can make repeated access more convenient than fully removable covers. The hinge is integrated into the enclosure, and the latch uses a stainless steel main part for added strength.

What size and operating temperature range does this enclosure offer?

This Boxco P-Series enclosure measures 6.69 x 8.66 x 4.33 inches (170 x 220 x 110 mm). Its stated operating temperature range is -40 degrees C to 70 degrees C, which supports use across a wide range of conditions.
