Boxco P-Series 200x300x150mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-203015
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-203015 is a 200×300×150 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-203015Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×300×150 mm (7.87×11.81×5.91 in)
Mounting plate dimension M1 × M2
167 × 267 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2030 P (Plastic, P type), 2030 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

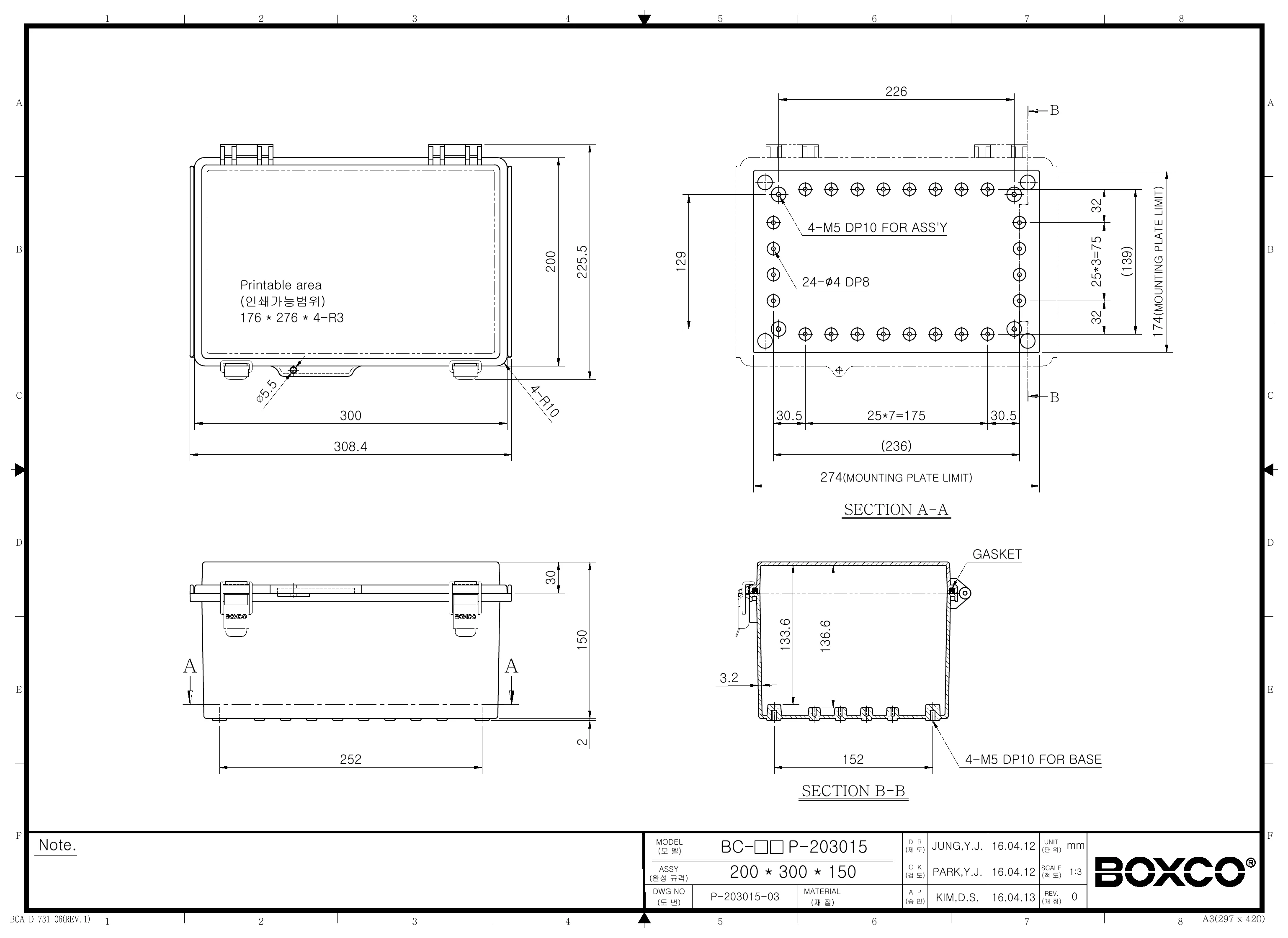

Technical drawings

BC-AGP-203015 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series 200 x 300 x 150 mm enclosure suited for?

This enclosure is suited for protecting electronic and control components in industrial, commercial, and outdoor environments where dust and water resistance matter. Its ABS construction, molded hinge and latch design, and IP67 rating make it a practical choice for equipment that needs durable non-metallic housing.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use and reduce visible color change over time. The design also includes roof protection features intended to help resist water penetration and dust ingress when the cover is opened and closed.

What protection ratings does this model have?

This model is rated IP67 and IK08. That means it is built for strong protection against dust and water ingress as well as solid impact resistance for demanding environments.

What material is this enclosure made from, and why does that matter?

This model is made from ABS and uses high impact resistant material for improved durability. Boxco also notes that anti-static material is used to help protect sensitive electronic instruments from static electricity.

What are the dimensions of this enclosure?

The enclosure measures 7.87 x 11.81 x 5.91 inches, which corresponds to 200 x 300 x 150 mm. This size can be useful when you need a larger enclosure for internal components while keeping a compact wall- or equipment-mounted footprint.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 °C to 70 °C. That range makes it suitable for many indoor and outdoor industrial environments where equipment may be exposed to cold or heat.

Does this enclosure support mounting internal equipment?

Yes. Boxco lists pre-molded mounting screw nuts for securing DIN rail or other equipment, and it also includes mounting plate attachment points with brass inserted injection molding for handling heavier internal equipment. These features support more robust internal component layouts than a plain empty box.
