Boxco

Boxco P-Series 200x300x150mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-203015
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATP-203015 is a 200×300×150 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-203015Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×300×150 mm (7.87×11.81×5.91 in)
Mounting plate dimension M1 × M2
167 × 267 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
2030 P (Plastic, P type), 2030 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

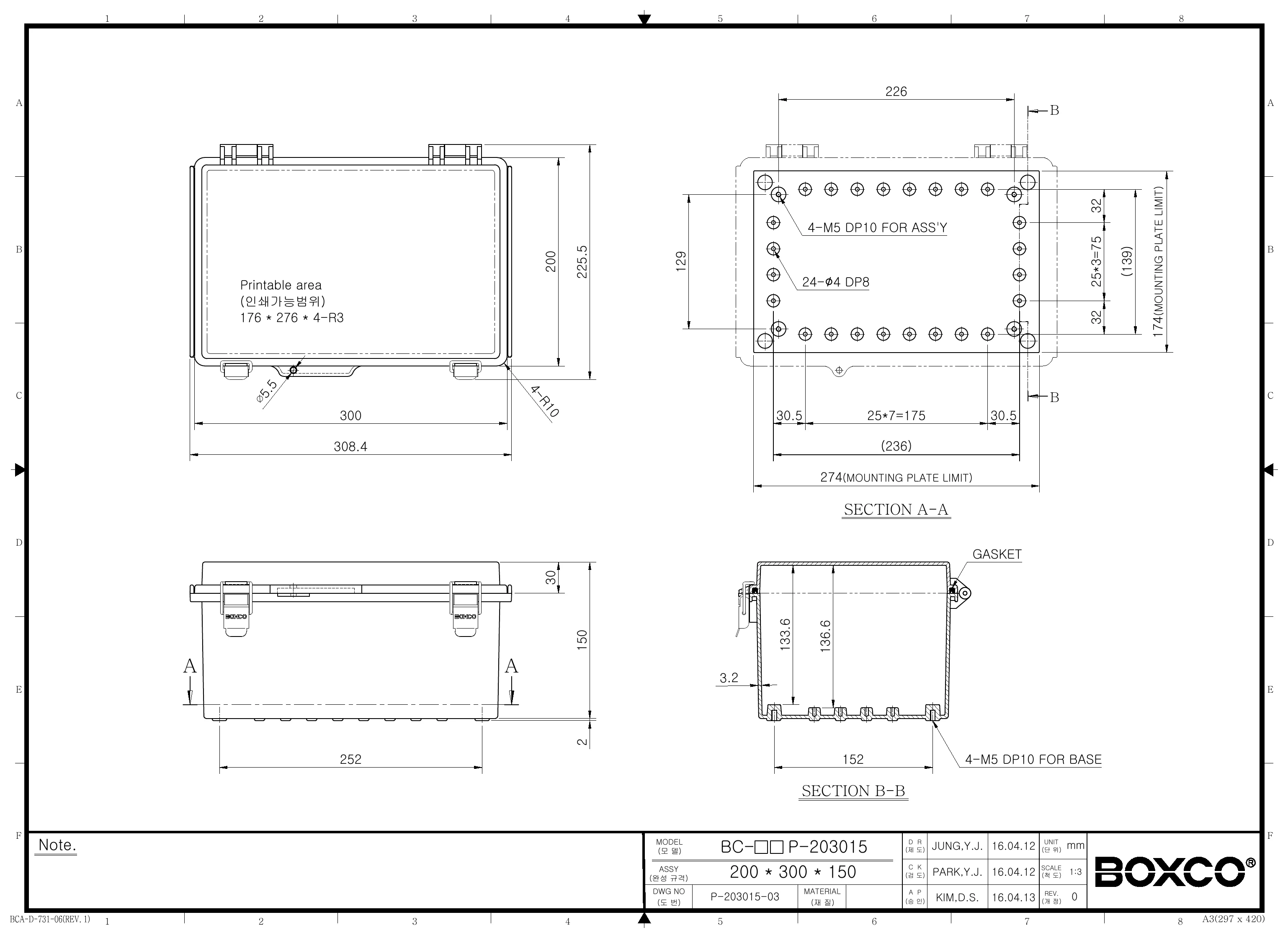

Technical drawings

BC-ATP-203015 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-ATP-203015 plastic enclosure suited for?

This enclosure is suited for protecting industrial and commercial electrical or electronic components that need a sealed non-metallic housing. Its transparent cover makes it useful when equipment status needs to be viewed without opening the box, and its molded hinge and latch design supports repeated access in service environments.

What are the key size and material specifications of this enclosure?

The BC-ATP-203015 measures 7.87 x 11.81 x 5.91 inches, which corresponds to 200 x 300 x 150 mm. It is made from ABS plastic and includes a transparent cover, with a listed product weight of 0.993 kg.

How well does this enclosure protect against dust, water, and impact?

This model is rated IP67, indicating strong protection against dust ingress and temporary water exposure. It also carries an IK08 impact rating, making it suitable for applications where the enclosure may be exposed to mechanical impact.

Can this enclosure be used outdoors?

Yes, the product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use. The design also includes roof protection features at both ends to help reduce water penetration in outdoor environments.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 °C to 70 °C. That makes it suitable for a wide range of indoor and outdoor industrial environments within those limits.

What design features distinguish this Boxco P-Series enclosure from a basic plastic enclosure?

This model includes a transparent cover, integrated molded hinge, latch-style closure, gasket sealing, and pre-molded mounting screw nuts. The product description also highlights brass-inserted mounting plate attachment points and stainless steel components in the latch and hinge bearing for improved durability.
