Boxco P-Series 200x300x180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-203018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-203018 is a 200×300×180 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-203018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×300×180 mm (7.87×11.81×7.09 in)
Mounting plate dimension M1 × M2
167 × 267 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
2030 P (Plastic, P type), 2030 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

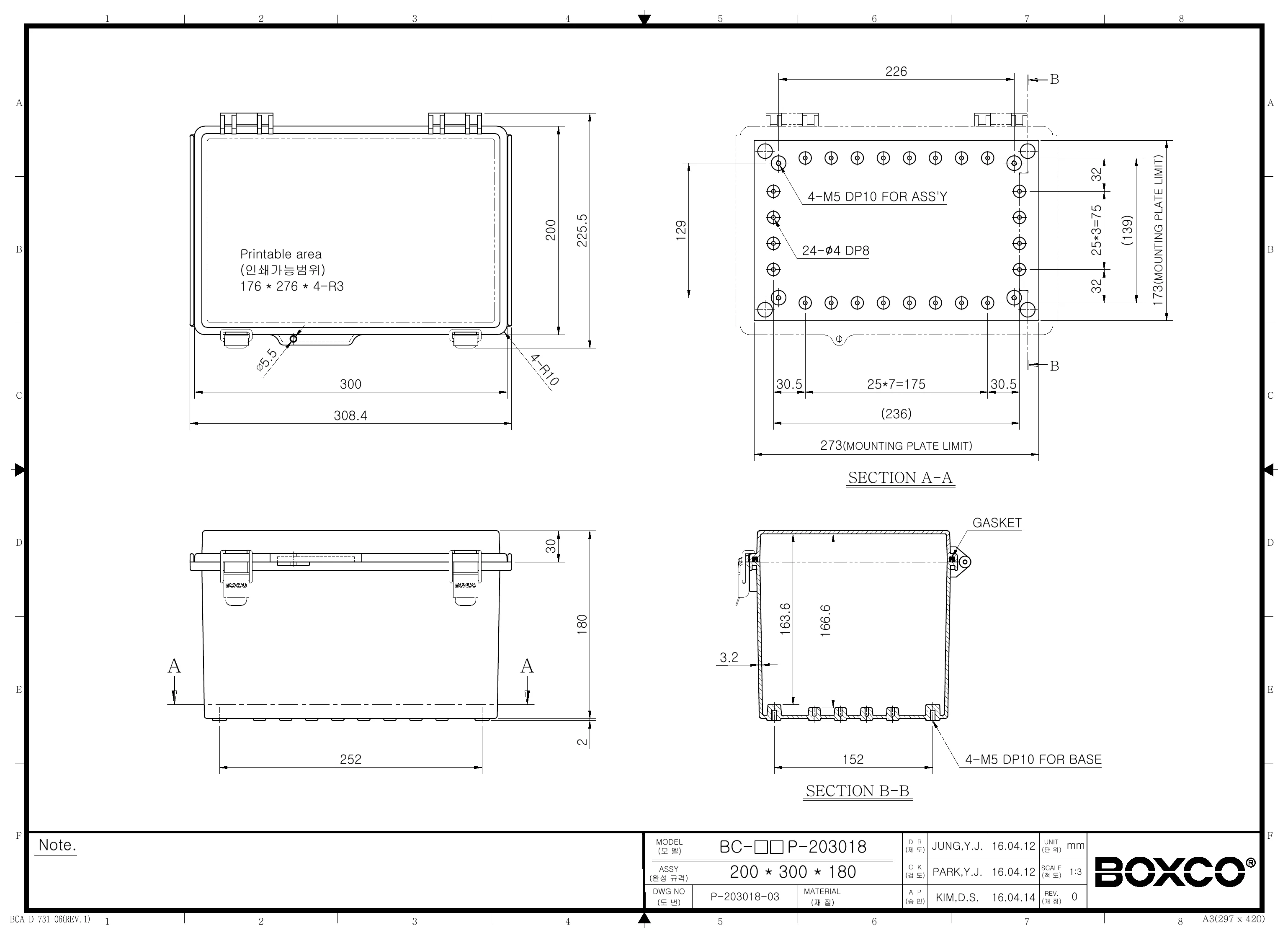

Technical drawings

BC-ATP-203018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-ATP-203018 enclosure best suited for?

This enclosure is suited for protecting industrial and commercial electrical or electronic equipment that needs a sealed non-metallic housing. Its IP67 rating, IK08 impact resistance, outdoor-focused UV stabilizer, and anti-static ABS construction make it a practical choice for demanding indoor or outdoor environments.

Is this plastic enclosure suitable for outdoor use?

Yes. Boxco states that this P-Series enclosure includes an ultraviolet stabilizer to help protect it during outdoor use and reduce visible color change over time. The design also includes roof protection features and a gasket intended to support water and dust resistance.

What protection ratings does this enclosure have?

The BC-ATP-203018 is rated IP67 for dust and water resistance and IK08 for impact resistance. These ratings indicate it is built for environments where sealing and mechanical durability are important considerations.

What are the dimensions and material of this enclosure?

This model measures 7.87 x 11.81 x 7.09 inches, which corresponds to 200 x 300 x 180 mm. It is made from ABS plastic and includes a transparent cover with a molded hinge and latch-type closure.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40 degrees C to 70 degrees C. That range supports use in both cold and warm industrial environments where enclosure performance across temperature swings matters.

Does this enclosure support mounting internal components?

Yes. The product description notes pre-molded mounting screw nuts for securing DIN rail or other equipment, along with mounting plate attachment points designed to hold an internal mounting plate tightly. These features help support organized equipment placement inside the enclosure.

How does this model differ from a basic non-hinged enclosure box?

This version is designed with an integrated molded hinge, latch-type closure, transparent cover, and outdoor-oriented protective features. Compared with a more basic enclosure, it offers easier repeat access to the interior and added design elements intended to improve sealing, durability, and visibility.
