Boxco

Boxco P-Series 210x210x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-212113
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-212113 is a 210×210×130 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-212113Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
210×210×130 mm (8.27×8.27×5.12 in)
Mounting plate dimension M1 × M2
179 × 179 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
2020 G (Plastic, G type), 2020 P (Plastic, P type), 2020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

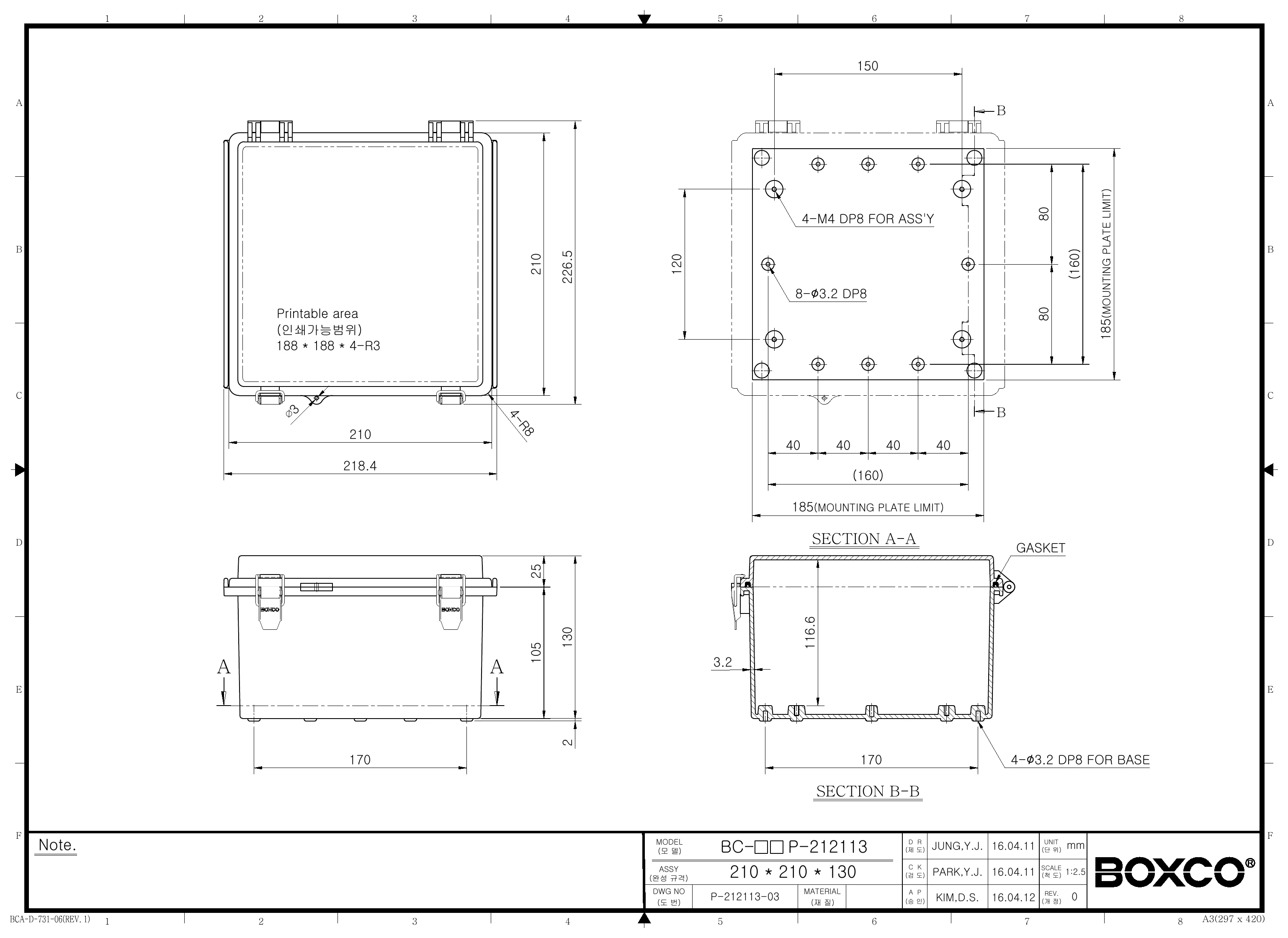

Technical drawings

BC-ATP-212113 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure suited for?

This enclosure is suited for protecting electronic components in industrial, commercial, and outdoor equipment housings where a sealed plastic box is needed. Its ABS body, transparent cover, and molded hinge and latch design make it a practical choice when internal components need visibility without opening the enclosure.

Is this enclosure suitable for outdoor environments?

Yes. This model is described with an ultraviolet stabilizer for outdoor use, and the housing design includes roof protection features intended to help resist water and dust entry during cover operation. Its IP67 rating also indicates strong protection against dust and water ingress when properly closed.

What are the key protection ratings for this enclosure?

This model is rated IP67 and IK08. That means it is designed for a high level of dust and water resistance and also offers a defined level of impact protection for demanding enclosure applications.

What material is this enclosure made from?

This Boxco P-Series model is made from ABS plastic and includes a transparent cover. The product description also notes anti-static material usage and high impact resistance, which supports use around sensitive electronic instruments and helps reduce breakage during processing.

What size is this enclosure?

This enclosure measures 8.27 x 8.27 x 5.12 inches, which is 210 x 210 x 130 mm. That size provides a mid-sized enclosure format for housing internal equipment while still remaining compact enough for many panel, machine, or field-use applications.

Does this enclosure support mounting internal components?

Yes. The product description states that it includes pre-molded mounting screw nuts for securing DIN rail or other equipment, and it also has internal mounting plate attachment points. Those features make it easier to support heavier internal hardware inside the enclosure.

How does this model differ from a basic non-hinged enclosure box?

This model includes a molded integrated hinge, latch-style closure, transparent cover, and sealing-focused design details such as roof protection and a precision-injected gasket. Compared with a simpler box, it is differentiated by easier repeat access, visibility into the enclosure, and stronger positioning for outdoor and industrial protection needs.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C to 70 degrees C. That range makes it suitable for environments with both low and elevated temperatures, provided the rest of the application is designed within those same operating limits.
