Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 250x350x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-253518
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-253518 is a 250×350×180 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-253518Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
250×350×180 mm (9.84×13.78×7.09 in)
Mounting plate dimension M1 × M2
216 × 316 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2535 P (Plastic, P type), 2535 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

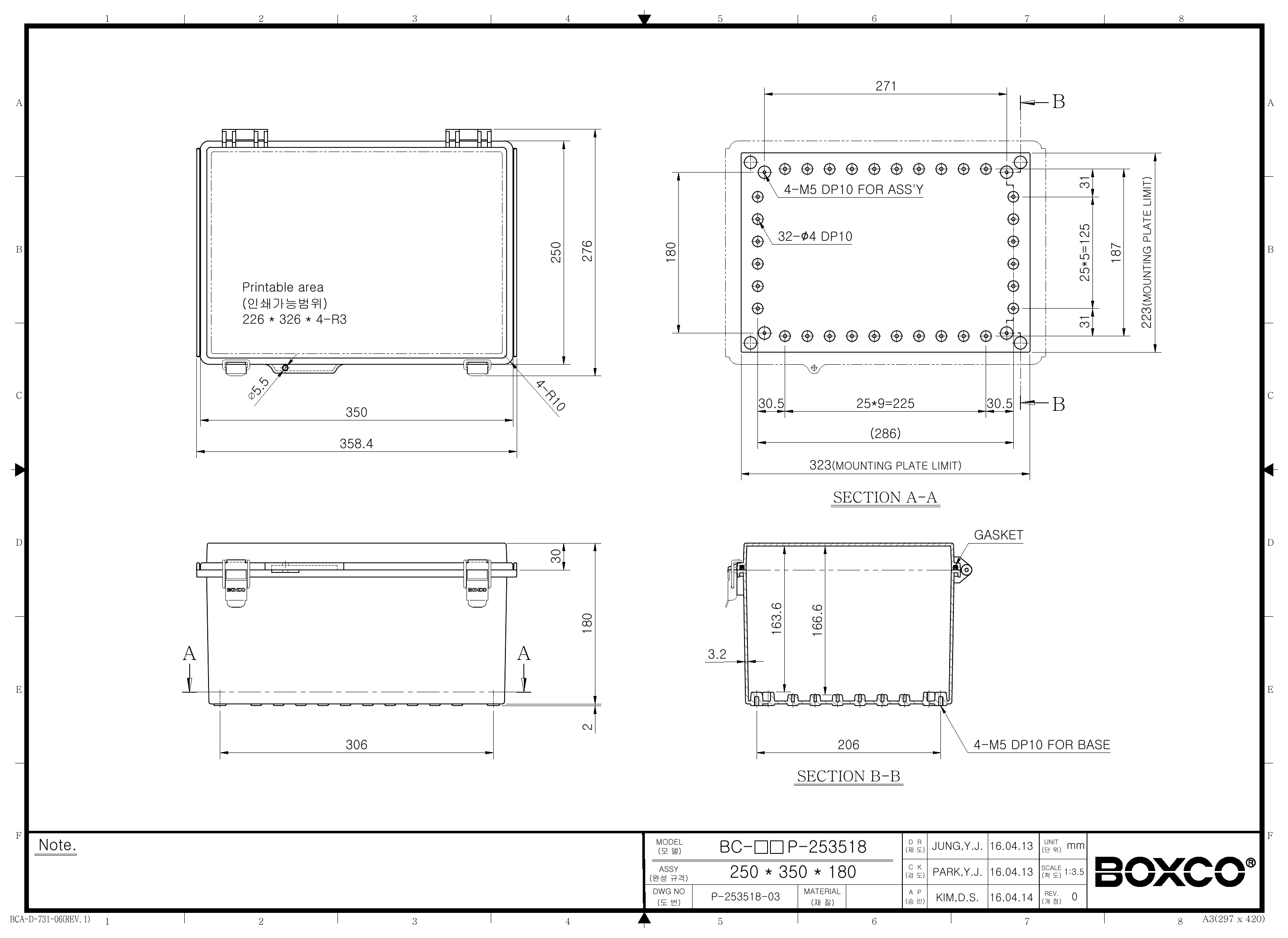

Technical drawings

BC-AGP-253518 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-AGP-253518 enclosure suited for?

This model is intended for protecting electrical or electronic equipment in industrial and outdoor environments where a sealed plastic enclosure is needed. Its IP67 rating, IK08 impact resistance, UV-stabilized material, and anti-static properties make it a practical choice for control, monitoring, and instrument housing applications.

Is the BC-AGP-253518 suitable for outdoor use?

Yes. Boxco states that ultraviolet stabilizer is added to the P-Series to support outdoor usage and reduce visible color change over time. The enclosure also includes roof protection features and an IP67 rating for strong resistance to water and dust ingress.

What are the key specifications of this enclosure?

The BC-AGP-253518 measures 9.84 x 13.78 x 7.09 inches, or 250 x 350 x 180 mm, and weighs 1.416 kg. It is made from ABS, uses a grey cover, carries IP67 and IK08 ratings, and is specified for operation from -40 degrees C to 70 degrees C.

How does the hinge and latch design help on this model?

This enclosure uses an integrated molded hinge with a stainless steel bearing to improve service life. The latch design uses a stainless steel main part, which Boxco describes as strong and suitable for repeated access to the enclosure.

Can this enclosure support internal mounting hardware or equipment plates?

Yes. Boxco includes pre-molded mounting screw nuts that can be used for DIN rail or other internal equipment mounting, and it also provides mounting plate attachment points with brass inserted injection molding. That design helps the enclosure support heavier internal components more securely than a plain empty box.

Does this model help protect sensitive electronic equipment from static electricity?

Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this enclosure a better fit for applications where static control matters than a standard non-specified plastic box.

What environmental protection features are built into the BC-AGP-253518?

Beyond its IP67 sealing performance, this model includes a robot-injected gasket for waterproof and dust-proof performance and roof protection at both ends to reduce water and dust penetration during outdoor use and cover operation. Its ABS body is also described as high impact resistant to help prevent breakage during processing.
