1 9

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 250x350x180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-253518
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-253518 is a 250×350×180 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-253518Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
250×350×180 mm (9.84×13.78×7.09 in)
Mounting plate dimension M1 × M2
216 × 316 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
2535 P (Plastic, P type), 2535 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

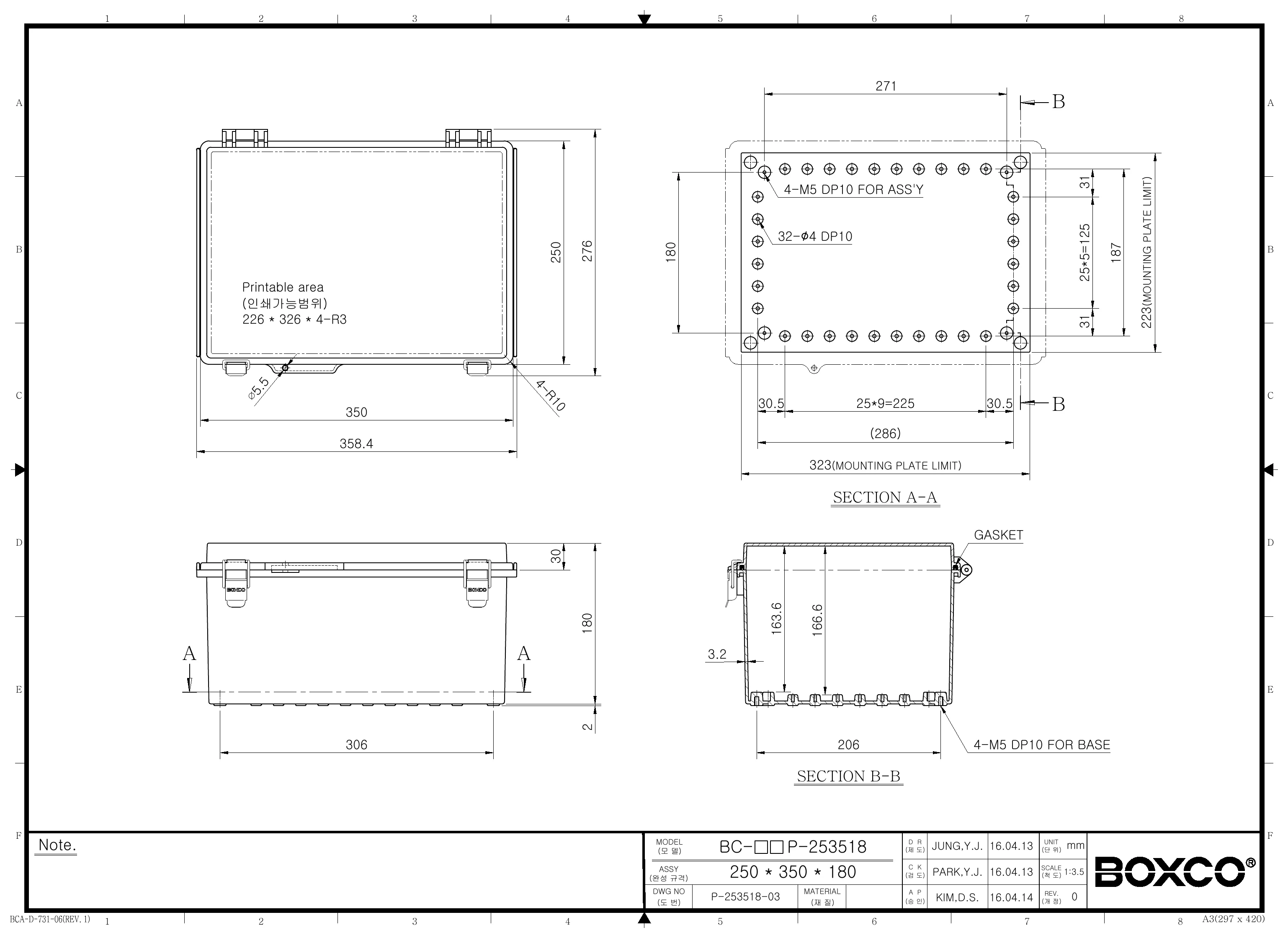

Technical drawings

BC-ATP-253518 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series plastic enclosure best suited for?

This enclosure is a good fit for protecting electronic controls, monitoring components, and other sensitive equipment in industrial or commercial environments. Its IP67 sealing, IK08 impact rating, outdoor UV-stabilized ABS construction, and transparent cover make it well suited for applications where contents need protection and visual inspection without opening the box.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that an ultraviolet stabilizer is added to help protect the enclosure for outdoor usage and reduce visible color change over time. The design also includes roof protection features and a precision-injected gasket to support water and dust resistance.

What protection ratings does this model have?

This model is rated IP67 for resistance to dust and water ingress and IK08 for impact resistance. It is made from high-impact ABS and is designed to handle demanding environments where enclosure durability matters.

Does the transparent cover affect how this enclosure is used?

The transparent cover is useful when you need to visually check indicators, displays, or internal components without opening the enclosure. That can help reduce unnecessary exposure of the contents to dust or moisture during routine inspection.

What are the size and operating temperature range for this enclosure?

This Boxco P-Series model measures 9.84 x 13.78 x 7.09 inches, which corresponds to 250 x 350 x 180 mm. Its stated operating temperature range is -40 °C to 70 °C, supporting use across both low- and high-temperature environments within that range.

How does this hinged enclosure differ from a basic non-hinged box?

This model uses an integrated molded hinge and latch-style cover, which is beneficial when the enclosure needs to be opened repeatedly for inspection or service access. It also includes stainless steel elements in the latch and hinge bearing area to improve strength and service life.

Is this enclosure designed to support internal mounting hardware or heavier internal components?

Yes. The product description states that it includes pre-molded mounting screw nuts and dedicated attachment points for an internal mounting plate. Boxco also notes that the mounting plate can be fixed tightly onto brass inserted injection molding to help handle heavier equipment installed inside the enclosure.
