Boxco

Boxco P-Series 280x280x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-282813
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATP-282813 is a 280×280×130 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-282813Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×280×130 mm (11.02×11.02×5.12 in)
Mounting plate dimension M1 × M2
248 × 248 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
2828 P (Plastic, P type), 2828 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

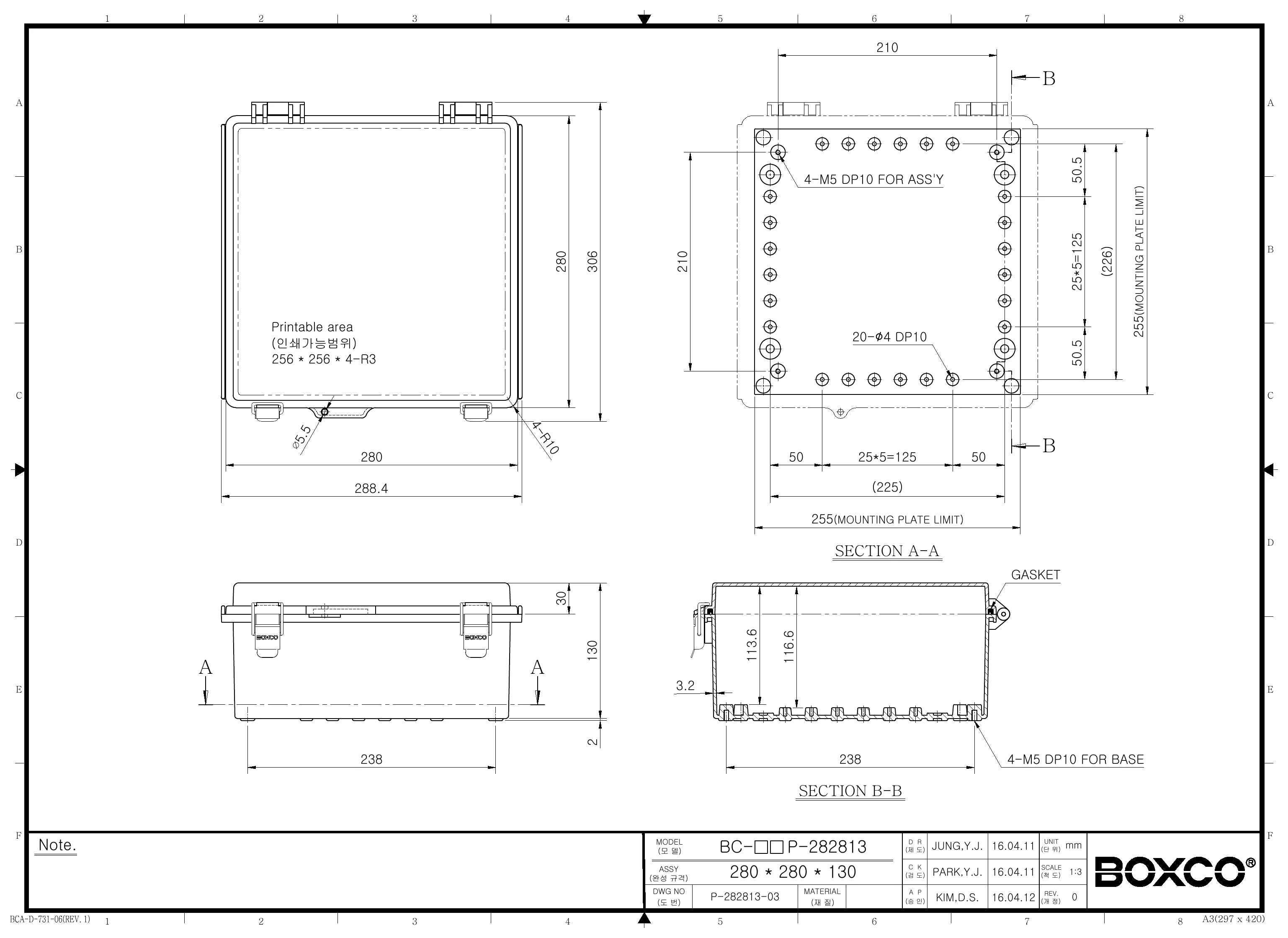

Technical drawings

BC-ATP-282813 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This model is suited for protecting electronic controls, instrumentation, and other enclosed components that need a sealed non-metallic housing. Its anti-static material, transparent cover, and molded hinge-and-latch design make it a practical choice when you want both protection and quick visual inspection.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, and the enclosure is rated IP67 for strong resistance to dust and water ingress. The roof protection design also helps reduce water penetration when the enclosure is used outdoors.

What are the main specifications of this enclosure?

This Boxco P-Series enclosure measures 11.02 x 11.02 x 5.12 inches (280 x 280 x 130 mm). It is made from ABS, uses a transparent cover, carries IP67 and IK08 ratings, weighs 1.188 kg, and has a stated operating temperature range of -40 degrees C to 70 degrees C.

What makes this model different from a basic plastic enclosure?

This version combines several higher-spec features, including a transparent cover, molded hinge, latch-type closure, IP67 sealing, and IK08 impact resistance. It also includes design details such as pre-molded mounting screw nuts, roof protection, a CNC-injected gasket, and an integrated hinge with a stainless steel bearing.

Can this enclosure support internal equipment mounting?

Yes. The product description states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also has mounting plate attachment points with brass inserted injection molding. That design helps support heavier internal equipment more securely than a plain empty box.

Why choose the transparent-cover version of this enclosure?

The transparent cover allows contents to be checked visually without opening the enclosure, which can be useful for status viewing or routine inspection. On this model, that visibility is paired with the same molded hinge-and-latch format, ABS construction, and IP67 protection as the rest of the enclosure design.
