Boxco P-Series 300x300x150mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-303015
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATP-303015 is a 300×300×150 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-303015Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
300×300×150 mm (11.81×11.81×5.91 in)
Mounting plate dimension M1 × M2
262 × 262 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
3030 P (Plastic, P type), 3030 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

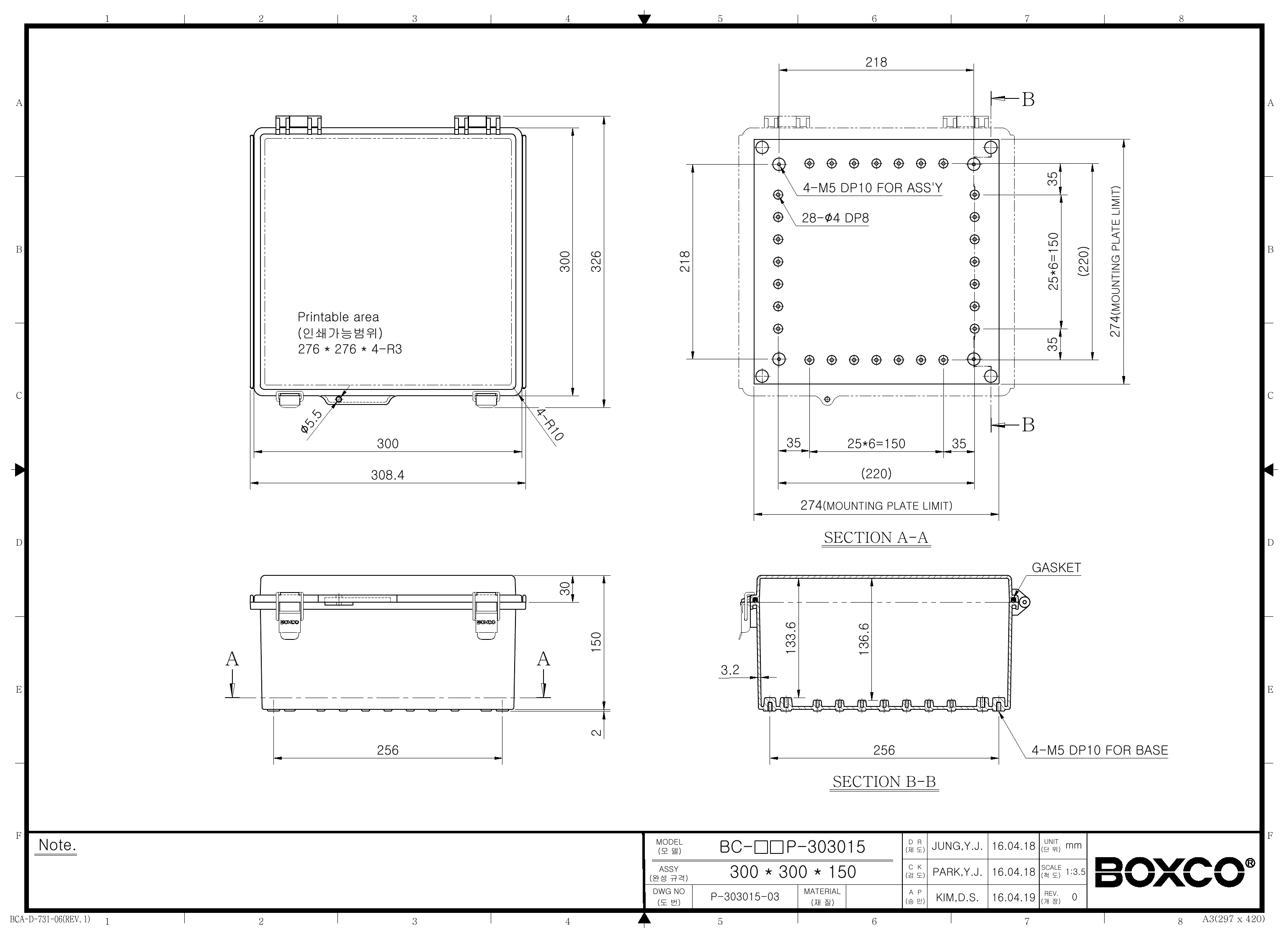

Technical drawings

BC-ATP-303015 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key specifications of the Boxco P-Series BC-ATP-303015 enclosure?

This model measures 11.81 x 11.81 x 5.91 inches, which corresponds to 300 x 300 x 150 mm. It is an ABS plastic enclosure with a transparent cover, molded hinge and latch design, IP67 ingress protection, IK08 impact rating, and a 1-year warranty.

Is this enclosure suitable for outdoor or washdown-prone environments?

It is built for demanding indoor or outdoor use where strong dust and water resistance are required, with an IP67 rating and UV stabilizer added for outdoor exposure. The product description also notes roof protection features and a precision-injected gasket to help maintain waterproof and dust-proof performance.

What kind of equipment is this plastic enclosure typically used for?

This enclosure is intended for protecting electronic instruments and control components that need a sealed, impact-resistant housing. Its anti-static material, transparent cover, and internal mounting attachment points make it relevant for industrial and commercial applications where equipment visibility and enclosure durability matter.

How durable is the hinge and latch system on this model?

The enclosure uses an integrated plastic hinge with a stainless steel bearing to improve service life. Its draw latch uses stainless steel in the main latch body, which the manufacturer highlights for added strength.

What temperature range can the BC-ATP-303015 handle?

The specified operating temperature range is -40 °C to 70 °C. That makes it suitable for environments with both low-temperature exposure and elevated ambient heat within that range.

Does this enclosure support internal mounting hardware or plates?

Yes. The product description states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also has mounting plate attachment points with brass-inserted injection molding for securing heavier internal equipment.
