Boxco

Boxco P-Series 300x400x150mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-304015
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-304015 is a 300×400×150 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-304015Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
300×400×150 mm (11.81×15.75×5.91 in)
Mounting plate dimension M1 × M2
264 × 364 mm

Material

Material
ABS
Cover
Grey
Mounting plates
3040 P (Plastic, P type), 3040 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

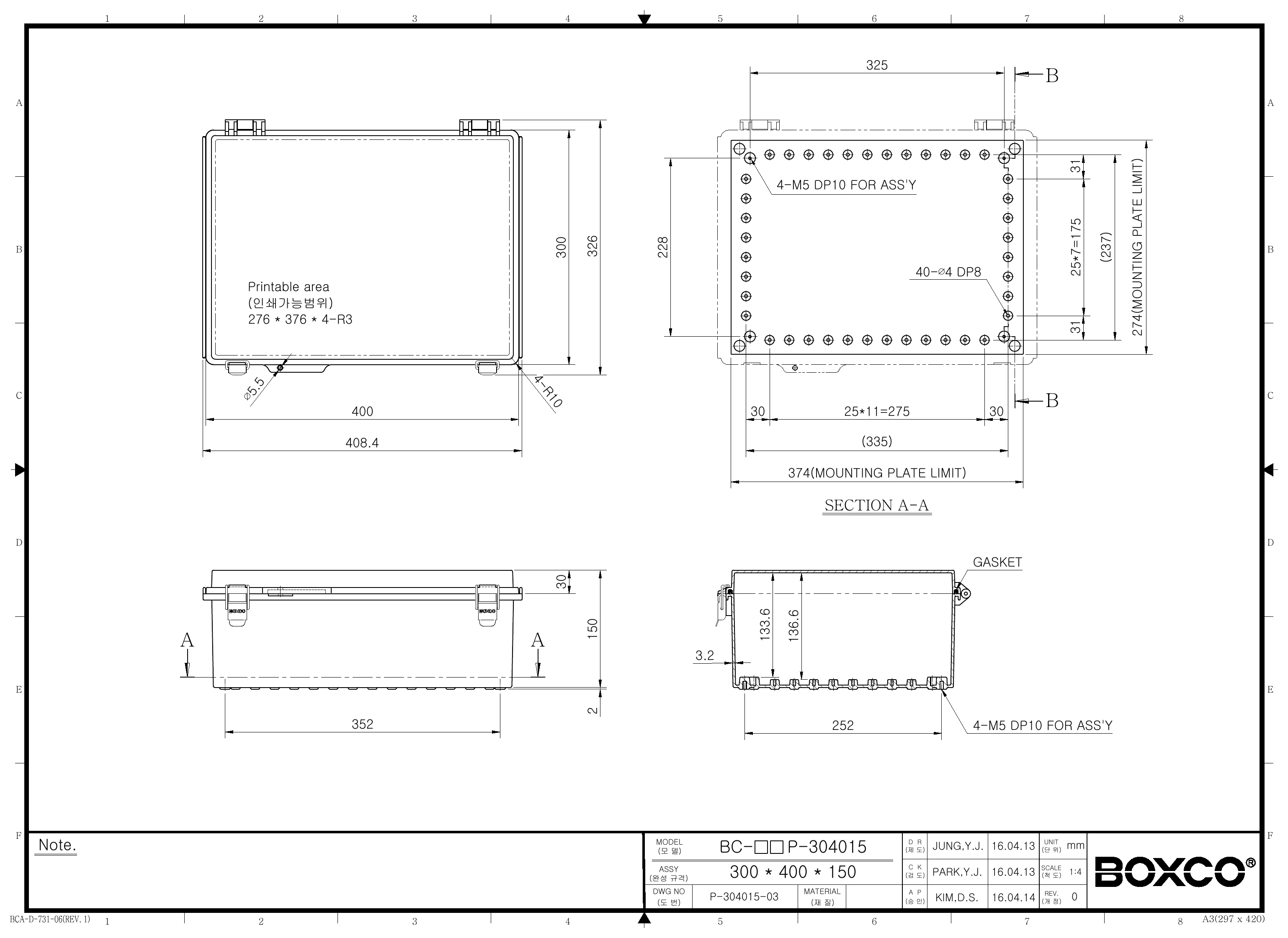

Technical drawings

BC-AGP-304015 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco P-Series BC-AGP-304015 enclosure?

This model measures 11.81 x 15.75 x 5.91 inches (300 x 400 x 150 mm) and is made from ABS with a grey cover. It is rated IP67 for dust and water resistance and IK08 for impact resistance. The enclosure weight is 1.61 kg.

Is the BC-AGP-304015 suitable for outdoor use?

Yes, this enclosure is designed for outdoor use. The P-Series includes an ultraviolet stabilizer to help reduce color change over long-term exposure, and its roof-protection design helps limit water and dust penetration when the cover is opened and closed. Its IP67 rating also supports use in demanding environments.

What kind of applications is this plastic enclosure intended for?

This enclosure is a good fit for protecting industrial and commercial electrical or electronic equipment that needs a sealed non-metallic housing. Its anti-static material is intended to help protect sensitive electronic instruments, while the high-impact ABS construction supports use in tougher service conditions. The molded hinge and latch design also make it suitable for enclosures that require repeated access.

What temperature range can this enclosure handle?

The BC-AGP-304015 is specified for use from -40 °C to 70 °C. That range makes it suitable for many indoor and outdoor industrial environments. Buyers should still confirm that the full application stays within those limits.

Does this enclosure support internal mounting hardware or plates?

Yes, the enclosure includes pre-molded mounting screw nuts for securing DIN rail or other equipment inside the box. It also has mounting plate attachment points with brass inserted injection molding to support a tightly fixed internal mounting plate. These features are intended to help accommodate heavier internal equipment.

What distinguishes this Boxco P-Series enclosure from a basic plastic box?

This model combines multiple protective features beyond a basic utility enclosure, including IP67 sealing, IK08 impact resistance, UV stabilization, anti-static material, and a gasket formed for strong waterproof and dust-proof performance. It also includes integrated molded hinges, a stainless steel bearing in the hinge, and a stainless steel main latch component. Those details make it better suited for more demanding commercial and industrial use.
