Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 300x400x180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-304018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-304018 is a 300×400×180 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-304018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
300×400×180 mm (11.81×15.75×7.09 in)
Mounting plate dimension M1 × M2
264 × 364 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
3040 P (Plastic, P type), 3040 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

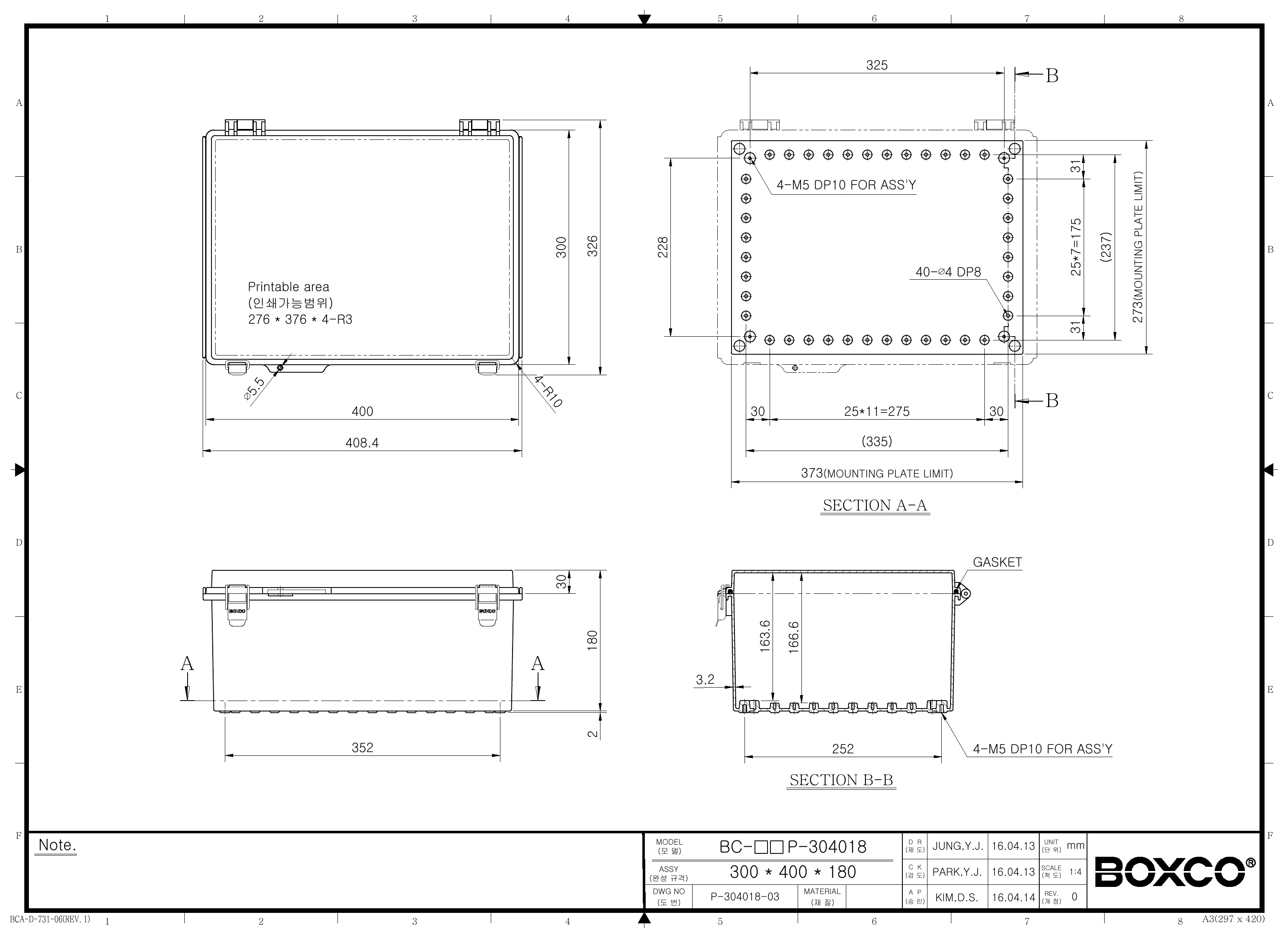

Technical drawings

BC-ATP-304018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure suited for?

This model is intended for protecting electronic equipment in industrial and commercial environments where a sealed plastic enclosure is needed. Its transparent cover, molded hinge, and latch design make it practical for applications that need enclosed visibility and repeated access.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure in outdoor use and reduce visible color change over time. Its IP67 rating and roof protection design also support resistance to water and dust exposure.

What are the key specifications of this enclosure?

This Boxco P-Series enclosure measures 11.81 x 15.75 x 7.09 inches, which is 300 x 400 x 180 mm. It is made from ABS, has a transparent cover, carries IP67 and IK08 ratings, weighs 1.81 kg, and is rated for temperatures from -40 C to 70 C.

How durable is the latch and hinge design on this model?

This enclosure uses a molded hinge and latch type cover design. The latch main part is made of stainless steel for strength, and the integrated plastic hinge uses a stainless steel bearing to help increase service life.

Can this enclosure help protect sensitive electronics from static and impact?

Yes. The description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. It also notes the enclosure is made from high impact resistant material to better withstand external impact and reduce breakage during processing.

Does this enclosure support internal mounting accessories or equipment plates?

Yes. The product description says it includes pre-molded mounting screw nuts that can be used for DIN rail or other equipment, and it also has mounting plate attachment points. These features support secure internal equipment mounting within the enclosure.
