Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 350x350x150mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-353515
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-353515 is a 350×350×150 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-353515Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
350×350×150 mm (13.78×13.78×5.91 in)
Mounting plate dimension M1 × M2
314 × 314 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
3535 P (Plastic, P type), 3535 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

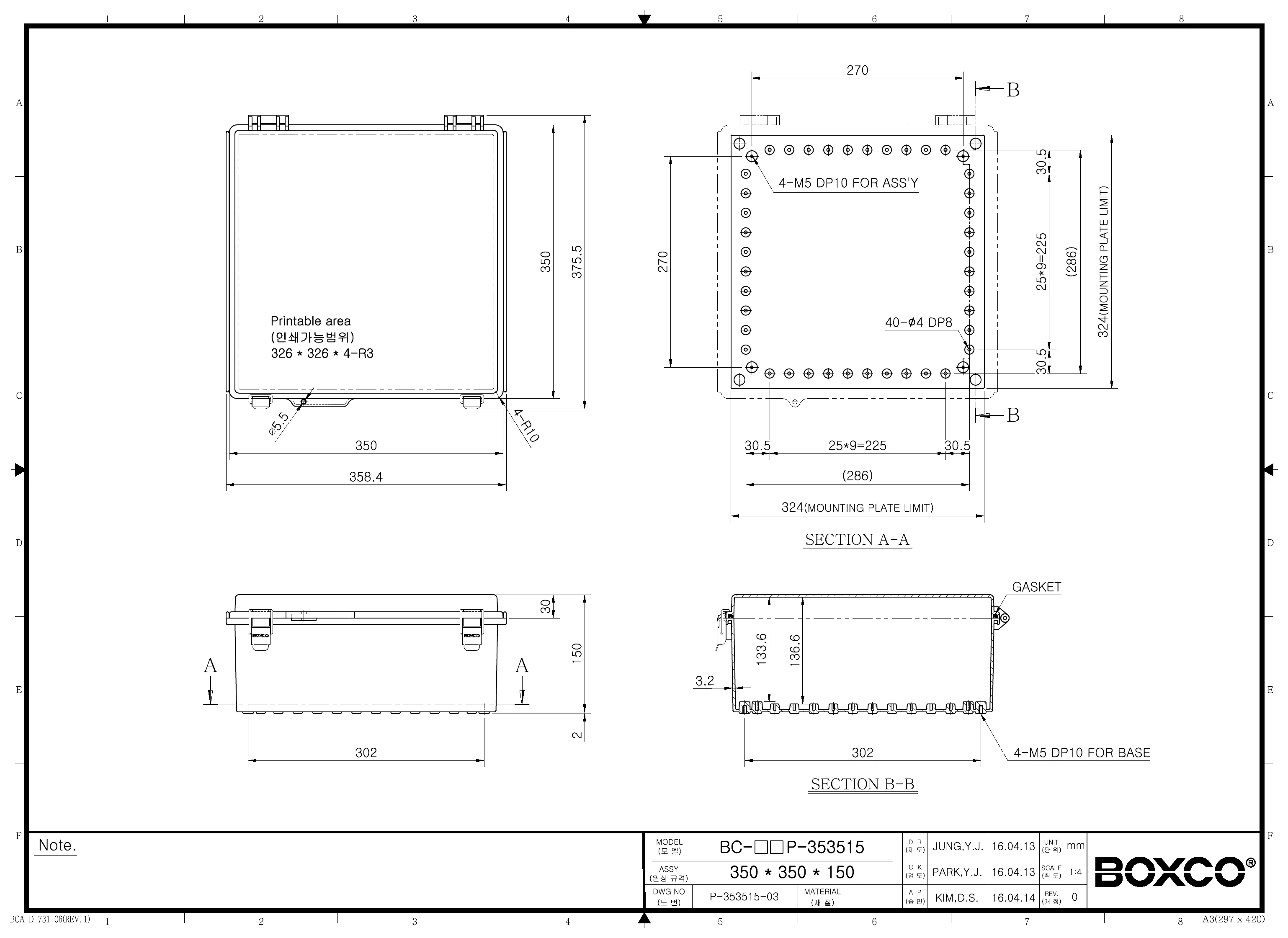

Technical drawings

BC-ATP-353515 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco P-Series BC-ATP-353515 enclosure?

This model measures 13.78 x 13.78 x 5.91 inches (350 x 350 x 150 mm) and is made from ABS plastic with a transparent cover. It is rated IP67 for dust and water protection and IK08 for impact resistance. The enclosure weight is 1.74 kg, and its operating temperature range is -40°C to 70°C.

Is this plastic enclosure suitable for outdoor environments?

Yes, this enclosure is designed for outdoor use. The ABS material includes an ultraviolet stabilizer to help reduce color change over time, and the P-Series roof protection helps resist water and dust intrusion during cover operation. Its IP67 rating also supports use in demanding indoor and outdoor environments.

What kinds of applications is this enclosure commonly used for?

This enclosure is suited for protecting electrical and electronic components that need strong environmental protection in industrial or commercial settings. Its anti-static material makes it a practical choice for housing sensitive electronic instruments. The large format also supports applications that need more internal space for mounted equipment.

What makes this model different from a basic plastic enclosure box?

This model combines several higher-end protective features, including IP67 sealing, IK08 impact resistance, a transparent cover, and a molded hinge and latch design. It also includes pre-molded mounting screw nuts and mounting plate attachment points for equipment support. Compared with a basic box, it is built for tougher environments and more demanding industrial use.

Does this enclosure support internal mounting hardware or equipment plates?

Yes, the enclosure includes pre-molded mounting screw nuts that can be used for DIN rail or other equipment mounting. It also has dedicated mounting plate attachment points designed to secure an internal mounting plate tightly. These features make it better suited for organized equipment placement inside the enclosure.

How durable is the hinge and latch system on this enclosure?

The integrated hinge is molded into the enclosure body and uses a stainless steel bearing to improve service life. The main part of the draw latch is also made of stainless steel for added strength. This combination is intended to provide reliable repeated access while maintaining enclosure durability.
