Boxco

Boxco P-Series 350x350x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-353518
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-353518 is a 350×350×180 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-353518Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
350×350×180 mm (13.78×13.78×7.09 in)
Mounting plate dimension M1 × M2
314 × 314 mm

Material

Material
ABS
Cover
Grey
Mounting plates
3535 P (Plastic, P type), 3535 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

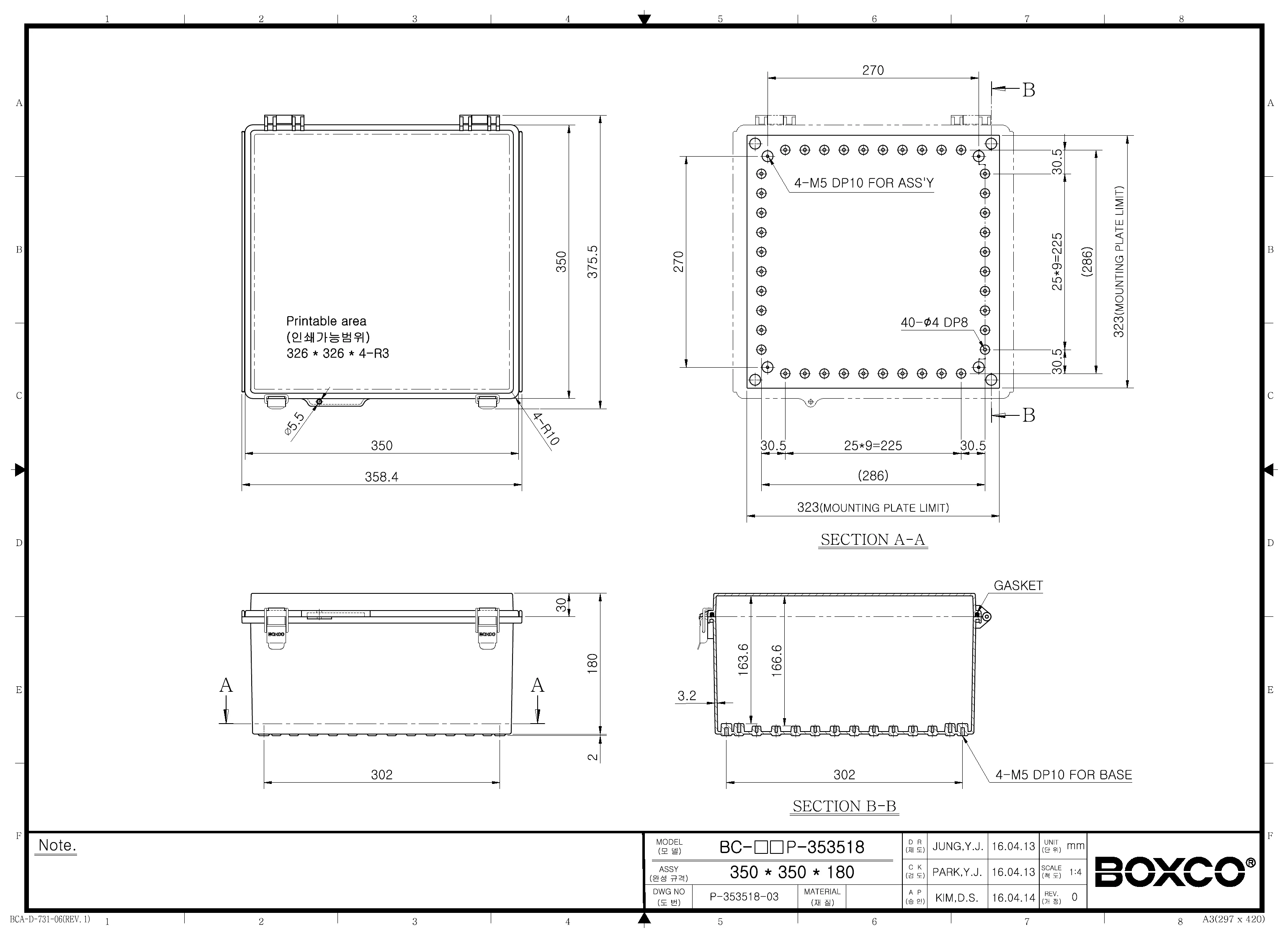

BC-AGP-353518 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main dimensions and material of this enclosure?

This Boxco P-Series enclosure measures 13.78 x 13.78 x 7.09 inches (350 x 350 x 180 mm). It is made from ABS and has a grey cover. The design uses a molded hinge and latch-style closure.

What protection rating does this enclosure provide?

This model is rated IP67 for dust-tight and water-resistant protection in demanding environments. It also carries an IK08 impact rating for resistance to mechanical impact. Those ratings make it suitable for applications where washdown, dust, and incidental impact are concerns.

Is this enclosure suitable for outdoor use?

Yes, the P-Series includes an ultraviolet stabilizer to help protect the enclosure in outdoor applications. The product description notes that only minor color change is expected even after long-term use. Its roof-protection design also helps reduce water and dust intrusion during cover opening and closing.

What temperature range can this enclosure handle?

This enclosure is specified for use from -40 °C to 70 °C. That range supports use in both cold and moderately hot industrial environments. Buyers should confirm that all internal components match the same operating range for the full assembly.

What internal mounting features are included?

This model includes pre-molded mounting screw nuts that can be used to secure DIN rail or other equipment inside the enclosure. It also has dedicated attachment points for an internal mounting plate. These features support organized equipment mounting without modifying the basic enclosure structure.

What makes this model a good choice for protecting sensitive equipment?

The enclosure uses anti-static material intended to help protect sensitive electronic instruments from static electricity. It is also made from high impact resistant material to better withstand external force and reduce breakage during machining. Combined with the injected gasket, this helps support reliable physical protection for enclosed equipment.

How does the hinge and latch design compare with a standard screw-cover enclosure?

This model uses an integrated molded hinge and latch-type closure rather than a fully removable screw-fastened cover. That design can make repeated access more convenient while keeping the cover attached to the enclosure. It is a practical option for applications that need frequent inspection or servicing access.

What is the product weight and warranty period?

The listed product weight is 1.8270 kg. The stated warranty period is 1 year. These details can help with planning for panel design, shipping, and procurement requirements.
