Boxco P-Series 350x350x180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-353518
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-353518 is a 350×350×180 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-353518Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
350×350×180 mm (13.78×13.78×7.09 in)
Mounting plate dimension M1 × M2
314 × 314 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
3535 P (Plastic, P type), 3535 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

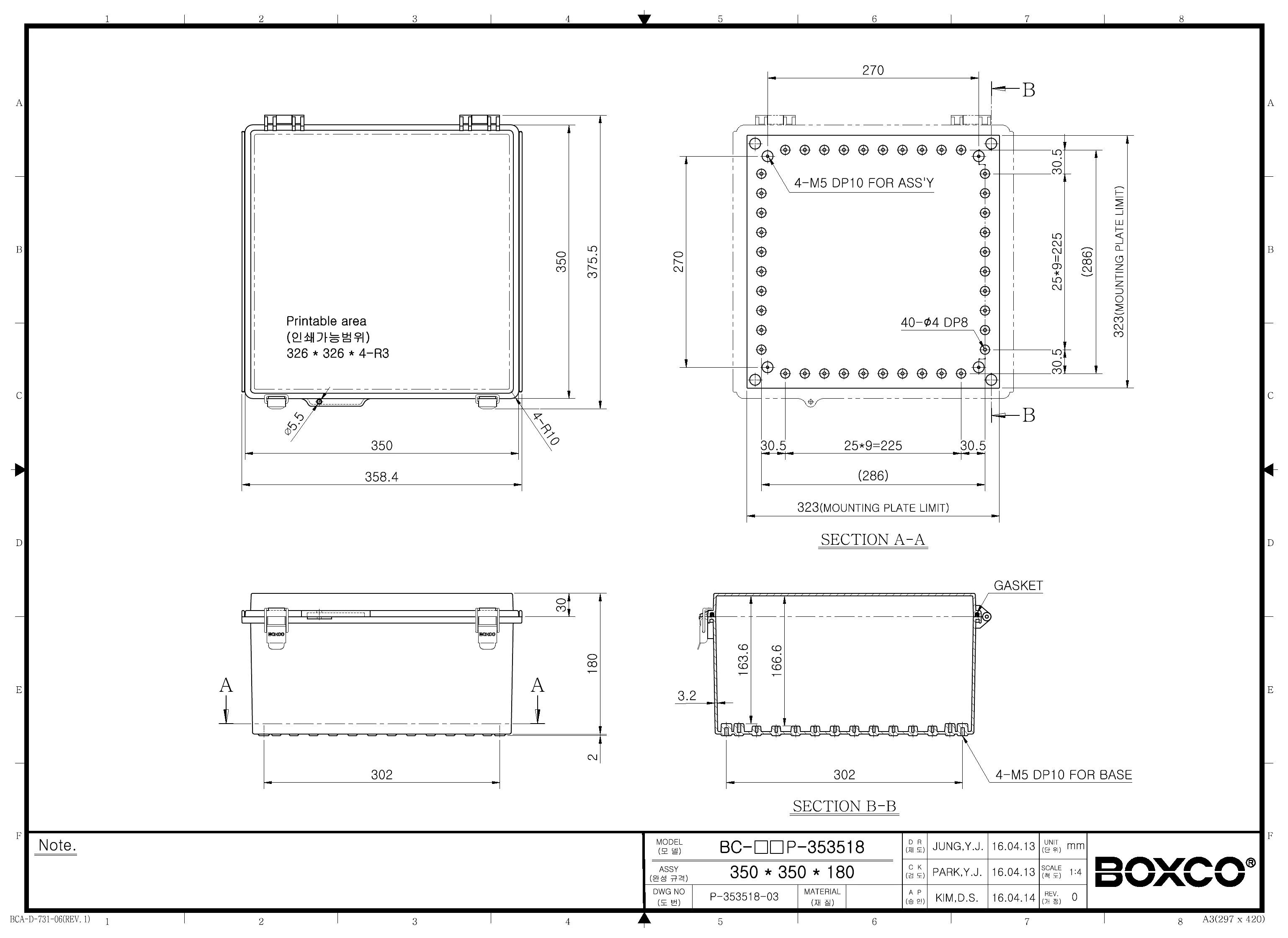

Technical drawings

BC-ATP-353518 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This enclosure is suited for protecting industrial controls, monitoring devices, and other sensitive electronics that need a durable non-metallic housing. Its ABS construction, transparent cover, and molded hinge-and-latch design make it a practical choice for commercial and industrial environments where equipment needs visibility and strong environmental protection.

What are the exact dimensions of this enclosure?

This model measures 13.78 x 13.78 x 7.09 inches, which corresponds to 350 x 350 x 180 mm. That size provides a relatively large enclosure footprint for housing internal components while maintaining a compact wall- or machine-mountable form factor.

Is this enclosure suitable for outdoor or washdown environments?

This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The product description also notes UV stabilizer material and roof protection features that help support outdoor use and reduce long-term color change.

How impact-resistant is this plastic enclosure?

This enclosure carries an IK08 impact rating, indicating resistance to mechanical impact for demanding environments. It is also described as being made from high impact resistant material to help prevent breakage during processing and general use.

What material is this enclosure made from, and why does that matter?

This model is made from ABS, a durable plastic commonly used where impact resistance and corrosion resistance are important. For this Boxco P-Series version, the material also includes anti-static properties and UV stabilization, which adds value for sensitive electronics and outdoor exposure.

What temperature range can this enclosure handle?

The stated operating temperature range for this model is -40 degrees C to 70 degrees C. That makes it suitable for a wide range of cold and hot industrial or outdoor conditions within that specified range.

Does this enclosure support mounting internal components?

Yes, the enclosure includes pre-molded mounting screw nuts and mounting plate attachment points for securing internal hardware. The description also notes that the internal mounting plate can be fixed tightly to support heavier installed equipment.

What are the cover and latch features on this model?

This version has a transparent cover along with a molded hinge and latch-type closure. The latch uses a stainless steel main part for strength, and the integrated plastic hinge includes a stainless steel bearing to improve service life.
