Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 350x450x120mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-354512
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-354512 is a 350×450×120 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-354512Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
350×450×120 mm (13.78×17.72×4.72 in)
Mounting plate dimension M1 × M2
305 × 405 mm

Material

Material
ABS
Cover
Grey
Mounting plates
3545 P (Plastic, P type), 3545 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

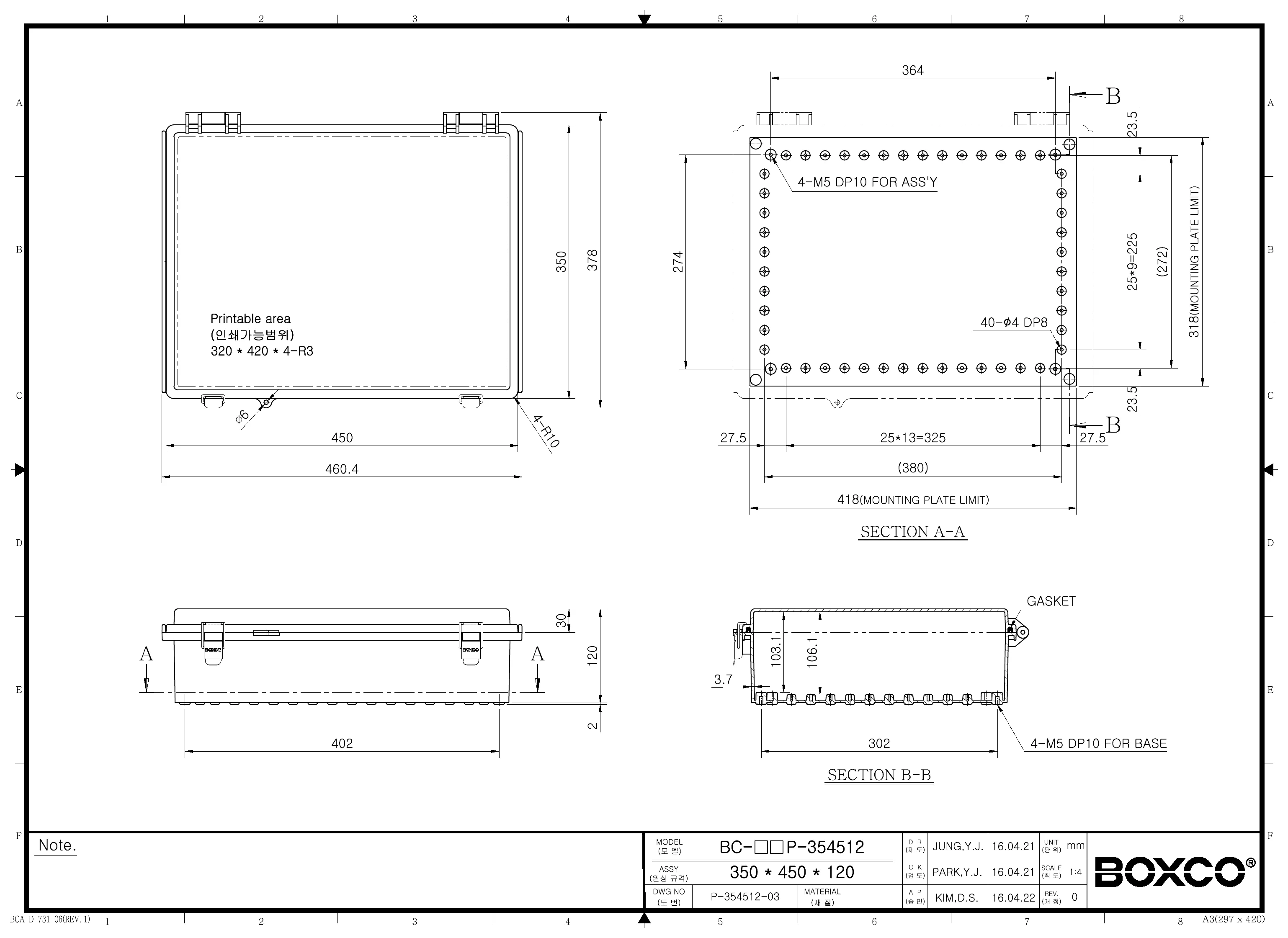

Technical drawings

BC-AGP-354512 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure typically used for?

This enclosure is used to protect electrical and electronic components in industrial and commercial environments where dust, moisture, and impact resistance matter. Its large internal size and hinged latch-style cover make it a practical choice for control, monitoring, and equipment protection applications.

What are the dimensions of this enclosure?

This model measures 13.78 x 17.72 x 4.72 inches, which is also listed as 350 x 450 x 120 mm. That makes it one of the larger plastic enclosure options for applications that need more internal space.

Is this enclosure suitable for outdoor or washdown environments?

Yes, this model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The product description also notes ultraviolet stabilizer material and roof protection features intended to improve outdoor durability.

How durable is the enclosure against physical impact?

This enclosure is rated IK08 for impact resistance and is made from high impact resistant ABS. The description also states the material is designed to resist external impact and reduce breakage during machining or press processing.

What material is this enclosure made from?

This model is made from ABS with a grey cover. The description also states that anti-static material is used to help protect sensitive electronic instruments from static electricity.

What temperature range can this enclosure handle?

The listed operating temperature range is -40 °C to 70 °C. That makes it suitable for a wide range of indoor and outdoor industrial environments within those limits.

Does this enclosure support internal mounting hardware?

Yes, the product description states it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment. It also includes internal mounting plate attachment points designed to secure heavier installed components more firmly.

What kind of cover design does this model use?

This enclosure uses a molded hinge and latch type cover. The integrated plastic hinge includes a stainless steel bearing, and the latch main part is made of stainless steel for added strength and service life.
