Boxco P-Series 350x450x120mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-354512
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-354512 is a 350×450×120 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-354512Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
350×450×120 mm (13.78×17.72×4.72 in)
Mounting plate dimension M1 × M2
305 × 405 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
3545 P (Plastic, P type), 3545 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

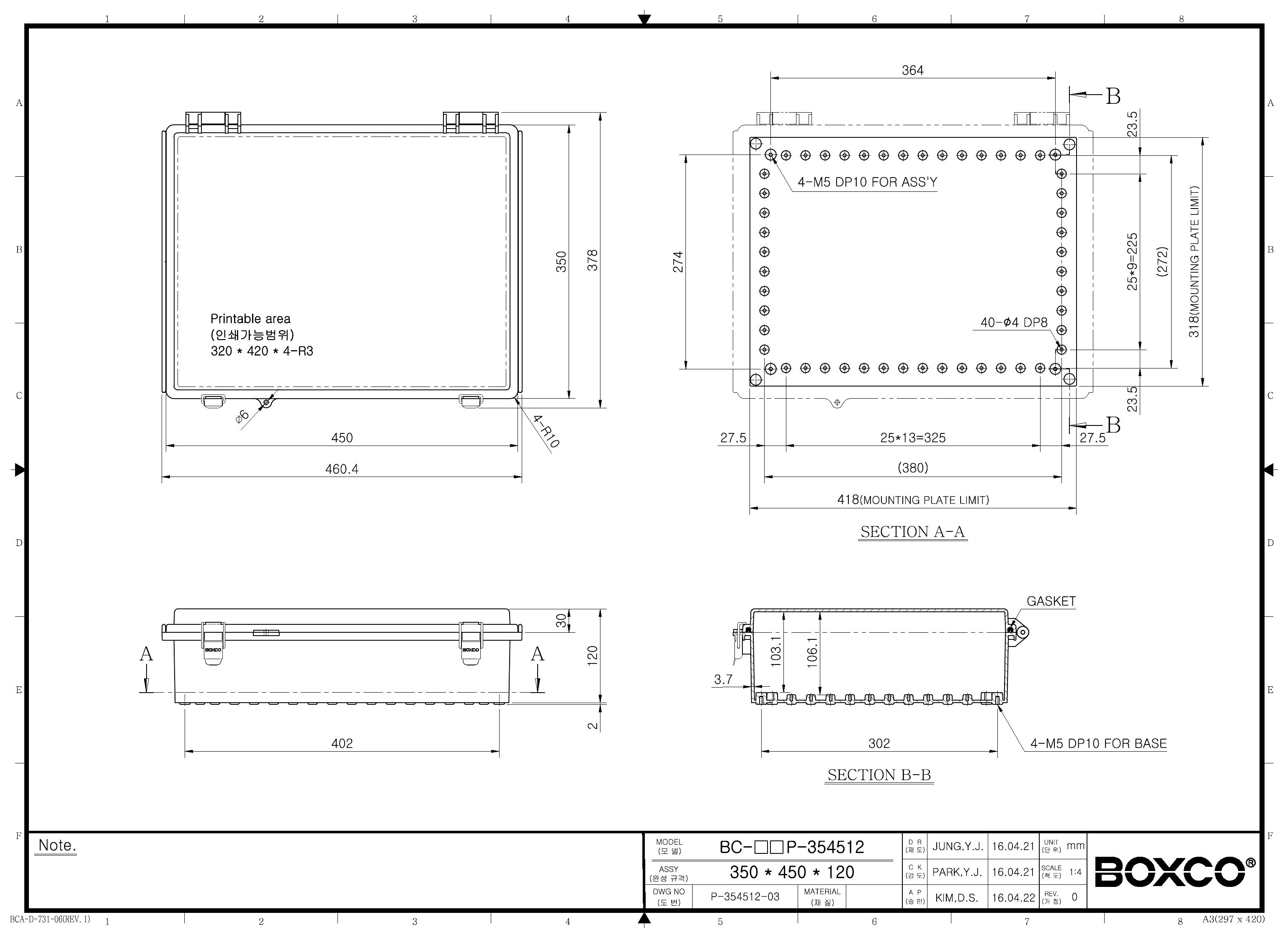

Technical drawings

BC-ATP-354512 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure typically used for?

This model is designed for protecting electronic and control components in industrial or outdoor environments where dust and water resistance matter. Its large 350 x 450 x 120 mm size makes it suitable for applications that need more internal space than compact junction-style enclosures.

What are the exact dimensions of this enclosure?

This enclosure measures 13.78 x 17.72 x 4.72 inches, which corresponds to 350 x 450 x 120 mm. It is one of the larger sizes in the Boxco P-Series, providing room for heavier-duty enclosure applications.

Is this enclosure suitable for outdoor use?

Yes, this model is intended for outdoor use and includes an ultraviolet stabilizer to help reduce color change over time. The product description also notes roof protection features that help resist water penetration when used outdoors.

How well does this enclosure protect against water, dust, and impact?

This enclosure is rated IP67 for dust-tight sealing and resistance to water ingress under defined conditions. It also carries an IK08 impact rating, indicating solid mechanical protection for demanding environments.

What material is this enclosure made from, and what kind of cover does it have?

The enclosure body is made from ABS, a high-impact-resistant plastic used for durability and processing strength. This version includes a transparent cover along with a molded hinge and latch design.

What operating temperature range does this model support?

This Boxco P-Series enclosure is rated for use from -40 °C to 70 °C. That range supports use in both cold and warm industrial environments, as long as the overall application stays within the product's stated limits.

Does this enclosure include features for mounting internal components?

Yes, the product description states that it has pre-molded mounting screw nuts for securing items such as DIN rail or other equipment. It also includes internal mounting plate attachment points designed to hold installed equipment more securely.
