Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 350x450x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-354516
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-354516 is a 350×450×160 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-354516Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
350×450×160 mm (13.78×17.72×6.30 in)
Mounting plate dimension M1 × M2
305 × 405 mm

Material

Material
ABS
Cover
Grey
Mounting plates
3545 P (Plastic, P type), 3545 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

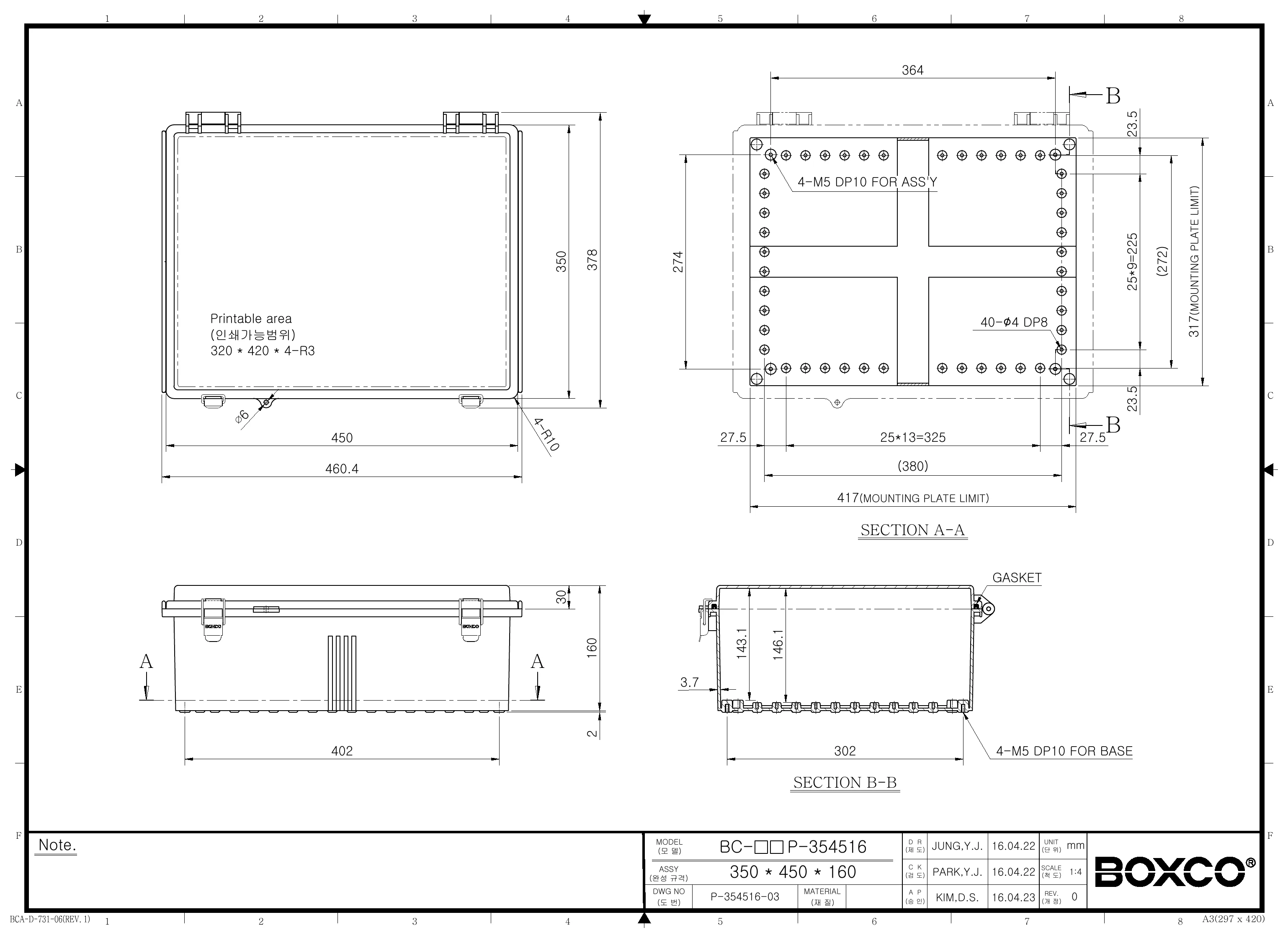

Technical drawings

BC-AGP-354516 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure commonly used for?

This enclosure is suited for protecting sensitive electronic equipment in industrial, commercial, and outdoor environments where dust and water resistance matter. Its anti-static material and high-impact ABS construction make it a practical choice for housing control, monitoring, or instrumentation components.

What are the dimensions of this enclosure?

This model measures 13.78 x 17.72 x 6.30 inches, which corresponds to 350 x 450 x 160 mm. That size gives it a relatively large internal form factor for applications that need more room than compact junction-style boxes.

How much environmental protection does this enclosure provide?

This model is rated IP67, indicating strong protection against dust ingress and temporary immersion in water. It also has an IK08 impact rating, which supports use in settings where the enclosure may be exposed to mechanical impact.

Is this enclosure suitable for outdoor use?

Yes, the P-Series is designed with outdoor use in mind. The ABS material includes an ultraviolet stabilizer to help reduce visible color change over time, and the enclosure design includes roof protection features that help limit water and dust intrusion during cover operation.

What material is this enclosure made from?

This enclosure is made from ABS plastic with a grey cover. The material is described as high impact resistant, and the product also uses anti-static material to help protect sensitive electronic instruments from static electricity.

What makes this hinged enclosure different from a standard plastic box?

This model combines a molded hinge and latch-style cover with features intended for demanding enclosure applications. It includes stainless steel latch components, an integrated hinge with a stainless steel bearing, a precision-injected gasket, and pre-molded mounting screw nuts for added utility inside the enclosure.

What temperature range can this enclosure handle?

This enclosure is specified for use from -40 degrees C to 70 degrees C. That range supports use in both low-temperature and moderately high-temperature environments, depending on the broader system requirements.

Does this enclosure support mounting internal components?

Yes, the enclosure includes pre-molded mounting screw nuts that can be used to secure internal hardware such as DIN rail or other equipment. It also includes mounting plate attachment points with brass-inserted injection molding for securely supporting heavier internal components.
