Boxco P-Series 350x450x160mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-354516
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-354516 is a 350×450×160 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-354516Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
350×450×160 mm (13.78×17.72×6.30 in)
Mounting plate dimension M1 × M2
305 × 405 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
3545 P (Plastic, P type), 3545 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

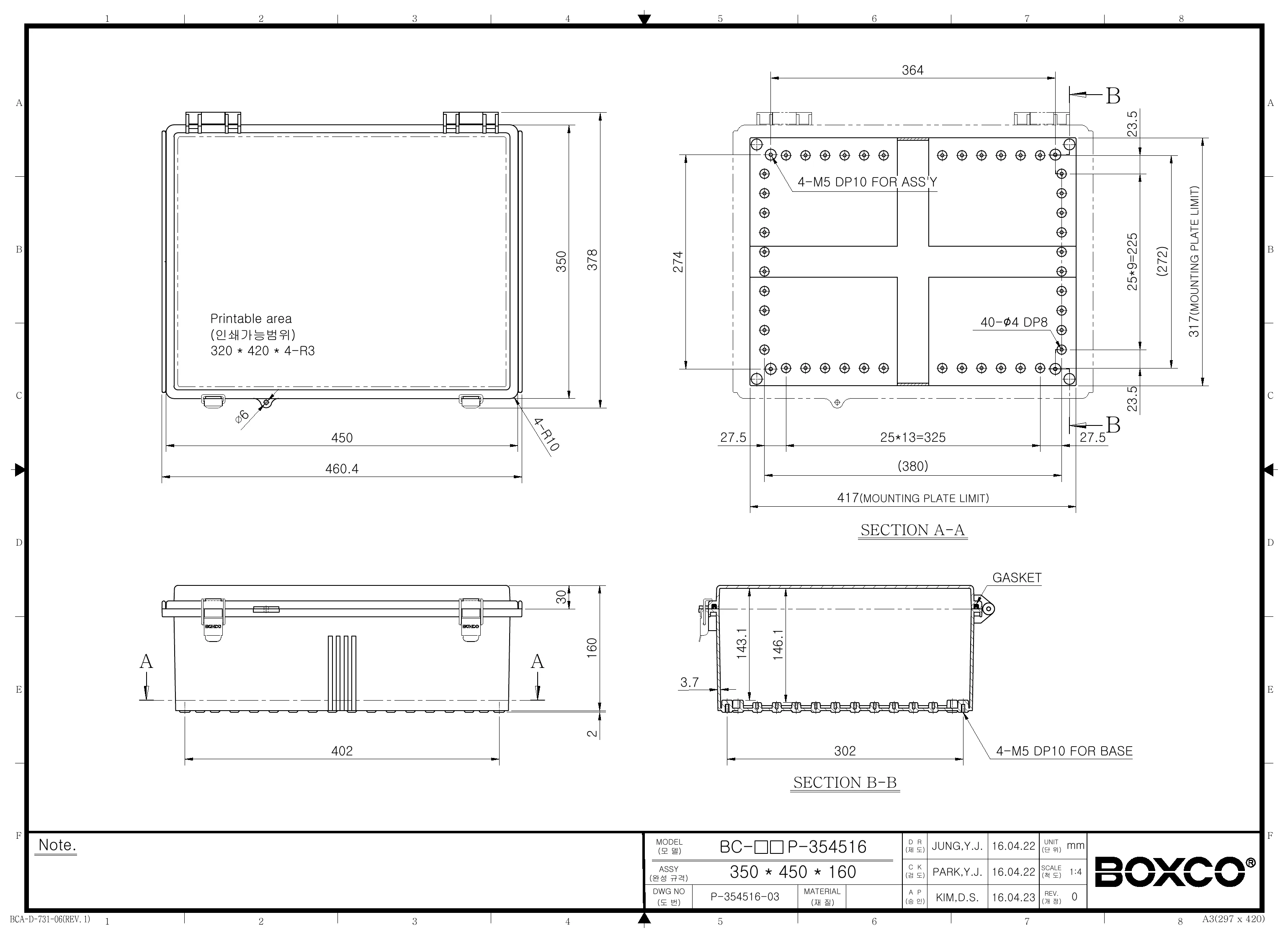

Technical drawings

BC-ATP-354516 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure suited for?

This enclosure is suited for protecting industrial and commercial electrical or electronic equipment that needs a durable non-metallic housing. Its large internal size, IP67 sealing, and impact-resistant construction make it a practical choice for control, automation, and outdoor equipment protection where dust and water resistance matter.

Is this enclosure suitable for outdoor environments?

Yes. Boxco states that an ultraviolet stabilizer is added to the P-Series to help protect the enclosure during outdoor use and reduce visible color change over time. The design also includes roof protection features and a gasket intended to support strong waterproof and dust-proof performance.

What are the key protection ratings for this model?

This model is rated IP67 and IK08. That means it is built for strong protection against dust and water ingress, while also providing resistance to external impact for demanding environments.

What material is this enclosure made from, and why does that matter?

This enclosure is made from ABS plastic and includes anti-static material as described by Boxco. The housing is designed to be high impact resistant, helping reduce breakage during machining or press processing while also helping protect sensitive electronic instruments from static electricity.

Does this model have a clear cover for visual inspection?

Yes. This version includes a transparent cover, which can be useful when you need to visually check indicators, labels, or internal components without opening the enclosure. That can help reduce unnecessary exposure of the interior in dusty or wet environments.

What are the dimensions and operating temperature range of this enclosure?

This Boxco P-Series enclosure measures 13.78 x 17.72 x 6.30 inches, which corresponds to 350 x 450 x 160 mm. Its stated operating temperature range is -40°C to 70°C, making it suitable for both low-temperature and warm industrial environments.

How does the molded hinge and latch design compare with a basic cover design?

This model uses an integrated molded hinge and latch-type cover rather than a plain lift-off style cover. Boxco also notes that the hinge uses a stainless steel bearing for longer service life, and the main part of the draw latch is stainless steel for added strength.
