Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 350x450x200mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-354520
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-354520 is a 350×450×200 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-354520Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
350×450×200 mm (13.78×17.72×7.87 in)
Mounting plate dimension M1 × M2
305 × 405 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
3545 P (Plastic, P type), 3545 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

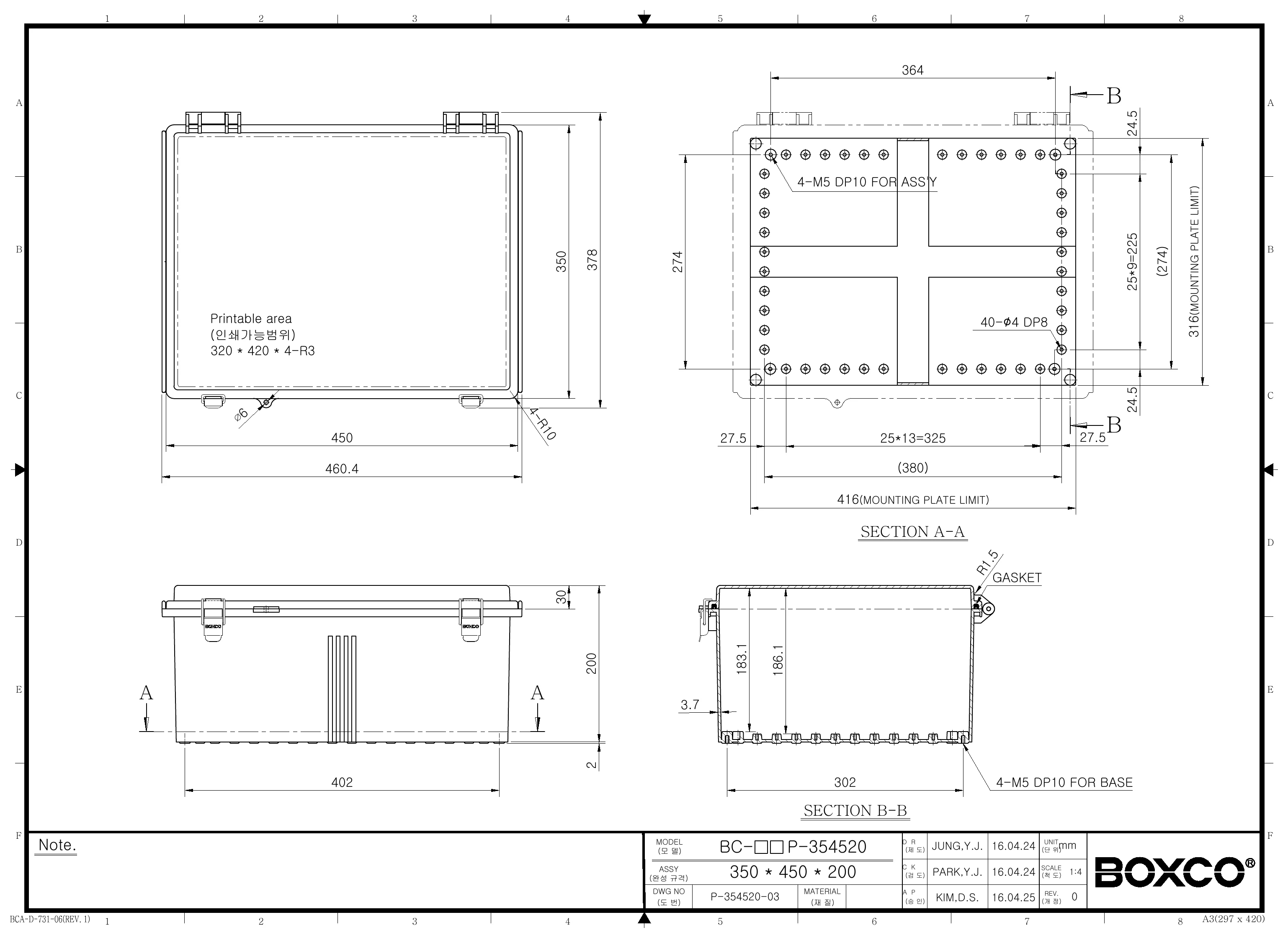

Technical drawings

BC-ATP-354520 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This enclosure is suited for protecting electrical or control components in industrial and commercial environments where dust, water, and impact resistance matter. Its large internal size, transparent cover, and molded hinge and latch design make it a practical choice for inspection-friendly equipment housings and outdoor control applications.

What are the key size and material specifications for this enclosure?

This model measures 13.78 x 17.72 x 7.87 inches, which is 350 x 450 x 200 mm. It is made from ABS and uses a transparent cover, giving visibility into the enclosure while maintaining a durable plastic housing.

Is this enclosure suitable for outdoor environments?

Yes, this model is designed with outdoor use in mind. The product description states that an ultraviolet stabilizer is added to help protect the enclosure outdoors, and the roof protection feature is intended to reduce water penetration during outdoor use.

How well does this enclosure protect against water, dust, and impact?

This enclosure is rated IP67 and IK08. That means it is built for strong protection against dust and water ingress, while also offering resistance to mechanical impact in demanding environments.

What temperature range can this enclosure handle?

This model is specified for use from -40 °C to 70 °C. That range supports use in both cold and warm operating conditions where enclosure durability is important.

What features distinguish this P-Series enclosure from a basic plastic box?

This model includes a transparent cover, integrated molded hinge, latch hardware with a stainless steel main part, pre-molded mounting screw nuts, gasket sealing, and mounting plate attachment points. These features make it better suited for heavier-duty industrial enclosure use than a basic non-sealed plastic box.
