Boxco P-Series 400x500x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-405016
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-405016 is a 400×500×160 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-405016Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
400×500×160 mm (15.75×19.69×6.30 in)
Mounting plate dimension M1 × M2
358 × 457 mm

Material

Material
ABS
Cover
Grey
Mounting plates
4050 P (Plastic, P type), 4050 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

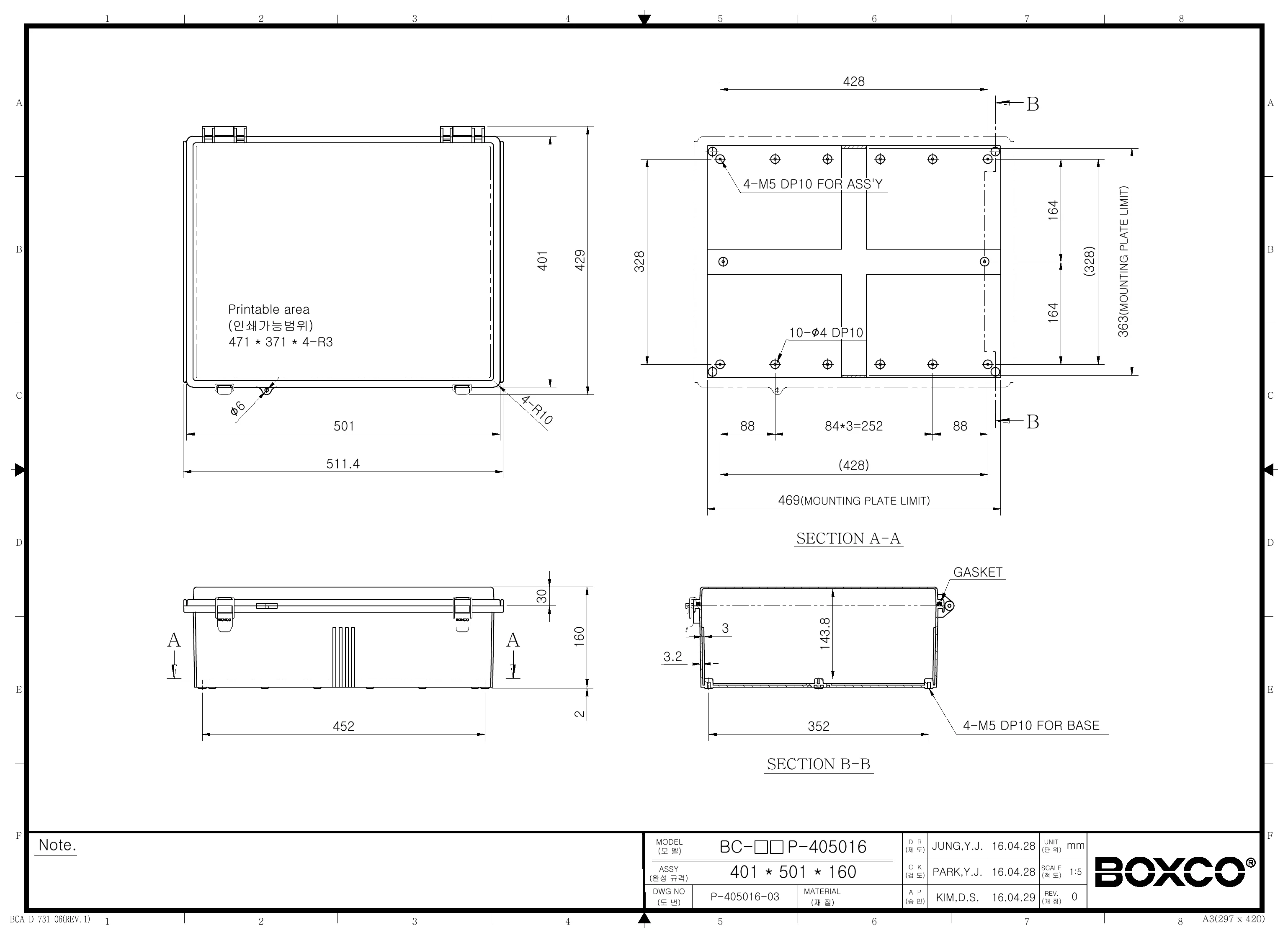

Technical drawings

BC-AGP-405016 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This enclosure is designed for protecting electronic and control components in industrial and outdoor environments where dust, water, and impact resistance matter. Its large 400 x 500 x 160 mm size makes it a practical choice for housing larger assemblies or multiple internal components in one enclosure.

How well does this enclosure hold up outdoors?

This model includes ultraviolet stabilizer material to help it maintain performance during outdoor use, with only minor color change over time. It is also rated IP67 and includes roof protection features and a precision-injected gasket to help resist water and dust ingress.

What are the key material and durability features of this enclosure?

The enclosure is made from ABS and is built from high impact resistant material for strong resistance to external impact and reduced risk of breakage during machining. It also carries an IK08 impact rating and uses stainless steel in the latch and hinge bearing areas for added durability.

What temperature range can this enclosure handle?

This Boxco P-Series enclosure is rated for use from -40 degrees C to 70 degrees C. That range makes it suitable for many demanding industrial and outdoor applications where equipment may face both low and elevated ambient temperatures.

Does this enclosure support internal mounting hardware or panels?

Yes, this model includes pre-molded mounting screw nuts that can be used to secure DIN rail or other internal equipment. It also has internal mounting plate attachment points with brass inserted injection molding to support tightly fixed internal plates and heavier installed equipment.

How does this hinged latch-style enclosure differ from a basic screw-cover box?

This model uses a molded integrated hinge and latch-style access instead of a simple screw-fastened cover, which can make repeated opening and closing more practical in service environments. It also includes roof protection, stainless steel latch components, and a stainless steel hinge bearing to improve long-term durability.
