Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 630x830x185mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-608018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-608018 is a 630×830×185 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-608018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
630×830×185 mm (24.80×32.68×7.28 in)
Mounting plate dimension M1 × M2
560 × 752 mm

Material

Material
ABS
Cover
Grey
Mounting plates
6080 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

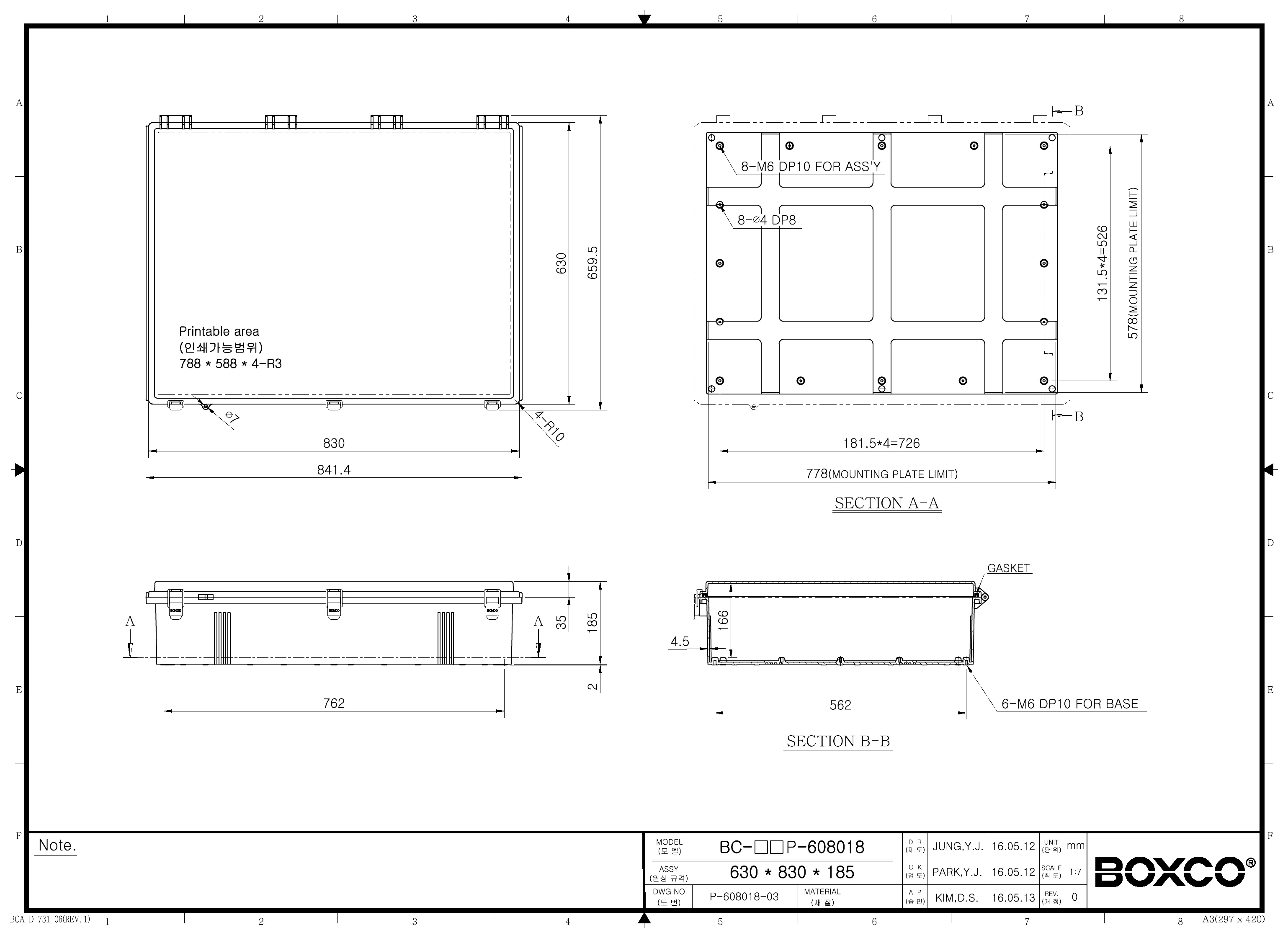

Technical drawings

BC-AGP-608018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series plastic enclosure best suited for?

This model is suited to protecting larger industrial or commercial control components, instrumentation, and other sensitive electronics that need a sealed non-metallic enclosure. Its large 24.80 x 32.68 x 7.28 inch form factor makes it a better fit for applications that require more internal space than compact junction boxes.

Is this enclosure suitable for outdoor use?

Yes. The product description states that ultraviolet stabilizer is added for outdoor usage, and the enclosure also includes roof protection features designed to help reduce water penetration when used outside. It is rated IP67, which supports strong protection against dust and water ingress.

How durable is this enclosure in demanding environments?

This enclosure is built from high-impact ABS and carries an IK08 impact rating, which indicates good resistance to external mechanical impact. The molded hinge design also uses a stainless steel bearing to improve hinge life over repeated opening and closing.

Does this enclosure help protect sensitive electronic equipment from static electricity?

Yes. The description specifies that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model more suitable for applications where static-sensitive components are housed inside the enclosure.

What are the key specifications of this Boxco P-Series enclosure?

This model measures 24.80 x 32.68 x 7.28 inches (630 x 830 x 185 mm) and weighs 24.084 kg. It has an IP67 ingress rating, an IK08 impact rating, an operating temperature range of -40 to 70 degrees C, and a 1-year warranty.

What makes this model different from a basic plastic enclosure box?

Compared with a basic plastic enclosure, this model adds molded hinge and latch construction, IP67 sealing, IK08 impact resistance, anti-static material, UV stabilization, and pre-molded mounting screw nuts. It is intended for more demanding enclosure applications where durability, environmental protection, and equipment support matter.
