Boxco P-Series 630x830x185mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-608018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATP-608018 is a 630×830×185 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-608018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
630×830×185 mm (24.80×32.68×7.28 in)
Mounting plate dimension M1 × M2
560 × 752 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
6080 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

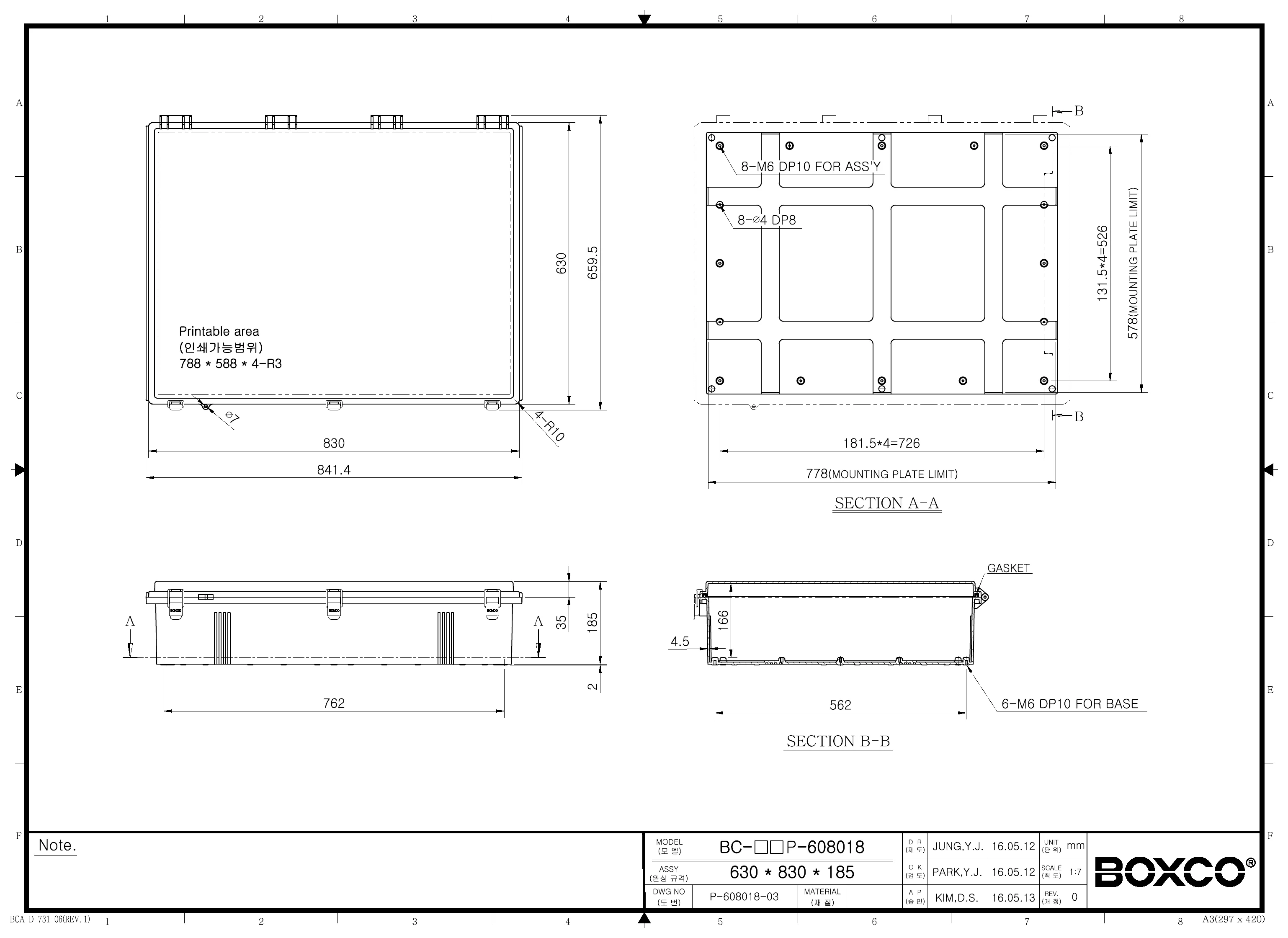

Technical drawings

BC-ATP-608018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-ATP-608018 best suited for?

This enclosure is suited for protecting industrial and commercial equipment that needs a large non-metallic housing with strong environmental protection. Its ABS construction, transparent cover, and molded hinge and latch design make it a practical choice for control, monitoring, or instrumentation setups where components need to stay protected while remaining visible.

Is this enclosure suitable for outdoor environments?

Yes. Boxco states that the P-Series includes an ultraviolet stabilizer to help protect the enclosure during outdoor use and reduce visible color change over time. The design also includes roof protection features and a gasket intended to support waterproof and dust-proof performance.

What protection ratings does this model have?

The BC-ATP-608018 is rated IP67 and IK08. That means it is designed for strong protection against dust ingress and temporary water exposure, while also offering impact resistance appropriate for demanding enclosure applications.

What are the dimensions and weight of this enclosure?

This model measures 24.80 x 32.68 x 7.28 inches, which is 630 x 830 x 185 mm. Its listed weight is 25.896 kg, reflecting its large-format enclosure size.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 degrees C to 70 degrees C. That range supports use in both cold and hot industrial environments, provided the rest of the installed equipment is also rated appropriately.

What distinguishes this model from a standard opaque enclosure?

This version includes a transparent cover, which can be useful when visual inspection of internal devices or indicators is important without opening the enclosure. It also uses a molded hinge and latch type design, combining access convenience with the environmental and impact ratings listed for this model.

Does this enclosure support internal mounting hardware or equipment plates?

Yes. The product description notes pre-molded mounting screw nuts for fixing DIN rail or other equipment, along with mounting plate attachment points using brass inserted injection molding. These features are intended to help secure internal components and support heavier installed equipment.

What warranty is listed for the BC-ATP-608018?

The listed warranty period for this model is 1 year. For purchase-specific warranty terms or claim procedures, the seller's policy should be reviewed at the time of ordering.
