Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 90x120x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-091207
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-091207 is a 90×120×70 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-091207Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
90×120×70 mm (3.54×4.72×2.76 in)
Mounting plate dimension M1 × M2
65 × 95 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0811 P (Plastic, P type), 0912 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

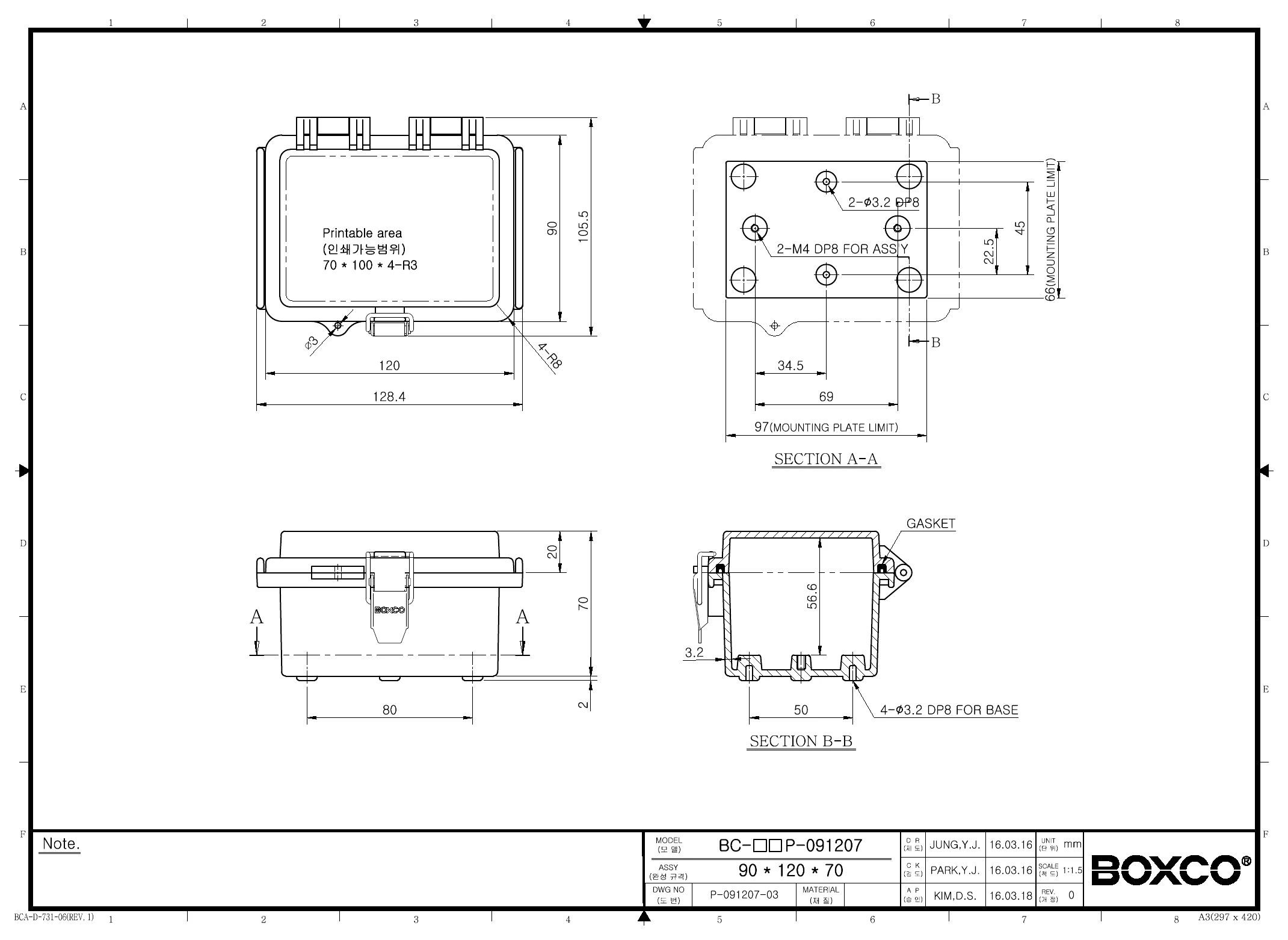

Technical drawings

BC-AGP-091207 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this enclosure box typically used for?

This Boxco P-Series enclosure is used to protect sensitive electrical or electronic components in industrial and commercial applications. Its sealed plastic housing, molded hinge, and latch design make it a practical choice where equipment needs protection from dust, water, and impact.

What are the dimensions of this Boxco P-Series enclosure?

This model measures 3.54 x 4.72 x 2.76 inches, which is 90 x 120 x 70 mm. That size makes it suitable for compact assemblies that still need a durable protective enclosure.

Is this enclosure suitable for outdoor or harsh environments?

Yes, this enclosure is designed for demanding environments and includes ultraviolet stabilizer for outdoor use. It is rated IP67 for protection against dust and water ingress and IK08 for impact resistance.

What material is this enclosure made from?

This model is made from ABS plastic and includes a grey cover. The product description also notes anti-static material use and high impact resistance, which helps protect sensitive instruments and supports durability during processing.

What temperature range can this enclosure handle?

This enclosure is rated for use from -40 °C to 70 °C. That range supports use in both cold and moderately hot operating environments, depending on the needs of the application.

What design features distinguish this enclosure from a basic plastic box?

This model includes a molded hinge with a stainless steel bearing, a latch with a stainless steel main part, roof protection to reduce water and dust intrusion, and a precision-injected gasket for sealing performance. It also has pre-molded mounting screw nuts and mounting plate attachment points for securely supporting internal equipment.
