Boxco P-Series 90x120x70mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-091207
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATP-091207 is a 90×120×70 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-091207Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
90×120×70 mm (3.54×4.72×2.76 in)
Mounting plate dimension M1 × M2
65 × 95 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
0811 P (Plastic, P type), 0912 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

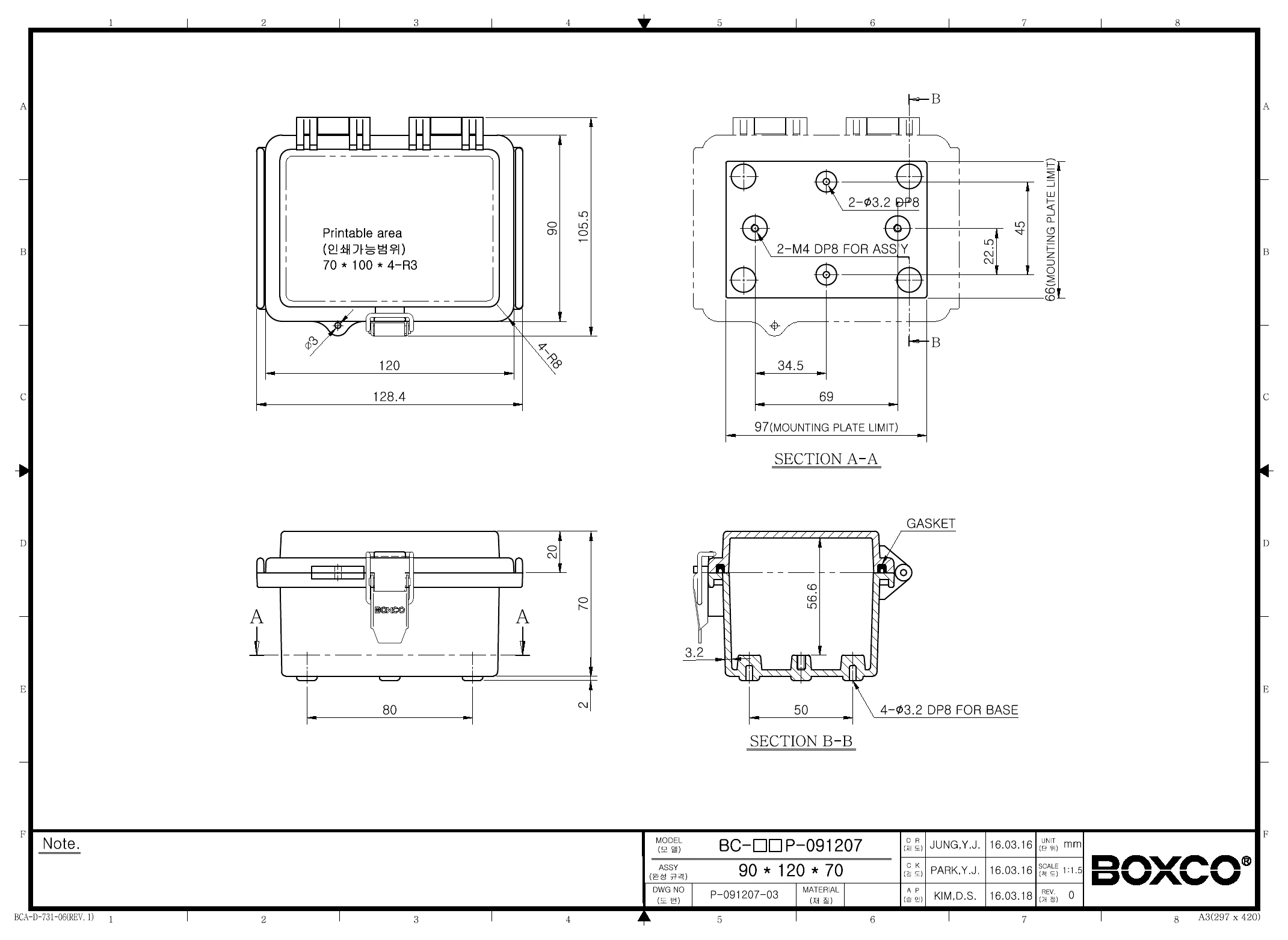

Technical drawings

BC-ATP-091207 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-ATP-091207 enclosure best suited for?

This enclosure is suited for protecting electronic components and instruments that need a sealed plastic housing in industrial or outdoor environments. Its transparent cover is useful when contents need to be visually checked without opening the enclosure. The molded hinge and latch design also make it practical for applications that require repeated access.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure for outdoor usage and reduce visible color change over time. It also includes roof protection features and a gasket designed for strong waterproof and dust-proof performance.

What do the IP67 and IK08 ratings mean for this model?

This model is rated IP67 for dust and water resistance and IK08 for impact resistance. That makes it a good fit for environments where the enclosure may be exposed to dust, moisture, and incidental external impact. The ABS body is also described as high impact resistant.

What material is the BC-ATP-091207 made from?

This enclosure is made from ABS and includes a transparent cover. The description also notes anti-static material use for protecting sensitive electronic instruments from static electricity. Boxco also describes the housing material as resistant to impact and breakage during processing.

What is the operating temperature range for this enclosure?

The listed operating temperature range is -40 degrees C to 70 degrees C. That range supports use in both low-temperature and moderately high-temperature environments. Buyers should still confirm that all installed components are also rated for the same conditions.

Does this enclosure support internal mounting hardware or plates?

Yes. The product description states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also has internal mounting plate attachment points. Those features make it easier to secure internal hardware inside the enclosure body.
