Boxco P-Series 90x120x85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-091208
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-091208 is a 90×120×85 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-091208Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
90×120×85 mm (3.54×4.72×3.35 in)
Mounting plate dimension M1 × M2
65 × 95 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0811 P (Plastic, P type), 0912 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

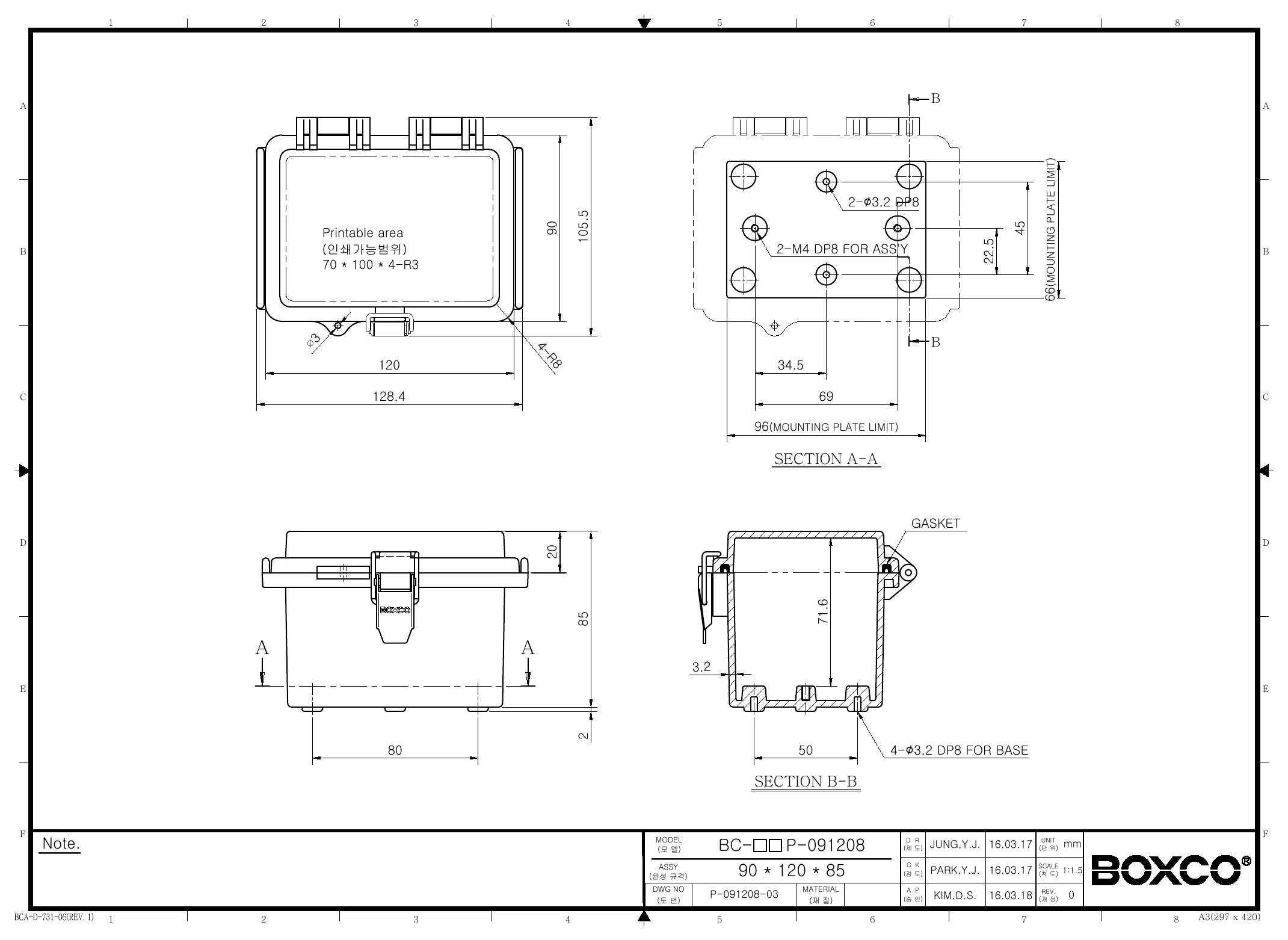

Technical drawings

BC-AGP-091208 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series plastic enclosure suited for?

This enclosure is intended for protecting electrical and electronic components in industrial and commercial environments where a sealed non-metallic box is needed. Its ABS construction, molded hinge and latch design, and impact and ingress ratings make it a practical choice for control, monitoring, and instrumentation housings.

Is this enclosure suitable for outdoor use?

Yes, this model is designed with outdoor use in mind. The product description states that an ultraviolet stabilizer is added to help protect the enclosure outdoors, and the roof protection and gasket design are intended to improve resistance to water and dust intrusion.

What protection ratings does this enclosure have?

This model is rated IP67 for ingress protection and IK08 for impact resistance. That means it is built for strong protection against dust and water ingress under its rated conditions, while also offering good resistance to external impact.

What are the size and material details for this enclosure?

This Boxco P-Series enclosure measures 3.54 x 4.72 x 3.35 inches, which corresponds to 90 x 120 x 85 mm. It is made from ABS and comes with a grey cover in a molded hinge and latch style.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 °C to 70 °C. That range supports use in both cold and moderately hot environments, provided the full application stays within the product's rated limits.

Does this enclosure support mounting internal components?

Yes, the product description notes pre-molded mounting screw nuts for fixing DIN rail or other equipment, along with internal mounting plate attachment points. Those features help support organized internal component mounting inside the enclosure body.
