Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 90x120x85mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-091208
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-091208 is a 90×120×85 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-091208Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
90×120×85 mm (3.54×4.72×3.35 in)
Mounting plate dimension M1 × M2
65 × 95 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
0811 P (Plastic, P type), 0912 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

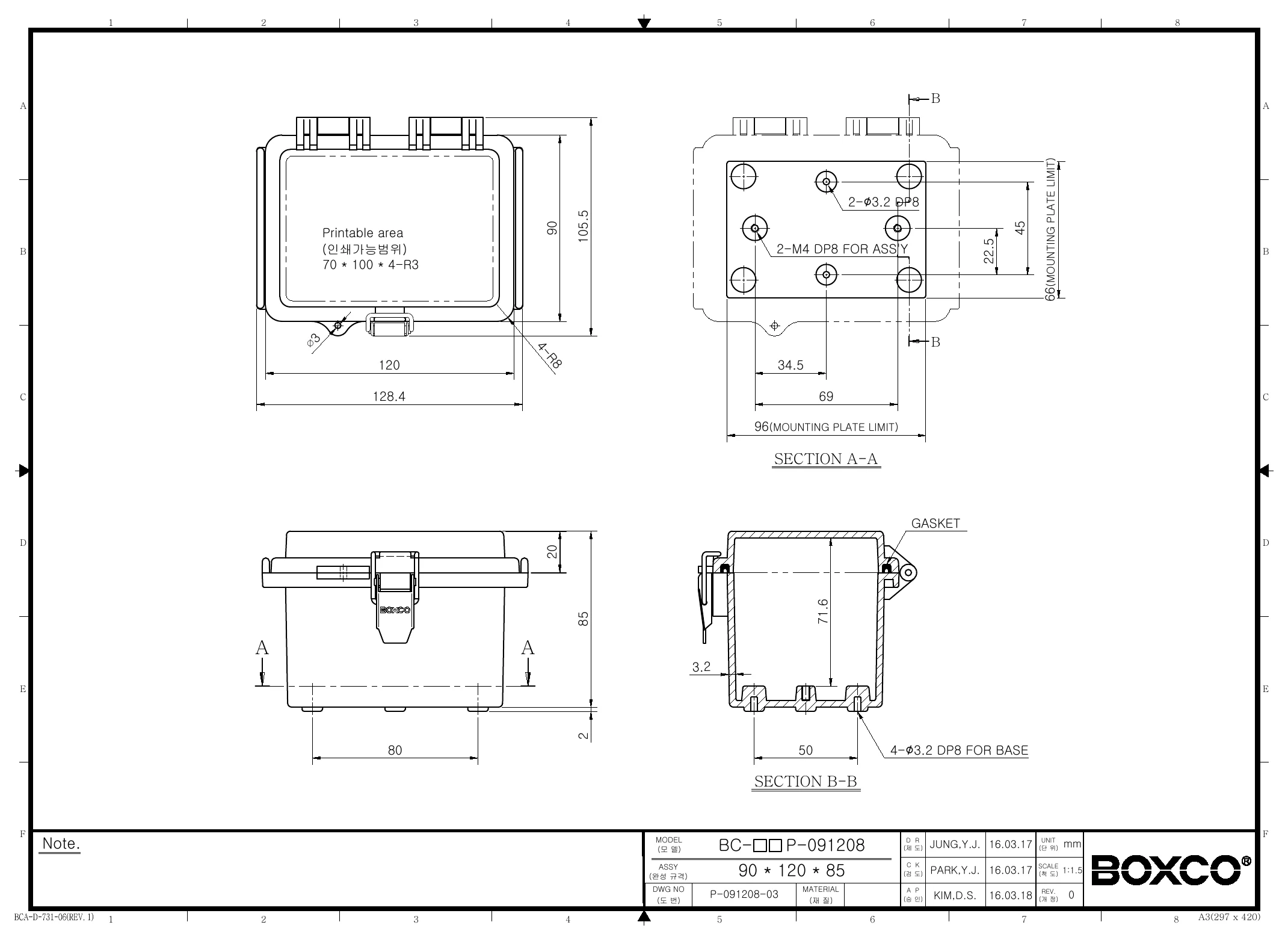

Technical drawings

BC-ATP-091208 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-ATP-091208 enclosure best suited for?

This model is suited for protecting sensitive electronic instruments and other enclosed components in environments where dust, water, and physical impact resistance matter. Its ABS body, IP67 sealing, IK08 impact rating, and UV-stabilized material make it a practical choice for both indoor use and outdoor exposure.

Is this plastic enclosure suitable for outdoor environments?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, and the housing is designed to resist noticeable color change over time. The IP67 rating and roof-protection design also support use where water and dust ingress are concerns.

What does the transparent cover provide on this Boxco enclosure?

The transparent cover allows visual inspection of indicators, displays, or labels inside the enclosure without opening it. That can be useful when you want to check status information while maintaining the enclosure's closed, sealed condition.

What are the key specifications of the BC-ATP-091208 enclosure?

This enclosure measures 3.54 x 4.72 x 3.35 inches, or 90 x 120 x 85 mm, and weighs 0.218 kg. It is made from ABS, carries IP67 and IK08 ratings, includes a transparent cover, and is rated for use from -40 C to 70 C.

Does this enclosure support mounting internal equipment securely?

Yes. The product includes pre-molded mounting screw nuts for securing DIN rail or other internal equipment, and it also has mounting plate attachment points with brass inserted injection molding. Those features are intended to support tighter fastening for heavier internal components.

What design features help this enclosure hold up in demanding conditions?

Boxco highlights several durability features on this model, including a stainless steel draw latch component, an integrated plastic hinge with a stainless steel bearing, and high impact resistant material. The gasket is robot-injected for waterproof and dust-proof performance, and the outer roof protection helps reduce water and dust intrusion during cover operation.
