Boxco

Boxco P-Series 190x280x140mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-192814
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATP-192814 is a 190×280×140 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-192814Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×280×140 mm (7.48×11.02×5.51 in)
Mounting plate dimension M1 × M2
159 × 249 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1928 PG (Plastic, PG type), 1928 P (Plastic, P type), 1928 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

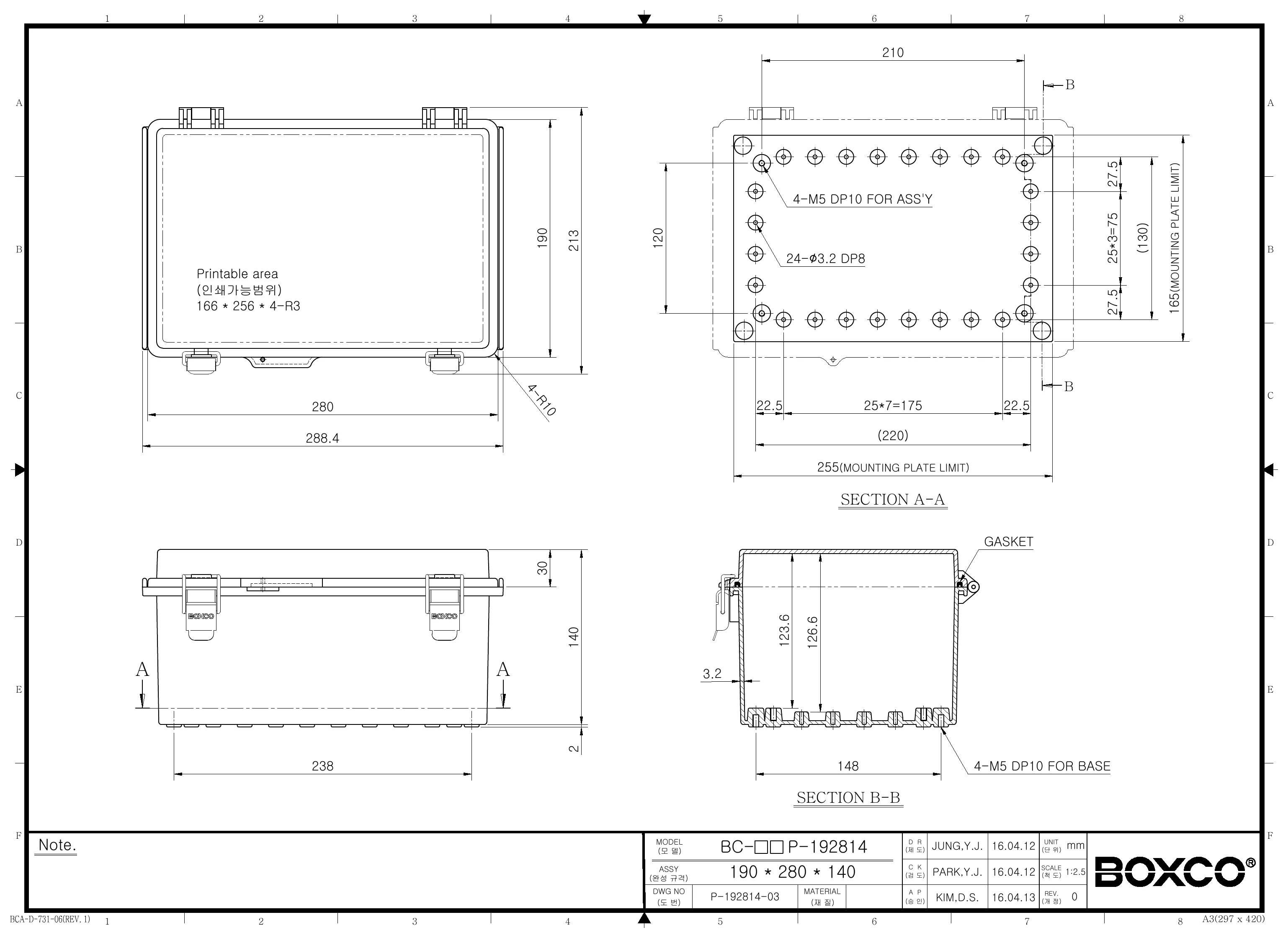

Technical drawings

BC-ATP-192814 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

Is this enclosure suitable for outdoor use?

Yes. This Boxco P-Series enclosure includes an ultraviolet stabilizer for outdoor use and is rated IP67 for protection against dust and water ingress. The molded design also includes roof protection features intended to reduce water and dust penetration when the cover is opened and closed.

What kind of equipment is this enclosure typically used for?

This model is intended for protecting electrical or electronic equipment that needs a sealed plastic housing with impact resistance. The anti-static material and high-impact ABS construction make it relevant for sensitive electronic instruments and other industrial or commercial control components housed inside an enclosure.

What are the key size and material specifications for this model?

This enclosure measures 7.48 x 11.02 x 5.51 inches, which is 190 x 280 x 140 mm. It is made from ABS plastic, uses a transparent cover, and has a molded hinge and latch-style closure.

How durable is the enclosure in demanding environments?

This model is rated IK08 for impact resistance and is made from high-impact resistant material designed to reduce breakage during processing. Its latch uses stainless steel in the main part, and the integrated hinge uses a stainless steel bearing to support longer service life.

What internal mounting options does this enclosure support?

The enclosure includes pre-molded mounting screw nuts so DIN rail or other equipment can be fixed to the internal structure. It also has mounting plate attachment points with brass inserted injection molding to support heavier internal equipment more securely.

What temperature range can this enclosure handle?

This Boxco P-Series enclosure is specified for use from -40 °C to 70 °C. That operating range makes it suitable for applications exposed to both low and moderately high ambient temperatures, provided the installed equipment stays within its own limits.

Why choose this hinged transparent-cover model instead of a basic opaque enclosure?

This version combines a transparent cover for visual inspection with a molded hinge and latch design for repeated access. It is a better fit when users need sealed protection, clear visibility into the enclosure, and more convenient cover access than a simpler non-hinged box.
