Boxco

Boxco P-Series 300x400x120mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-304012
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATP-304012 is a 300×400×120 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-304012Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
300×400×120 mm (11.81×15.75×4.72 in)
Mounting plate dimension M1 × M2
264 × 364 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
3040 P (Plastic, P type), 3040 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

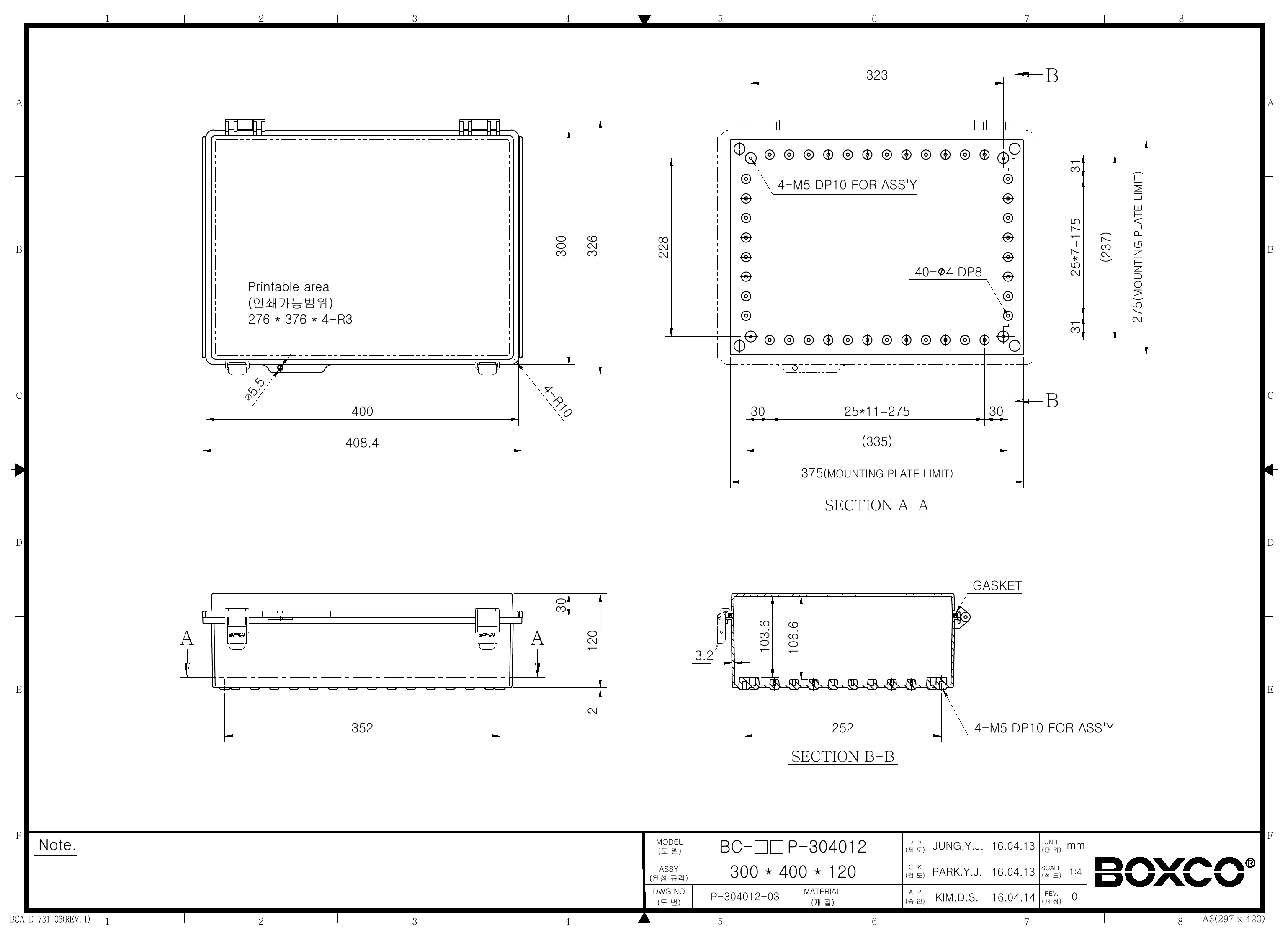

Technical drawings

BC-ATP-304012 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure designed for?

This model is a hinged plastic enclosure used to protect electrical or electronic components in industrial and commercial environments. Its transparent cover allows visual inspection without opening the enclosure, which is useful when equipment status needs to be checked while maintaining protection.

What are the dimensions of this enclosure?

This Boxco P-Series enclosure measures 11.81 x 15.75 x 4.72 inches, which corresponds to 300 x 400 x 120 mm. That size provides a relatively large internal housing for control, monitoring, or protection applications that need more room than compact junction boxes.

Is this enclosure suitable for outdoor or washdown environments?

Yes, this model is rated IP67, which means it is built to resist dust ingress and temporary water exposure when properly closed. The product description also notes an ultraviolet stabilizer and roof protection features intended to improve outdoor durability.

How durable is the enclosure against impact?

This enclosure carries an IK08 impact rating and is made from high impact resistant ABS. That combination makes it a strong choice for applications where the housing may be exposed to routine mechanical contact or demanding industrial conditions.

What makes this model different from a standard opaque enclosure?

This version includes a transparent cover along with a molded hinge and latch-type closure, which distinguishes it from simpler opaque screw-cover boxes. It is designed for users who want enclosed protection while still being able to visually inspect the contents from the outside.

What temperature range can this enclosure handle?

This model is specified for use from -40 °C to 70 °C. That range supports use in both cold and warm operating environments, provided the rest of the installed equipment is also rated for those conditions.

Does this enclosure support internal mounting hardware or equipment plates?

Yes, the product description states that it includes pre-molded mounting screw nuts and internal mounting plate attachment points. Those features are intended to help secure internal components or mounting plates inside the enclosure body.
