Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 300x400x120mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-304012
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGP-304012 is a 300×400×120 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-304012Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
300×400×120 mm (11.81×15.75×4.72 in)
Mounting plate dimension M1 × M2
264 × 364 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
3040 P (Plastic, P type), 3040 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

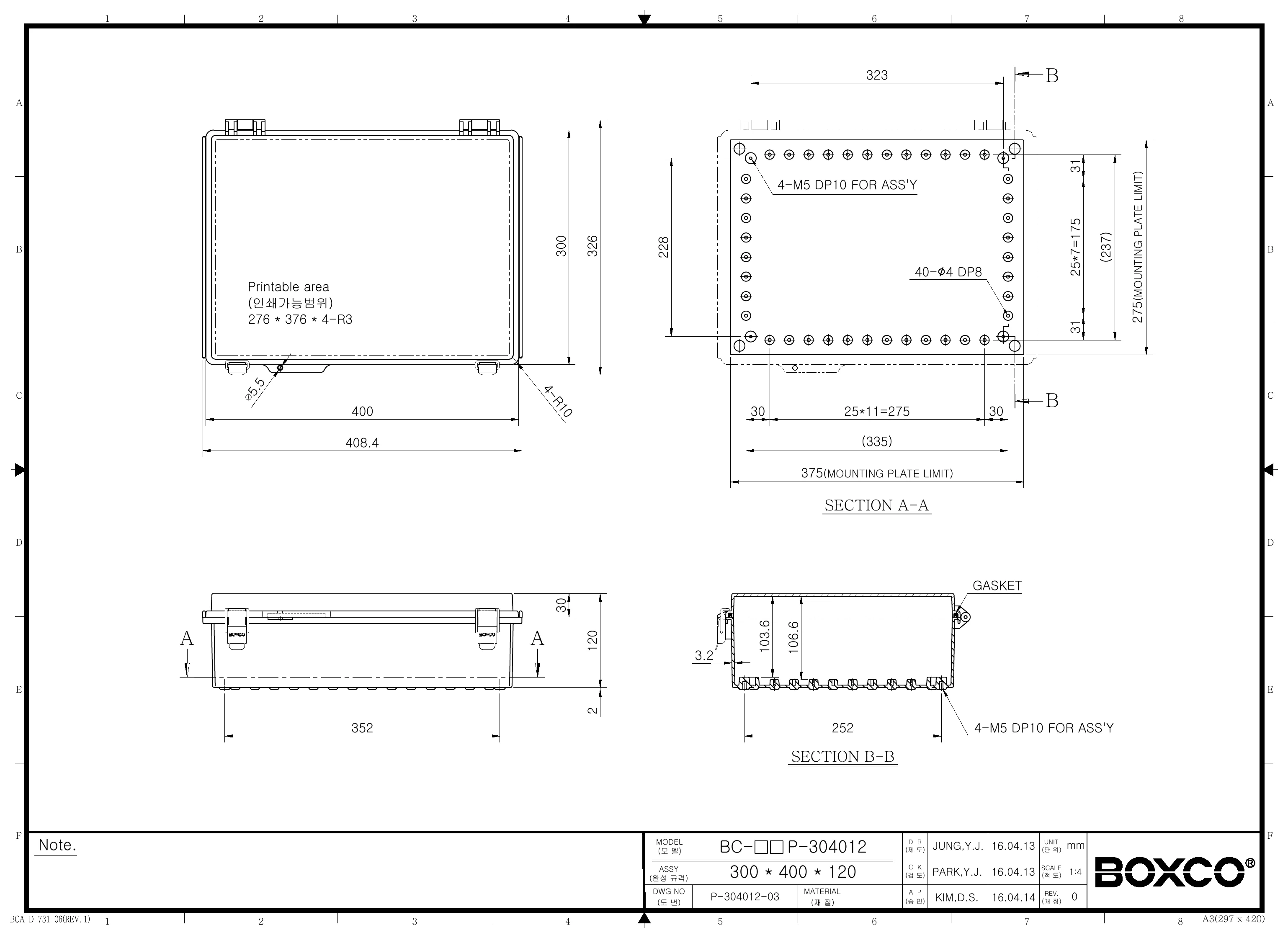

Technical drawings

BC-CGP-304012 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure typically used for?

This model is suited to protecting electrical or control components that need a sealed non-metallic enclosure in industrial or outdoor environments. Its IP67 sealing, IK08 impact rating, UV-stabilized polycarbonate construction, and anti-static material make it a practical choice where dust, water, impact resistance, and sensitive electronics protection all matter.

What are the size and material details for BC-CGP-304012?

The enclosure measures 11.81 x 15.75 x 4.72 inches, which corresponds to 300 x 400 x 120 mm. It is made from polycarbonate and comes with a grey cover in Boxco's molded hinge and latch style.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that ultraviolet stabilizer is added to the P-Series to support outdoor use and reduce visible color change over time. The design also includes roof protection features and an IP67 rating to help resist water and dust exposure.

How durable is this plastic enclosure in harsh conditions?

This model is rated IP67 for dust-tight and water-resistant performance and IK08 for impact resistance. Boxco also describes the body material as high-impact resistant, and the integrated hinge uses a stainless steel bearing to improve service life.

What makes this enclosure different from a basic plastic junction box?

This Boxco P-Series model goes beyond a basic box by combining molded hinge-and-latch access, IP67 sealing, IK08 impact resistance, UV stabilization, anti-static material, and pre-molded mounting screw nuts. Those features make it better suited for more demanding industrial or outdoor protection needs than a simple general-purpose enclosure.

What operating temperature range does this enclosure support?

The specified operating temperature range is -40 C to 110 C. That wide range makes it suitable for applications exposed to both low and high ambient temperatures, provided the installed internal components are also rated appropriately.
