Boxco P-Series 530x630x185mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-506018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-506018 is a 530×630×185 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-506018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
530×630×185 mm (20.87×24.80×7.28 in)
Mounting plate dimension M1 × M2
460 × 560 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
5060 P (Plastic, P type), 5060 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

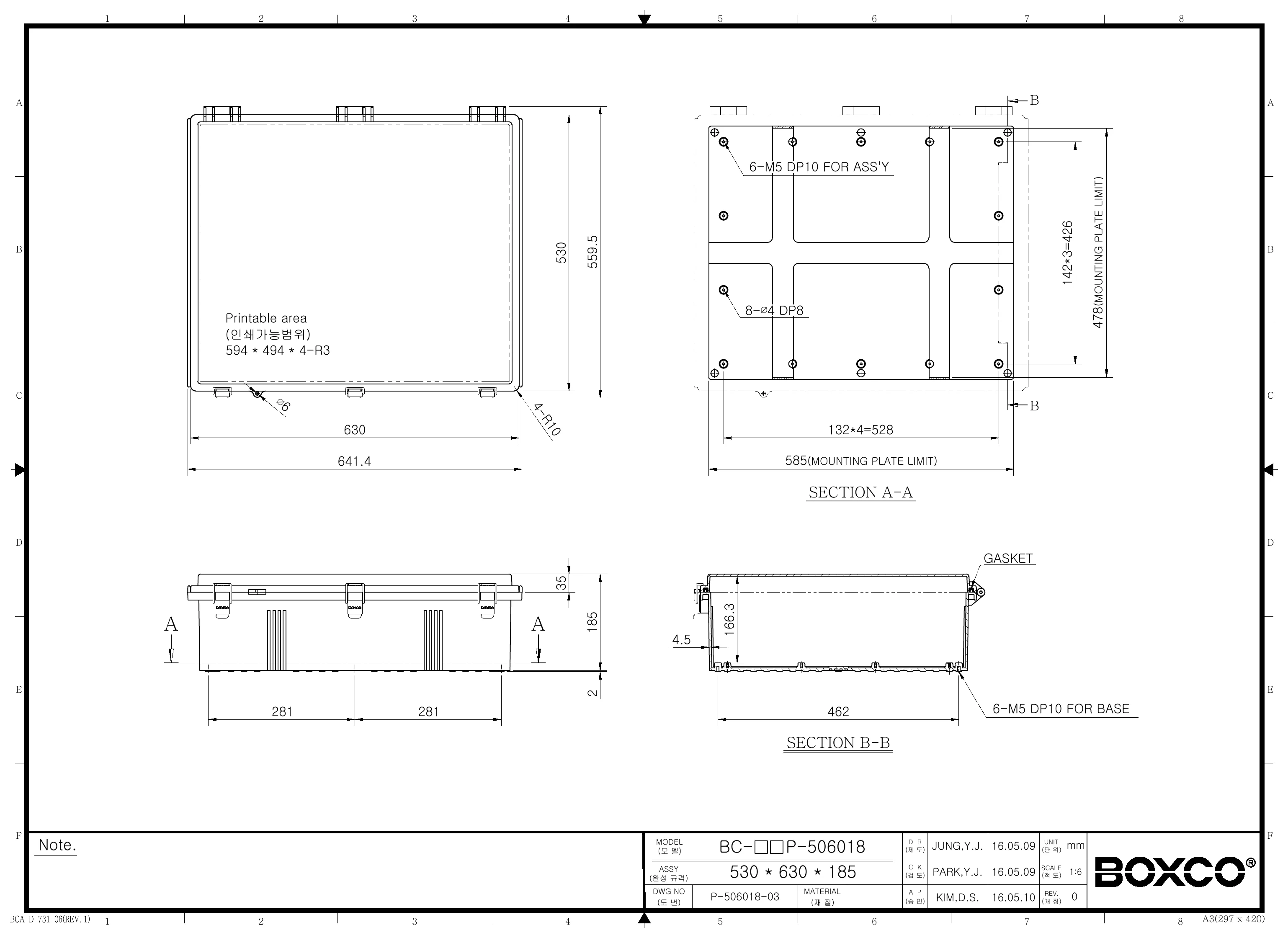

Technical drawings

BC-ATP-506018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What kind of enclosure is the Boxco BC-ATP-506018 designed for?

This model is a large plastic enclosure from the Boxco P-Series with a transparent cover, molded hinge, and latch-type closure. It is intended for protecting internal components in applications that need a durable non-metallic housing with strong dust and water resistance.

What are the key size and material specs for BC-ATP-506018?

The enclosure measures 20.87 x 24.80 x 7.28 inches, which is 530 x 630 x 185 mm. It is made from ABS and uses a transparent cover, making it suitable when internal components need to remain visible without opening the box.

Is the BC-ATP-506018 suitable for outdoor or washdown environments?

This enclosure is rated IP67, which indicates strong protection against dust ingress and temporary immersion in water under rated conditions. The product description also states that an ultraviolet stabilizer is added for outdoor use and that the roof-protection design helps reduce water and dust penetration during cover operation.

How impact-resistant is this Boxco P-Series enclosure?

The BC-ATP-506018 carries an IK08 impact rating. Boxco also describes the housing material as high impact resistant, which supports use in environments where the enclosure may be exposed to mechanical knocks or handling stress.

What cover and access features does the BC-ATP-506018 include?

This model includes a transparent cover, an integrated molded hinge, and a latch-type closure. The latch main part is described as stainless steel, and the hinge uses a stainless steel bearing to improve service life over repeated opening and closing.

What internal mounting support does this enclosure provide?

The enclosure includes pre-molded mounting screw nuts that can support DIN rail or other internal equipment mounting. It also has mounting plate attachment points with brass-inserted injection molding to help secure heavier equipment inside the enclosure.

What operating temperature range is specified for BC-ATP-506018?

The specified operating temperature range is -40 degrees C to 70 degrees C. That makes this model suitable for demanding environments where the enclosure may be exposed to both low and elevated ambient temperatures within that range.

How heavy is the Boxco BC-ATP-506018 enclosure?

The listed product weight is 16.926 kg. For a plastic enclosure, that indicates a substantial large-format housing intended for applications requiring a roomy and rugged enclosure body.
