Boxco

Boxco P-Series 530x630x255mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-506025
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-506025 is a 530×630×255 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-506025Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
530×630×255 mm (20.87×24.80×10.04 in)
Mounting plate dimension M1 × M2
460 × 560 mm

Material

Material
ABS
Cover
Grey
Mounting plates
5060 P (Plastic, P type), 5060 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

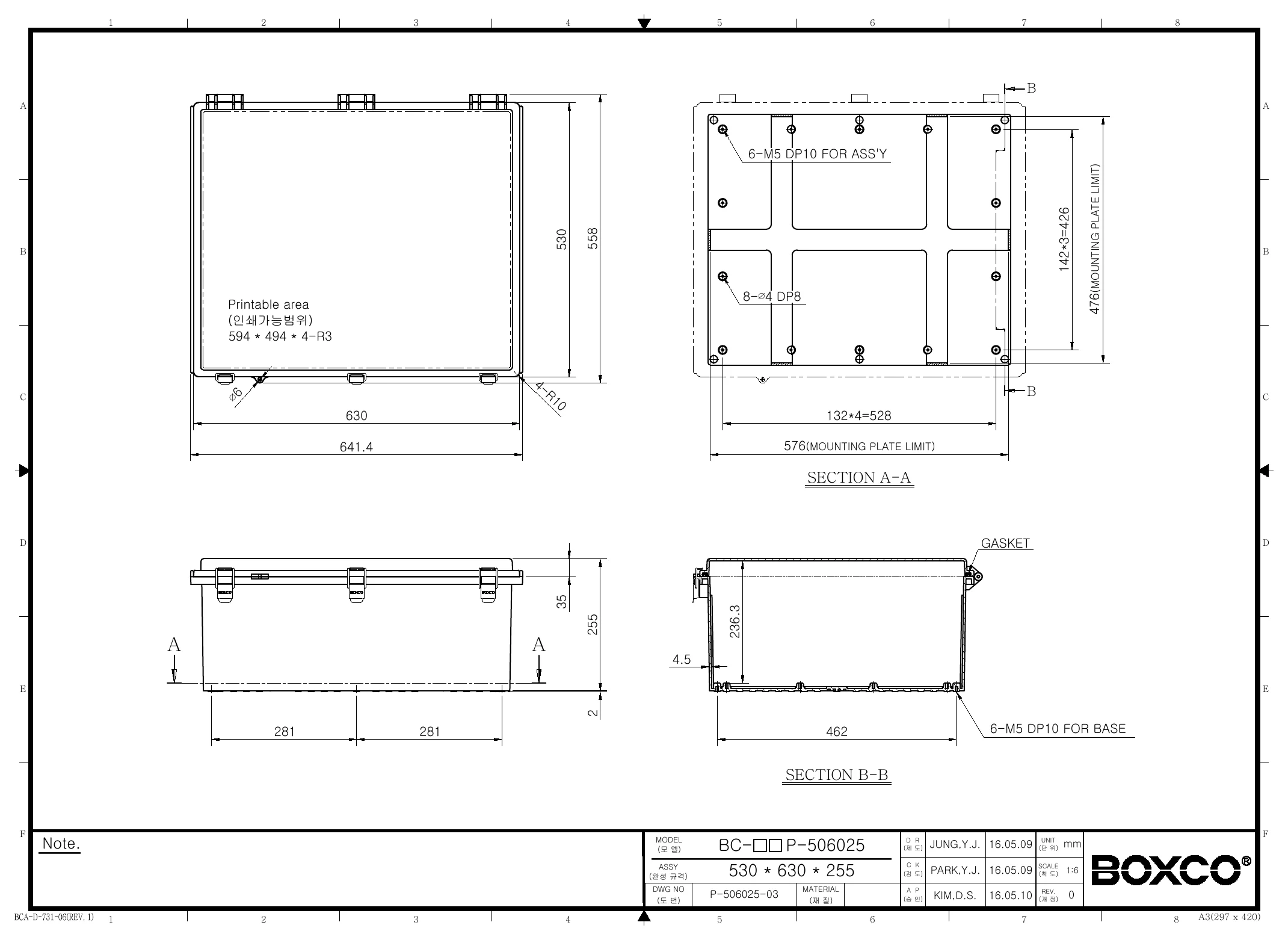

Technical drawings

BC-AGP-506025 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series 530 x 630 x 255mm enclosure suited for?

This enclosure is suited for protecting larger industrial or commercial equipment that needs a durable sealed housing. Its large internal size, molded hinge and latch design, and internal mounting plate attachment points make it a practical choice for control, monitoring, or protection applications where enclosure space and environmental resistance matter.

Is this plastic enclosure suitable for outdoor environments?

Yes, this model is built for outdoor use. The product description states that an ultraviolet stabilizer is added to help protect the enclosure outdoors, and the roof protection design helps reduce water and dust penetration during cover operation.

What environmental protection ratings does this enclosure have?

This model is rated IP67 and IK08. That means it is designed for strong protection against dust and water ingress and also provides impact resistance for demanding environments.

What material is this enclosure made from?

This Boxco P-Series enclosure is made from ABS and has a grey cover. The description also notes high impact resistant material and anti-static properties intended to help protect sensitive electronic instruments from static electricity.

What makes this model different from a basic plastic enclosure box?

This model includes several built-in features beyond a basic box, including a molded hinge and latch type cover, pre-molded mounting screw nuts, gasket sealing, roof protection, and mounting plate attachment points. It is designed as a more robust enclosure option for applications that need durability, weather resistance, and support for heavier internal components.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40°C to 70°C. That range supports use in both cold and warm industrial environments where standard plastic enclosures may be exposed to wider temperature variation.

Does this enclosure support mounting internal equipment?

Yes, the enclosure includes pre-molded mounting screw nuts and internal mounting plate attachment points. According to the product description, these features are intended to support secure installation of DIN rail or other internal equipment and to handle heavier installed components.
