Boxco

Boxco P-Series 530x630x255mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-506025
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATP-506025 is a 530×630×255 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-506025Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
530×630×255 mm (20.87×24.80×10.04 in)
Mounting plate dimension M1 × M2
460 × 560 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
5060 P (Plastic, P type), 5060 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

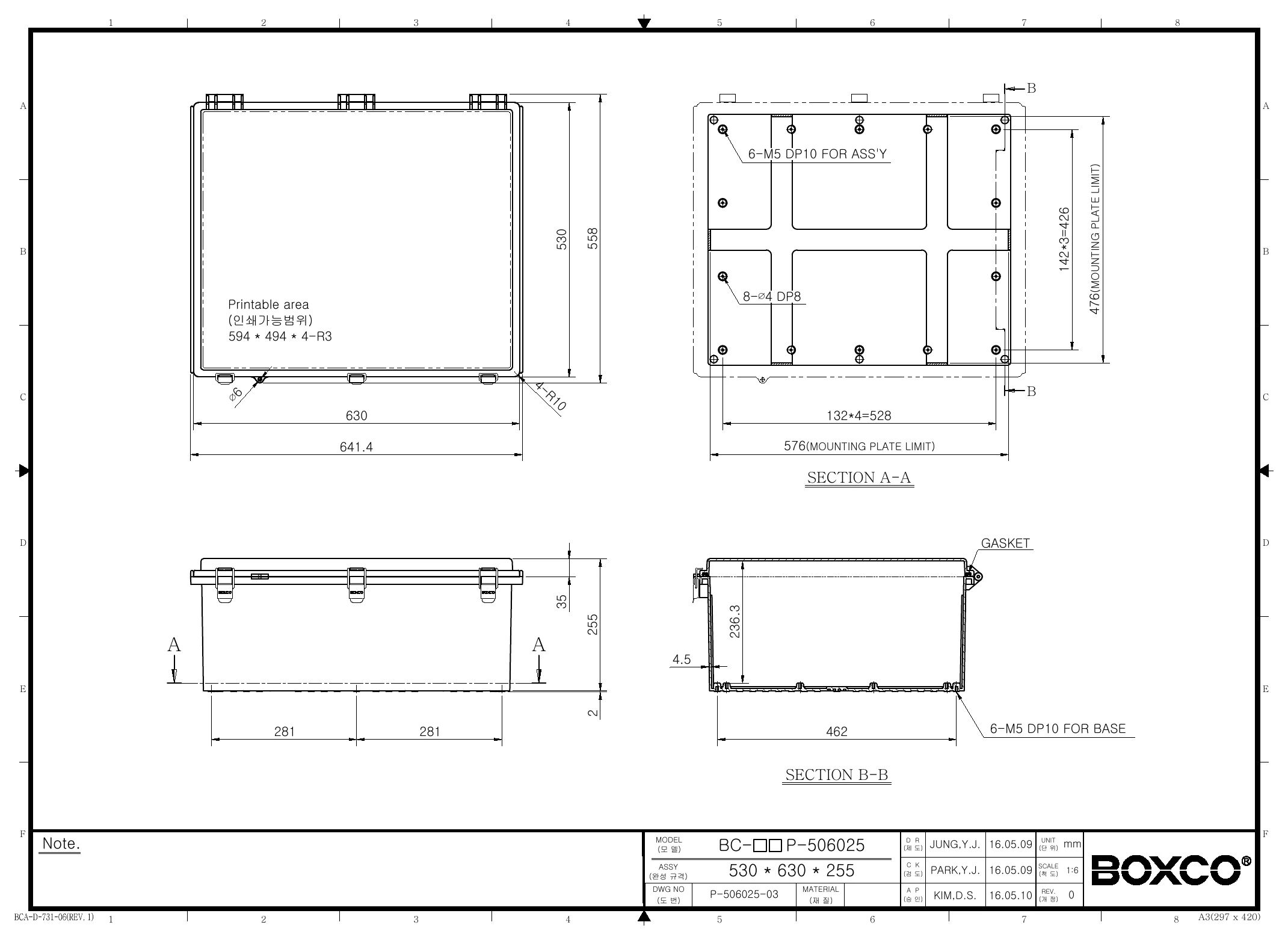

BC-ATP-506025 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco P-Series BC-ATP-506025 enclosure?

This model is a plastic enclosure made from ABS and measures 20.87 x 24.80 x 10.04 inches (530 x 630 x 255 mm). It is rated IP67 for dust and water protection and IK08 for impact resistance. It also includes a transparent cover and a molded hinge and latch design.

Is the BC-ATP-506025 suitable for outdoor use?

Yes. Boxco states that ultraviolet stabilizer is added to the P-Series to help protect the enclosure in outdoor use and reduce visible color change over time. The design also includes roof protection features intended to help resist water penetration and dust entry during cover opening and closing.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40 °C to 70 °C. That makes it suitable for many industrial and outdoor environments where equipment may face both low and elevated temperatures. Buyers should still confirm that the full application stays within that range.

What kind of applications is this enclosure commonly used for?

This enclosure is intended for protecting electrical or electronic equipment in demanding commercial and industrial environments. Its anti-static material makes it relevant for protecting sensitive electronic instruments from static electricity. The large format, transparent cover, and strong impact-resistant construction also make it a practical choice where internal components need protection and visual access.

How durable is the latch and hinge design on this model?

The main part of the draw latch is made of stainless steel for added strength. The hinge is integrated into the enclosure body, and its bearing is made of stainless steel to help increase service life. Combined with the IK08 impact rating, this model is built for more demanding enclosure applications.

Does this enclosure support internal mounting hardware or panels?

Yes. Boxco notes that the enclosure includes pre-molded mounting screw nuts and dedicated mounting plate attachment points. These features are intended to support secure mounting of internal hardware and heavier installed equipment inside the enclosure.
