Boxco

Boxco P-Series 110x210x75mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-112107
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-112107 is a 110×210×75 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-112107Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
110×210×75 mm (4.33×8.27×2.95 in)
Mounting plate dimension M1 × M2
77 × 176 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1121 P (Plastic, P type), 1020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

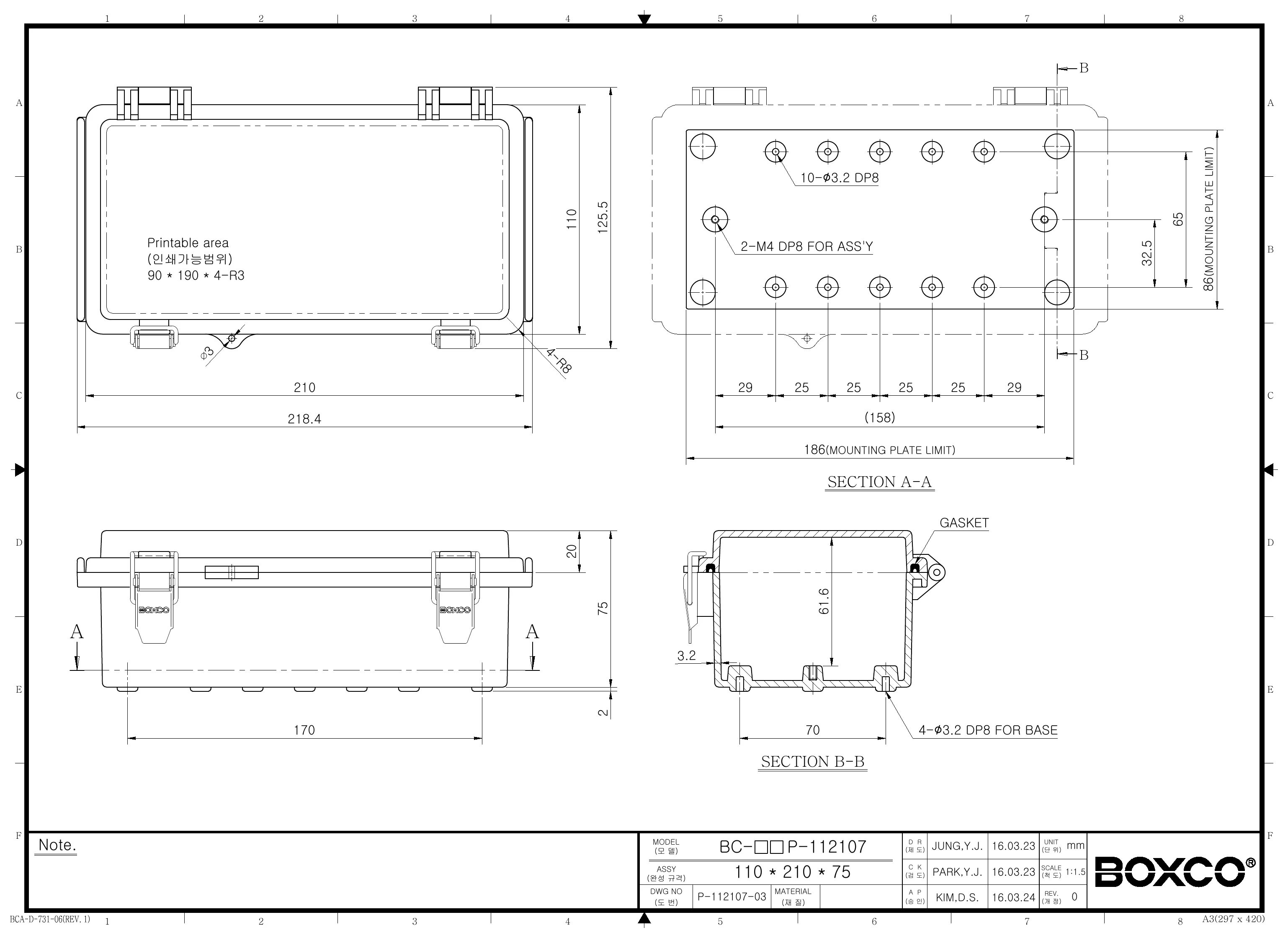

Technical drawings

BC-ATP-112107 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure commonly used for?

This enclosure is suited for protecting industrial and commercial electronics that need a sealed plastic housing in indoor or outdoor environments. Its IP67 protection, IK08 impact rating, and anti-static material make it a practical choice for control, monitoring, and instrumentation enclosures where durability matters.

Is this enclosure suitable for outdoor use?

Yes, this model is designed for outdoor exposure. The product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use, and the roof protection design helps reduce water and dust intrusion during cover opening and closing.

What are the key specifications of this enclosure?

This model measures 4.33 x 8.27 x 2.95 inches (110 x 210 x 75 mm) and is made from ABS with a transparent cover. It is rated IP67 for dust-tight and water-resistant protection, IK08 for impact resistance, operates from -40 C to 70 C, and weighs 0.374 kg.

How does the transparent cover help compared with a solid cover enclosure?

A transparent cover allows visual inspection of enclosed components or indicators without opening the box. For buyers who need quick status checks while maintaining enclosure protection, this can be more convenient than a comparable solid-cover model.

What mounting or internal equipment support features does this model include?

The enclosure includes pre-molded mounting screw nuts that can be used to secure DIN rail or other internal equipment. It also has internal mounting plate attachment points with brass inserted injection molding for handling heavier installed components more securely.

What makes this enclosure durable for demanding environments?

This model uses high impact resistant material and carries an IK08 impact rating, which helps it stand up to external impact. It also features a molded hinge with a stainless steel bearing, a stainless steel latch component, and a precision-injected gasket for strong long-term sealing performance.
