Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 110x260x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-112610
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-112610 is a 110×260×100 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-112610Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
110×260×100 mm (4.33×10.24×3.94 in)
Mounting plate dimension M1 × M2
76 × 225 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1126 P (Plastic, P type), 1126 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

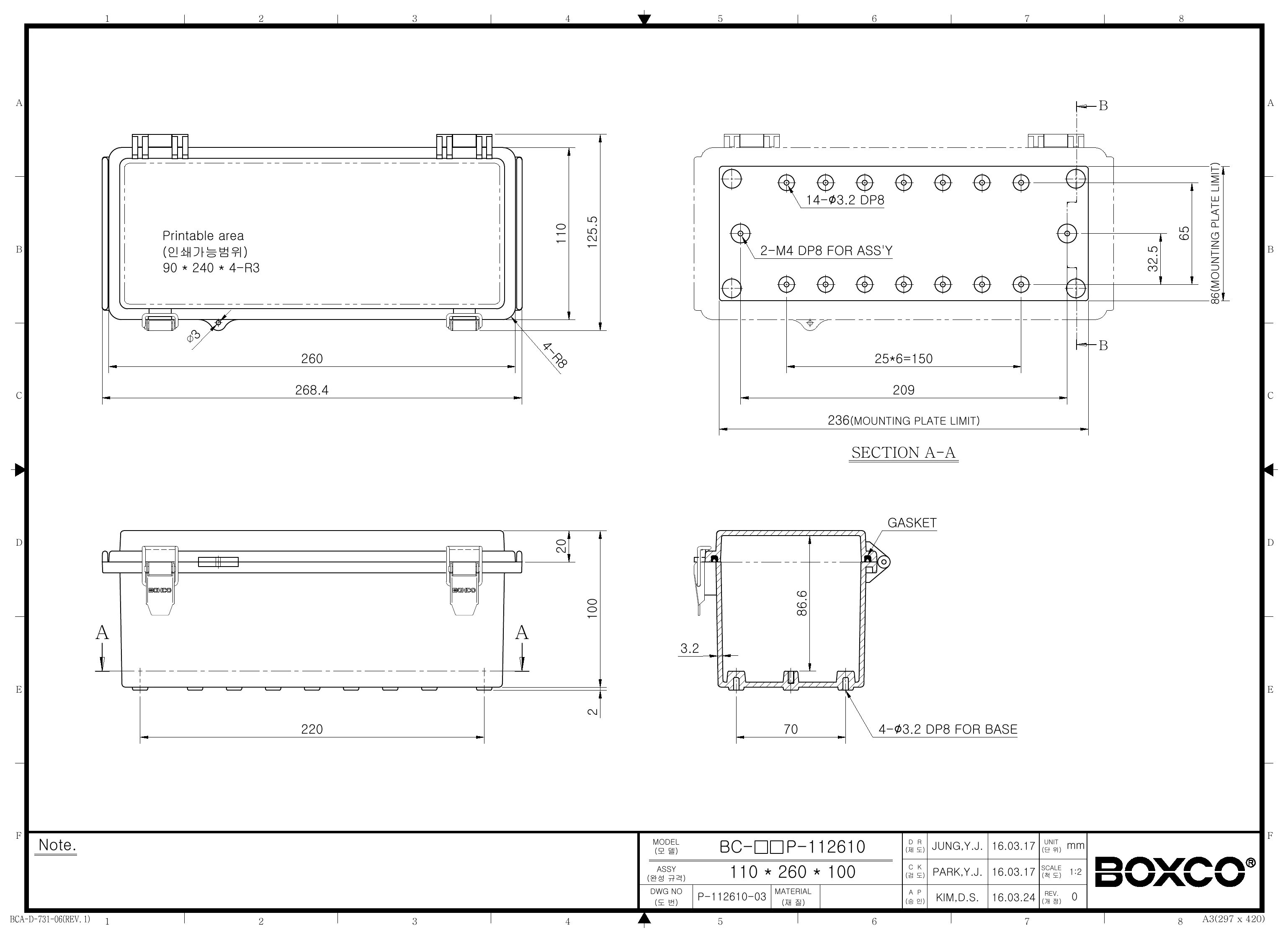

Technical drawings

BC-AGP-112610 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main material and protection ratings for the Boxco P-Series BC-AGP-112610 enclosure?

This model is an ABS plastic enclosure with a grey cover and an integrated molded hinge and latch design. It is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance, which makes it suitable for protecting enclosed components in demanding environments.

Can this enclosure be used outdoors or in exposed industrial areas?

Yes, this P-Series enclosure is described as having ultraviolet stabilizer added for outdoor usage, helping reduce visible color change over time. The IP67 rating, roof protection details, and molded gasket design also support use where dust and water exposure are concerns.

What kinds of applications is this plastic enclosure typically suited for?

This enclosure is intended for protecting sensitive electronic instruments and other internal equipment that need a sealed, impact-resistant housing. Its anti-static material, waterproof sealing features, and internal mounting provisions make it a practical choice for industrial control, monitoring, or outdoor electronics protection.

Does the BC-AGP-112610 support mounting internal components securely?

Yes, the enclosure includes pre-molded mounting screw nuts and dedicated attachment points for an internal mounting plate. The product description also notes brass inserted injection molding to help support heavier equipment installed inside the enclosure.

What distinguishes this hinged Boxco P-Series enclosure from a basic non-hinged project box?

This model is built around a molded hinge and latch-style cover, so it is designed for repeated opening and closing rather than simple one-time access. It also adds application-specific features such as roof protection, a CNC-injected gasket, stainless steel latch components, and stainless bearing support in the hinge.

What are the dimensions, operating temperature range, and weight of this enclosure?

The listed size is 4.33 x 10.24 x 3.94 inches, which corresponds to 110 x 260 x 100 mm. Its operating temperature range is -40 C to 70 C, and the enclosure weight is 0.493 kg.

Is this enclosure appropriate for protecting electronics from static and physical impact?

Yes, the product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. It is also made from high impact resistant material and carries an IK08 impact rating, supporting use where mechanical durability matters.

What warranty period is listed for the Boxco P-Series BC-AGP-112610?

The listed warranty period for this model is 1 year. That gives buyers a clear baseline for standard product coverage on this enclosure.
