Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 135x155x85mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-131508
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-131508 is a 135×155×85 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-131508Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
135×155×85 mm (5.31×6.10×3.35 in)
Mounting plate dimension M1 × M2
102 × 122 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1315 P (Plastic, P type), 1315 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

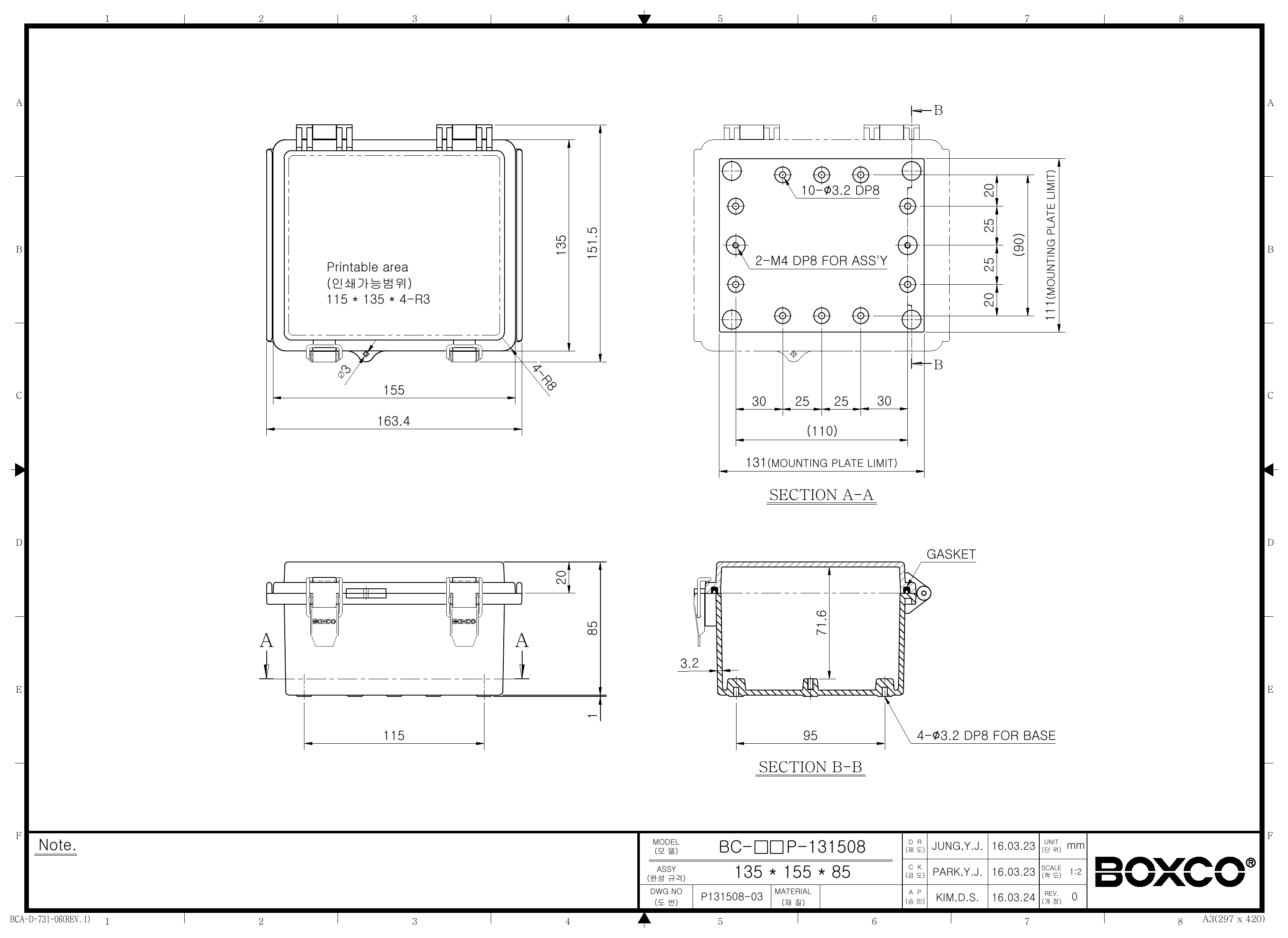

Technical drawings

BC-ATP-131508 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the size of the Boxco P-Series BC-ATP-131508 enclosure?

This enclosure measures 5.31 x 6.10 x 3.35 inches, which is 135 x 155 x 85 mm. That size makes it suitable for protecting compact to medium-sized industrial or electrical components inside a sealed plastic housing.

Is the BC-ATP-131508 enclosure suitable for outdoor environments?

Yes, this model is designed for outdoor use. The enclosure includes an ultraviolet stabilizer to reduce color change over time, and its roof protection and gasket design help resist water and dust intrusion.

What protection ratings does this plastic enclosure have?

The BC-ATP-131508 is rated IP67 and IK08. That means it is built for strong dust and water resistance and also offers solid impact protection for demanding commercial and industrial environments.

What material is used for this Boxco enclosure, and why does it matter?

This model is made from ABS plastic and includes anti-static material for protecting sensitive electronic instruments from static electricity. The housing is also described as high impact resistant, helping reduce breakage during machining or processing.

Does this enclosure have a clear cover for visual inspection?

Yes, this version includes a transparent cover. That can be useful when buyers need to check indicators, labels, or internal components without opening the enclosure.

What operating temperature range is supported by the BC-ATP-131508?

This enclosure is rated for use from -40 degrees C to 70 degrees C. That range supports use in both cold and hot environments where a standard indoor-only enclosure may not be suitable.
