Boxco

Boxco P-Series 170x270x110mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-172711
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-172711 is a 170×270×110 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-172711Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
170×270×110 mm (6.69×10.63×4.33 in)
Mounting plate dimension M1 × M2
129 × 229 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1525 G (Plastic, G type), 1525 P (Plastic, P type), 1525 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

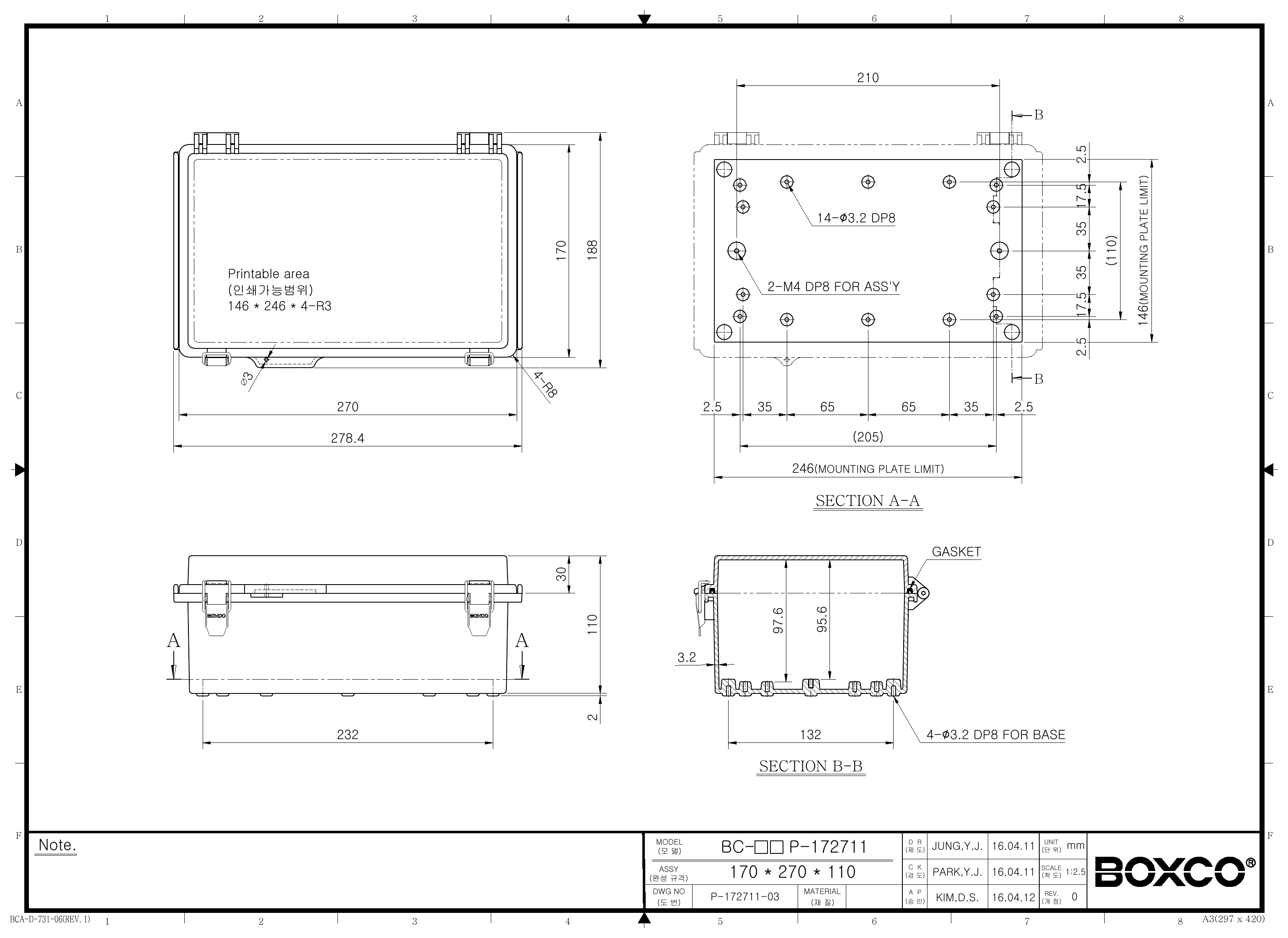

BC-AGP-172711 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-AGP-172711 enclosure suited for?

This enclosure is suited for protecting industrial and commercial electrical or electronic components that need a sealed non-metallic housing. Its IP67 rating, IK08 impact rating, and outdoor-focused material features make it a practical choice for demanding indoor or outdoor environments.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure for outdoor usage and reduce visible color change over time. The design also includes roof protection features intended to help limit water penetration outdoors.

What are the main material and protection specifications for this model?

This model is made from ABS and has a grey cover with a molded hinge and latch design. It is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. The operating temperature range is -40 degrees C to 70 degrees C.

Does this enclosure support mounting internal components?

Yes. The enclosure includes pre-molded mounting screw nuts for securing DIN rail or other internal equipment, and it also has internal mounting plate attachment points. These features are intended to support organized component mounting inside the enclosure body.

How does this model differ from a basic plastic enclosure box?

This Boxco P-Series model adds several durability and sealing-oriented features beyond a basic plastic box, including an IP67 rating, IK08 impact resistance, integrated hinge construction, stainless steel latch components, and a precision-injected gasket. It is also described as using UV-stabilized, anti-static, high-impact-resistant material for more demanding applications.

What size is the BC-AGP-172711 enclosure?

The enclosure measures 6.69 x 10.63 x 4.33 inches, which corresponds to 170 x 270 x 110 mm. This size can be useful when planning internal space for mounted equipment and overall panel or enclosure layout.
