Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 190x280x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-192810
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-192810 is a 190×280×100 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-192810Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×280×100 mm (7.48×11.02×3.94 in)
Mounting plate dimension M1 × M2
159 × 249 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1928 PG (Plastic, PG type), 1928 P (Plastic, P type), 1928 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

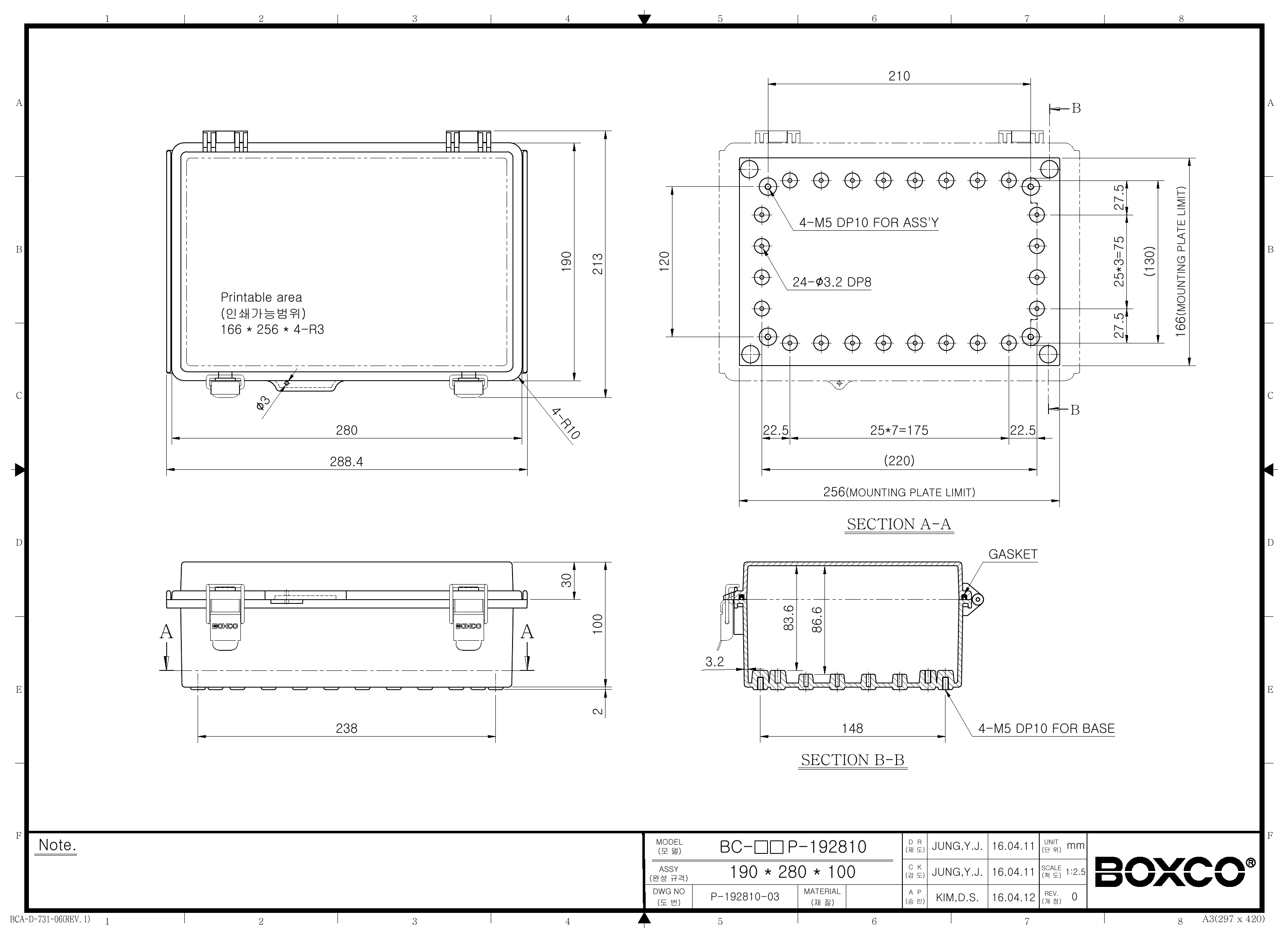

Technical drawings

BC-AGP-192810 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This model is designed for protecting electronic and control components in industrial and commercial environments where dust, moisture, and impact resistance matter. Its molded hinge and latch design, ABS construction, and outdoor-oriented material features make it a practical choice for equipment housings, control enclosures, and general-purpose protective box applications.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping limit visible color change over time. It also includes roof protection features and an IP67 rating to support strong resistance to water and dust exposure.

What level of environmental protection does this enclosure provide?

This enclosure is rated IP67, which indicates a high level of protection against dust ingress and water exposure. It also uses a precision-injected gasket and protective roof design to support waterproof and dust-proof performance in demanding environments.

How durable is the Boxco P-Series 190 x 280 x 100 mm enclosure?

This model is made from high impact resistant ABS and carries an IK08 impact rating. The latch uses stainless steel in the main draw latch part, and the integrated hinge includes a stainless steel bearing to improve service life.

What are the size and material details for this enclosure?

This specific model measures 7.48 x 11.02 x 3.94 inches, which is 190 x 280 x 100 mm. It is made of ABS and has a grey cover, with a listed product weight of 0.714 kg.

Can this enclosure be used in hot or cold environments?

This model has a stated operating temperature range of -40 °C to 70 °C. That range makes it suitable for many industrial and outdoor environments where equipment may face both low and elevated temperatures.

Does this enclosure support internal equipment mounting?

Yes. The product description notes pre-molded mounting screw nuts for securing DIN rail or other equipment, along with dedicated attachment points for an internal mounting plate. These features are intended to support organized internal component mounting inside the enclosure.
