Boxco

Boxco P-Series 190x280x100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-192810
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-192810 is a 190×280×100 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-192810Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×280×100 mm (7.48×11.02×3.94 in)
Mounting plate dimension M1 × M2
159 × 249 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1928 PG (Plastic, PG type), 1928 P (Plastic, P type), 1928 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

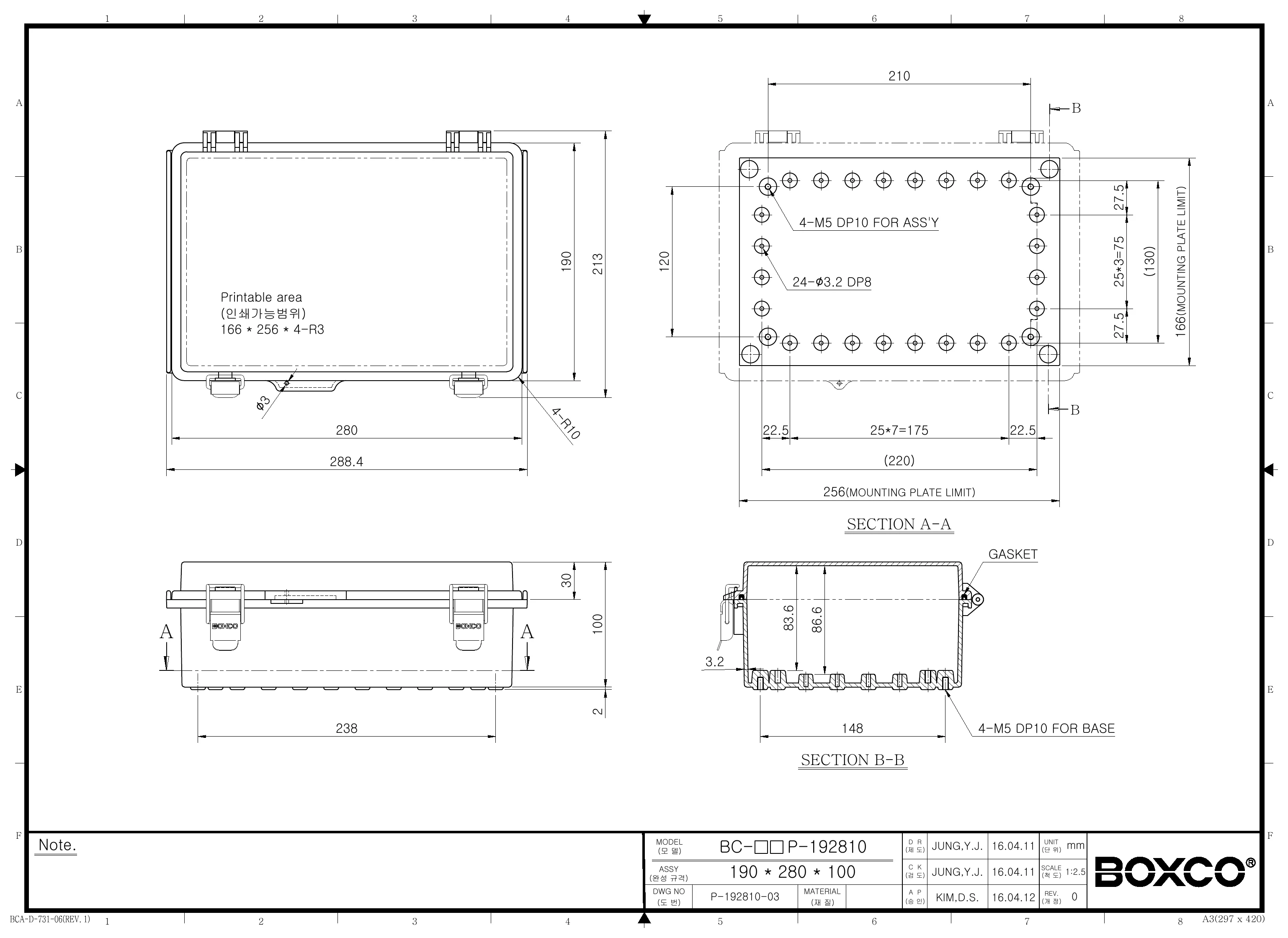

Technical drawings

BC-ATP-192810 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-ATP-192810 enclosure best suited for?

This model is suited to protecting electronic controls and instruments that need a sealed non-metallic enclosure in indoor or outdoor settings. Its IP67 rating, IK08 impact resistance, UV-stabilized ABS body, and transparent cover make it a practical choice for equipment that benefits from both environmental protection and visual inspection.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that this P-Series enclosure includes an ultraviolet stabilizer to help preserve the housing during outdoor exposure, with only limited color change over time. The design also includes roof protection at both ends plus a precision-injected gasket to support water and dust resistance at the IP67 level.

What are the key specifications of the BC-ATP-192810 enclosure?

This enclosure measures 7.48 x 11.02 x 3.94 inches, or 190 x 280 x 100 mm, and weighs 0.762 kg. It is made from ABS, uses a transparent cover, carries IP67 and IK08 ratings, and is specified for operation from -40 °C to 70 °C with a 1-year warranty.

What makes this model different from a basic plastic enclosure?

This P-Series model adds several features beyond a plain box, including a molded hinge, latch-style closure, transparent cover, UV-stabilized material, and anti-static properties. It also includes pre-molded mounting screw nuts, mounting plate attachment points, and stainless steel components in the latch and hinge bearing for added durability.

Can this enclosure support internal mounting hardware or heavier components?

Yes. Boxco includes pre-molded mounting screw nuts so internal equipment such as DIN rail accessories or other mounted hardware can be secured more easily. The enclosure also has internal mounting plate attachment points with brass-inserted molding to hold mounting plates more firmly when heavier equipment is used inside.

Is this enclosure appropriate for sensitive electronic equipment?

Yes, this model uses anti-static material intended to help protect sensitive electronic instruments from static electricity. Boxco also describes the housing as high impact resistant, which helps reduce breakage risk during machining or press processing for customized panel work.
