Boxco P-Series 280x380x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-283813
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATP-283813 is a 280×380×130 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-283813Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×380×130 mm (11.02×14.96×5.12 in)
Mounting plate dimension M1 × M2
249 × 348 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
2838 PG (Plastic, PG type), 2838 P (Plastic, P type), 2838 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

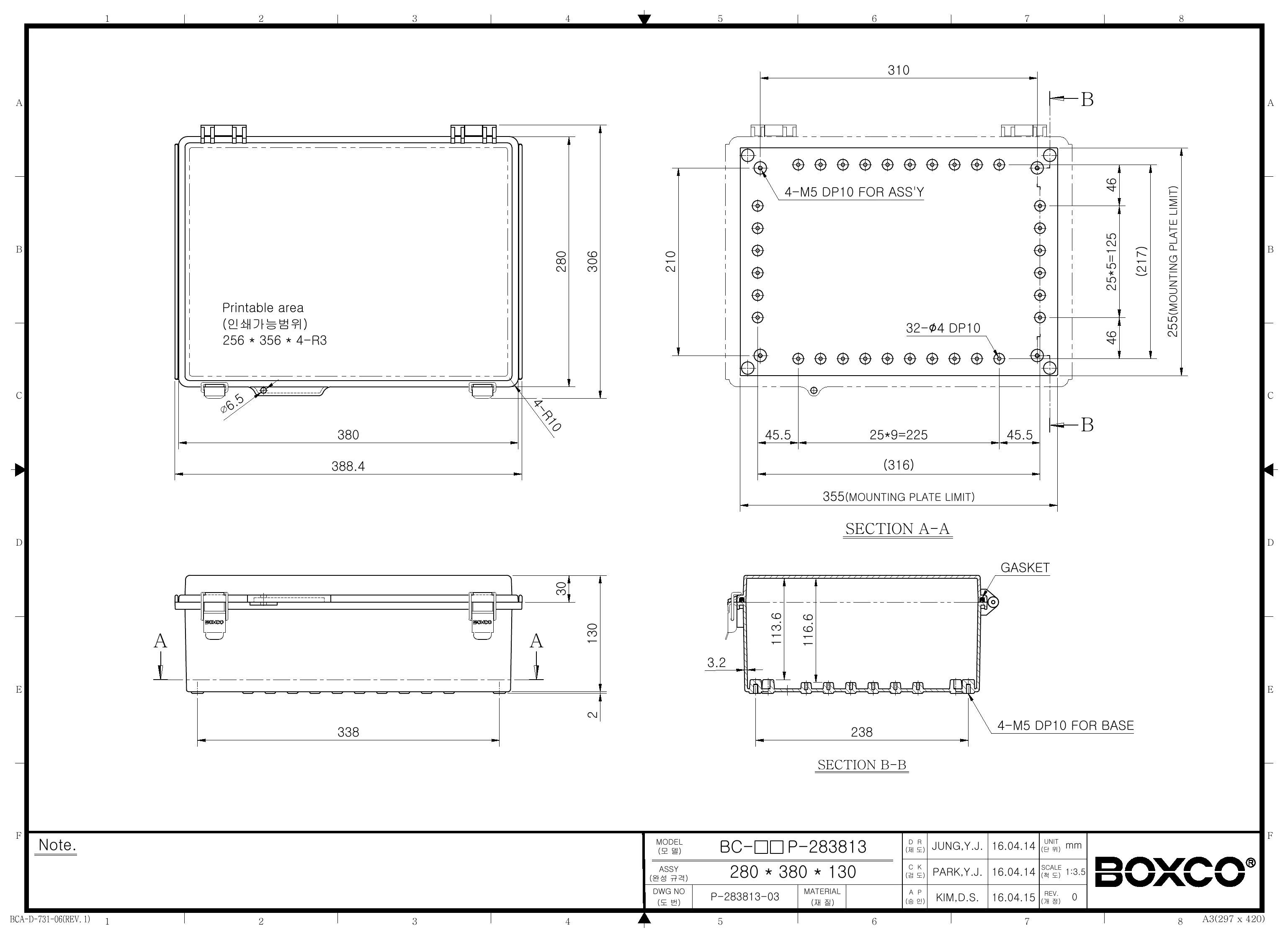

Technical drawings

BC-ATP-283813 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure typically used for?

This enclosure is designed to protect electronic and industrial components in demanding indoor or outdoor environments. Its ABS construction, transparent cover, and molded hinge-and-latch design make it a practical choice when equipment needs both protection and quick visual inspection.

What are the dimensions of this enclosure?

This model measures 11.02 x 14.96 x 5.12 inches, which is 280 x 380 x 130 mm. That size provides a relatively large enclosure footprint for housing larger control, monitoring, or protection assemblies.

How protective is this enclosure against water, dust, and impact?

This enclosure is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. It also carries an IK08 impact rating, showing it is built to resist a meaningful level of mechanical impact in industrial settings.

Is this enclosure suitable for outdoor use?

Yes, the product description states that an ultraviolet stabilizer is added for outdoor usage. The design also includes roof protection features and a precision-injected gasket to support water and dust resistance in exposed environments.

What material is this enclosure made from, and why does that matter?

This model is made from ABS, a high-impact-resistant plastic used for durability and resistance to breakage during processing. The description also notes anti-static material properties to help protect sensitive electronic instruments from static electricity.

What is the operating temperature range for this enclosure?

The stated operating temperature range is -40 degrees C to 70 degrees C. That makes this model suitable for use across a wide range of cold and warm industrial or outdoor conditions.

Does this enclosure have features for mounting internal components?

Yes, it includes pre-molded mounting screw nuts for securing DIN rail or other equipment, and it also has mounting plate attachment points. These built-in features support organized internal equipment placement without requiring a different enclosure style.
