Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 170x270x110mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-172711
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-172711 is a 170×270×110 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-172711Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
170×270×110 mm (6.69×10.63×4.33 in)
Mounting plate dimension M1 × M2
129 × 229 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1525 G (Plastic, G type), 1525 P (Plastic, P type), 1525 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

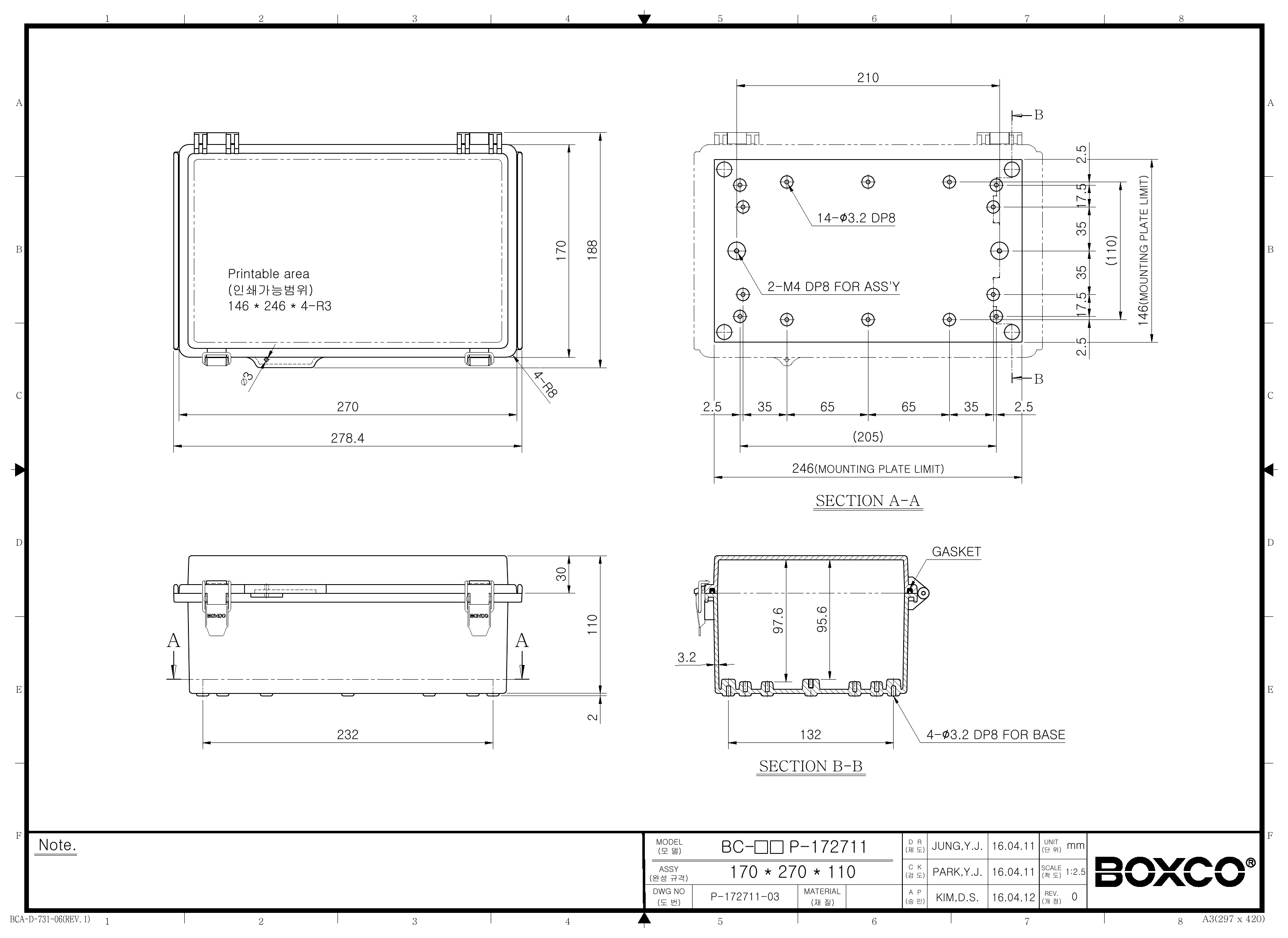

BC-ATP-172711 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure typically used for?

This enclosure is designed to protect electronic and electrical components in industrial or commercial environments where dust, water, and impact resistance matter. Its outdoor-ready material features and transparent cover make it suitable for applications that need equipment protection along with quick visual inspection.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce color change over time. Its IP67 rating and roof protection design also support resistance to water and dust in exposed environments.

What are the key material and durability features of this model?

This model is made from ABS and is described as high impact resistant, with an IK08 impact rating. It also includes a transparent cover, an integrated molded hinge with a stainless steel bearing, and a stainless steel latch component for added durability.

How much internal protection does this enclosure provide against dust and water?

This enclosure is rated IP67, which indicates a high level of protection against dust ingress and water exposure. The product description also highlights a precision-injected gasket and protective roof design that help maintain waterproof and dust-proof performance.

What size is this enclosure?

This Boxco P-Series enclosure measures 6.69 x 10.63 x 4.33 inches, which corresponds to 170 x 270 x 110 mm. That size makes it appropriate for larger control or protection applications that need more internal space than compact utility boxes.

Does this enclosure support mounting internal components?

Yes. The description notes pre-molded mounting screw nuts for securing DIN rail or other equipment, along with internal mounting plate attachment points. These features make it better suited for organized component placement than a plain empty box.

What operating temperature range can this enclosure handle?

This model is specified for use from -40 °C to 70 °C. That range supports use in a wide variety of industrial and outdoor conditions, provided the rest of the installed equipment is rated for the same environment.
