Boxco

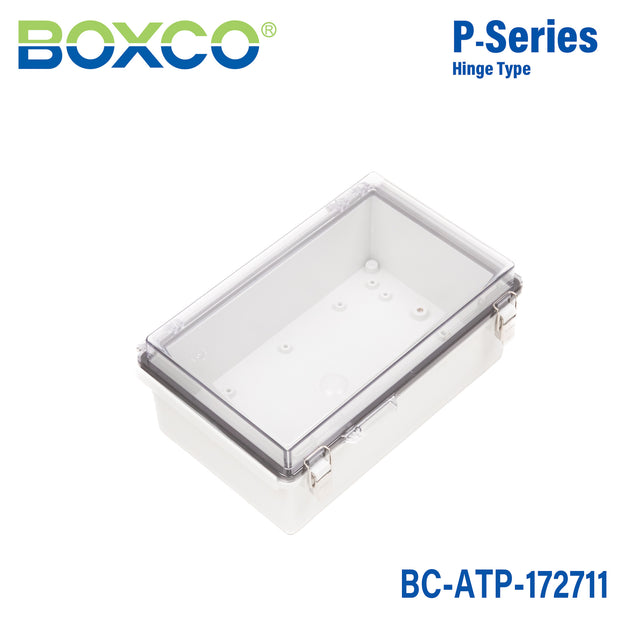

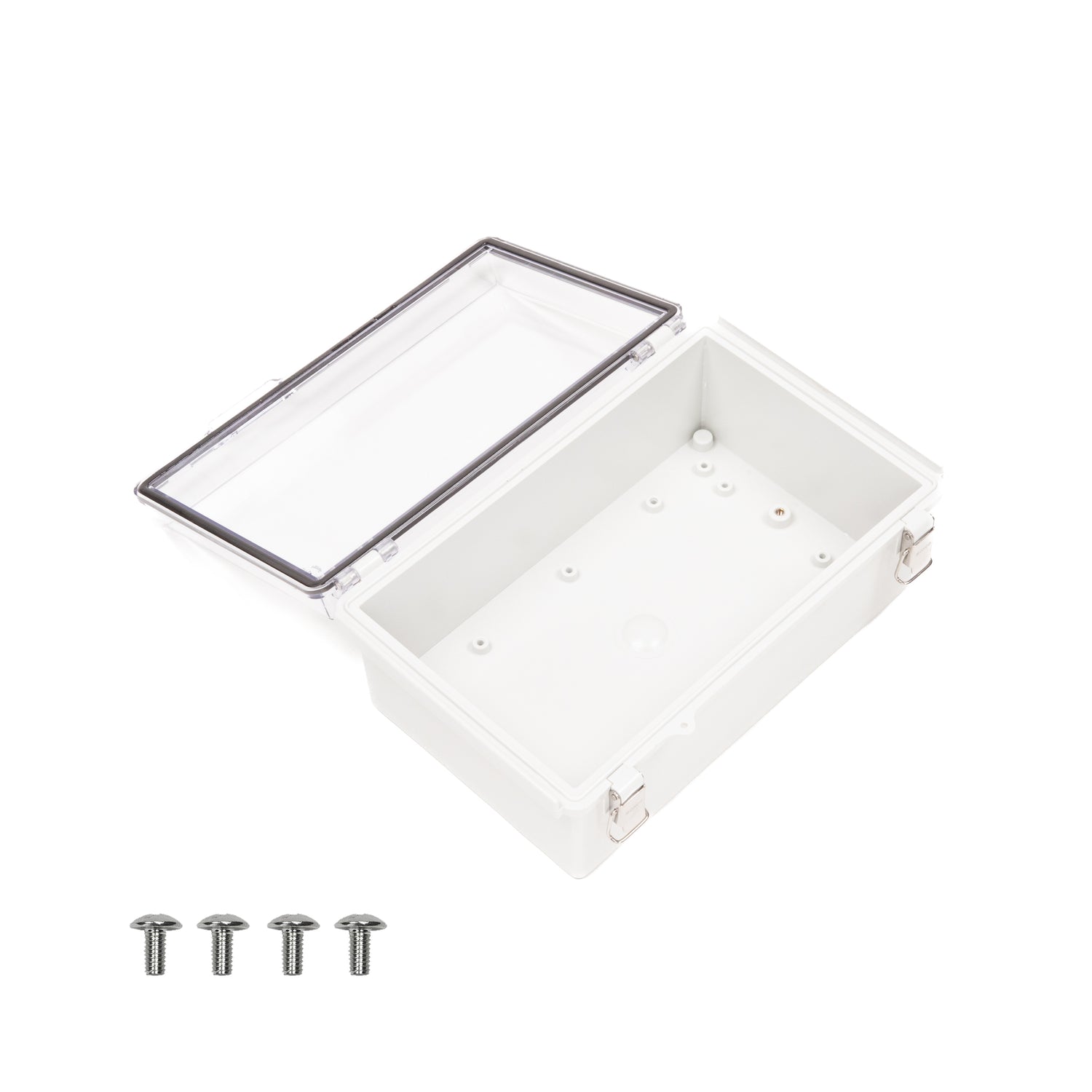

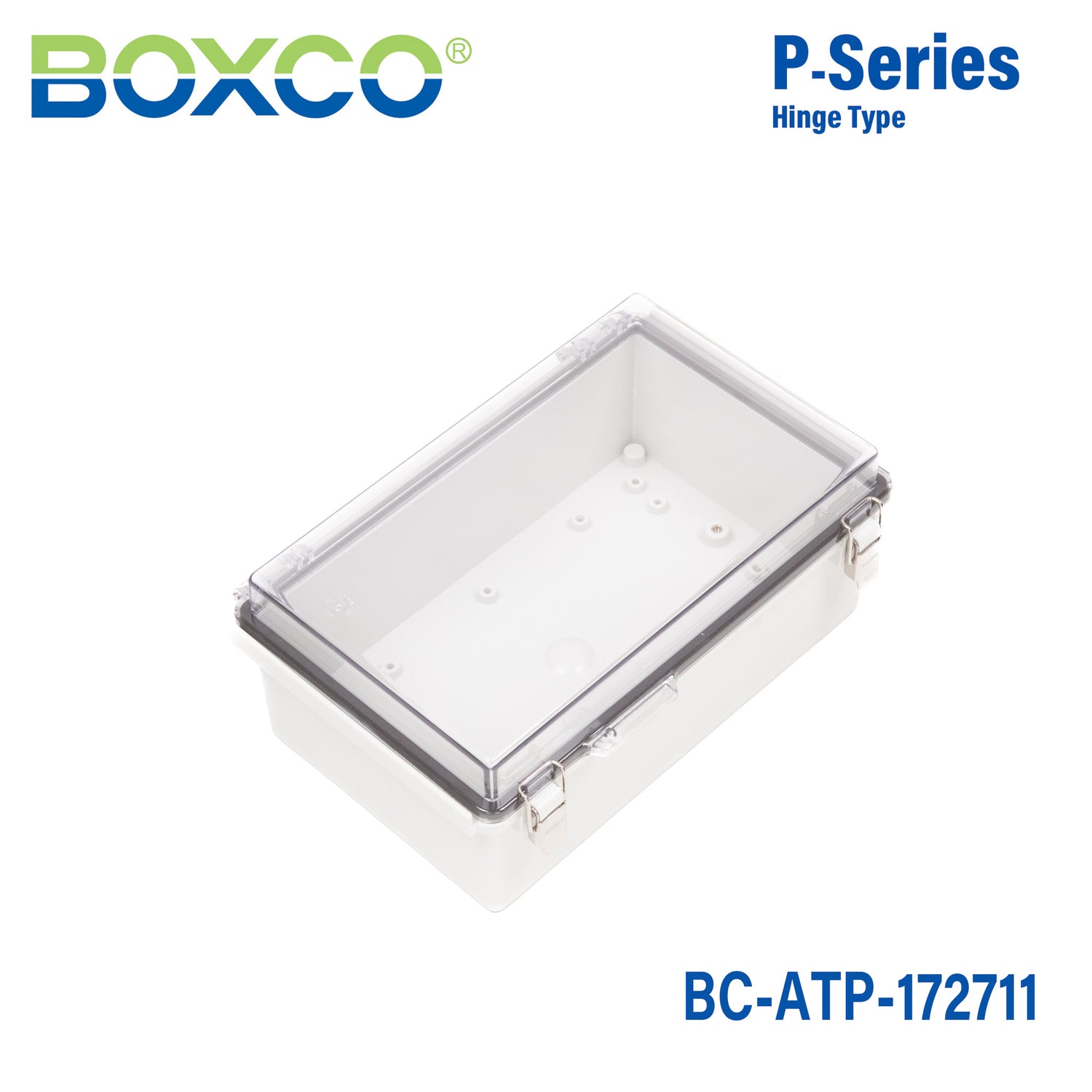

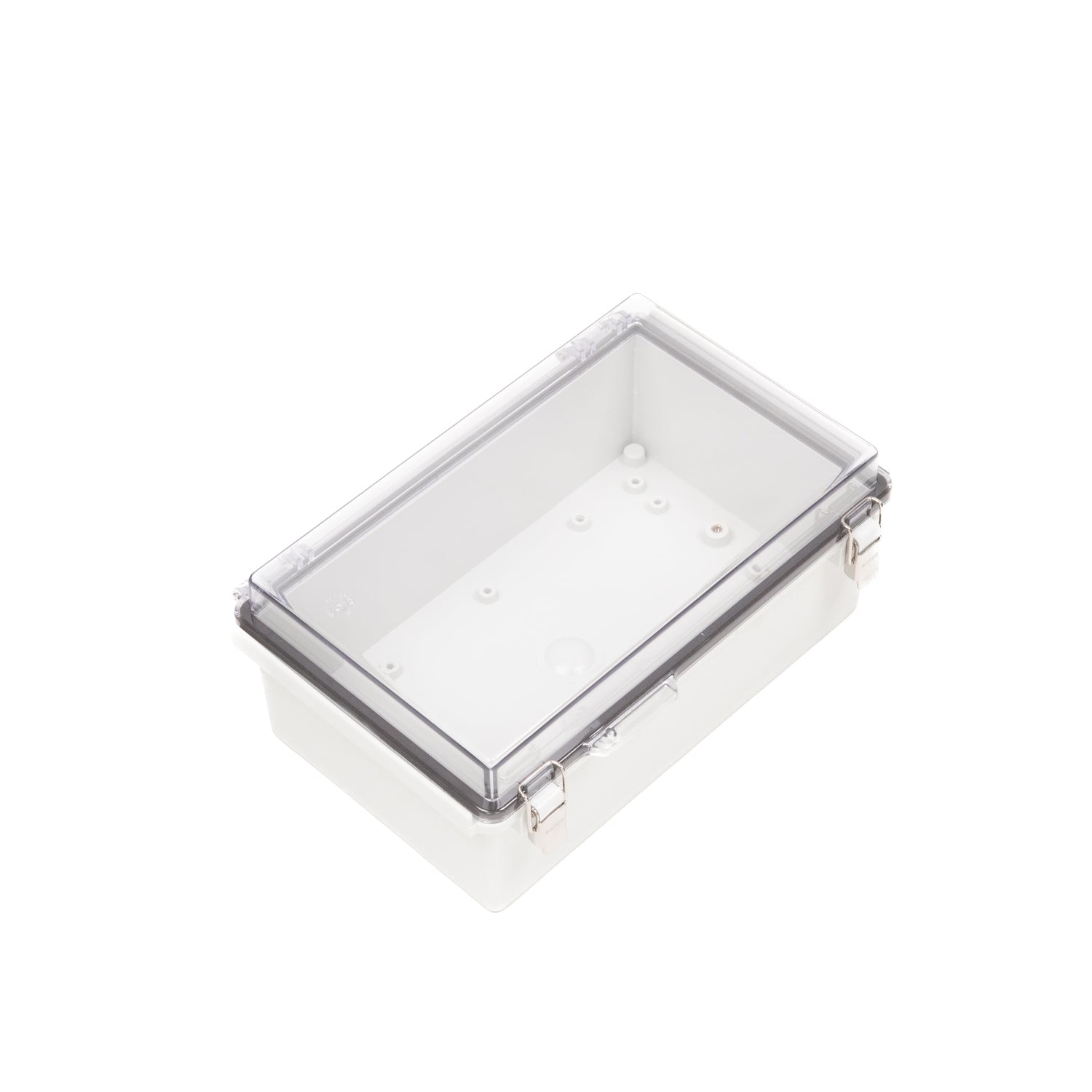

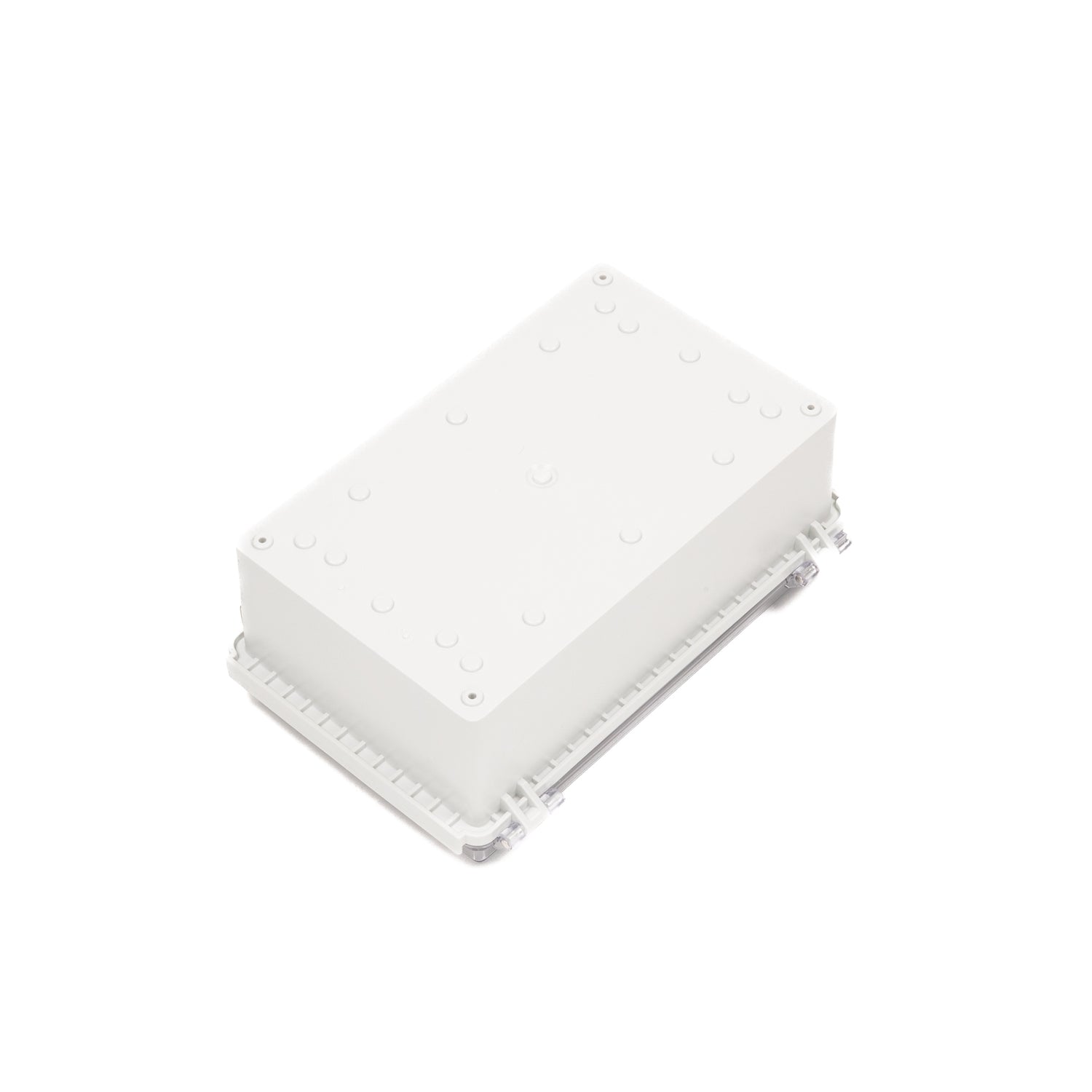

Boxco P-Series 170x270x110mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU:
BC-ATP-172711
Please for Pricing
|

Description

For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

  • Latch - Main part of the draw latch is made of stainless steel so it is very strong.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
  • Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.

Specifications
  • Brand
    Boxco
  • Series
    Boxco P Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    17 cm
  • Width
    27 cm
  • Height
    11 cm
  • Weight
    0.69 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is this Boxco P-Series enclosure typically used for?

This enclosure is designed to protect electronic and electrical components in industrial or commercial environments where dust, water, and impact resistance matter. Its outdoor-ready material features and transparent cover make it suitable for applications that need equipment protection along with quick visual inspection.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce color change over time. Its IP67 rating and roof protection design also support resistance to water and dust in exposed environments.

What are the key material and durability features of this model?

This model is made from ABS and is described as high impact resistant, with an IK08 impact rating. It also includes a transparent cover, an integrated molded hinge with a stainless steel bearing, and a stainless steel latch component for added durability.

How much internal protection does this enclosure provide against dust and water?

This enclosure is rated IP67, which indicates a high level of protection against dust ingress and water exposure. The product description also highlights a precision-injected gasket and protective roof design that help maintain waterproof and dust-proof performance.

What size is this enclosure?

This Boxco P-Series enclosure measures 6.69 x 10.63 x 4.33 inches, which corresponds to 170 x 270 x 110 mm. That size makes it appropriate for larger control or protection applications that need more internal space than compact utility boxes.

Does this enclosure support mounting internal components?

Yes. The description notes pre-molded mounting screw nuts for securing DIN rail or other equipment, along with internal mounting plate attachment points. These features make it better suited for organized component placement than a plain empty box.

What operating temperature range can this enclosure handle?

This model is specified for use from -40 °C to 70 °C. That range supports use in a wide variety of industrial and outdoor conditions, provided the rest of the installed equipment is rated for the same environment.
