Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

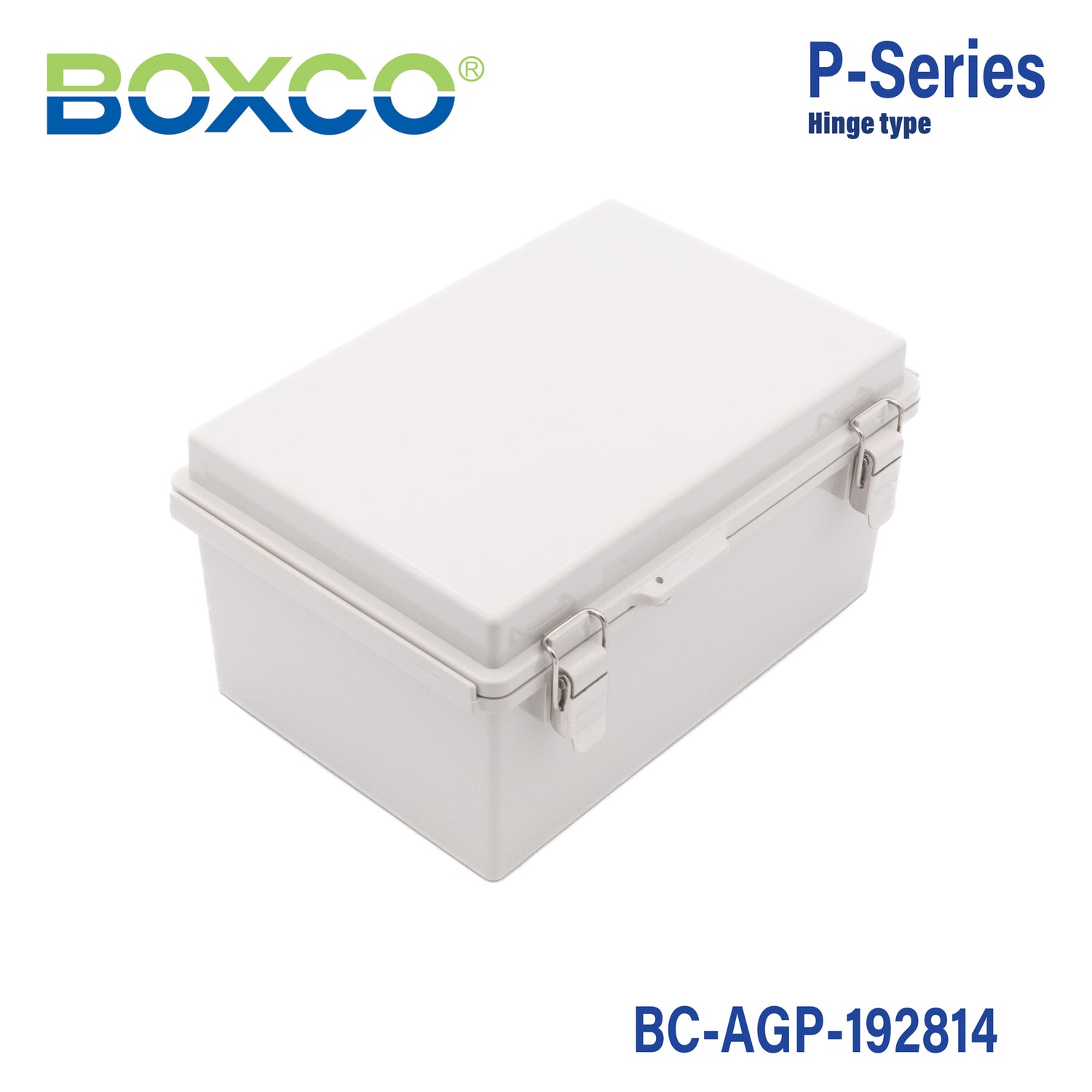

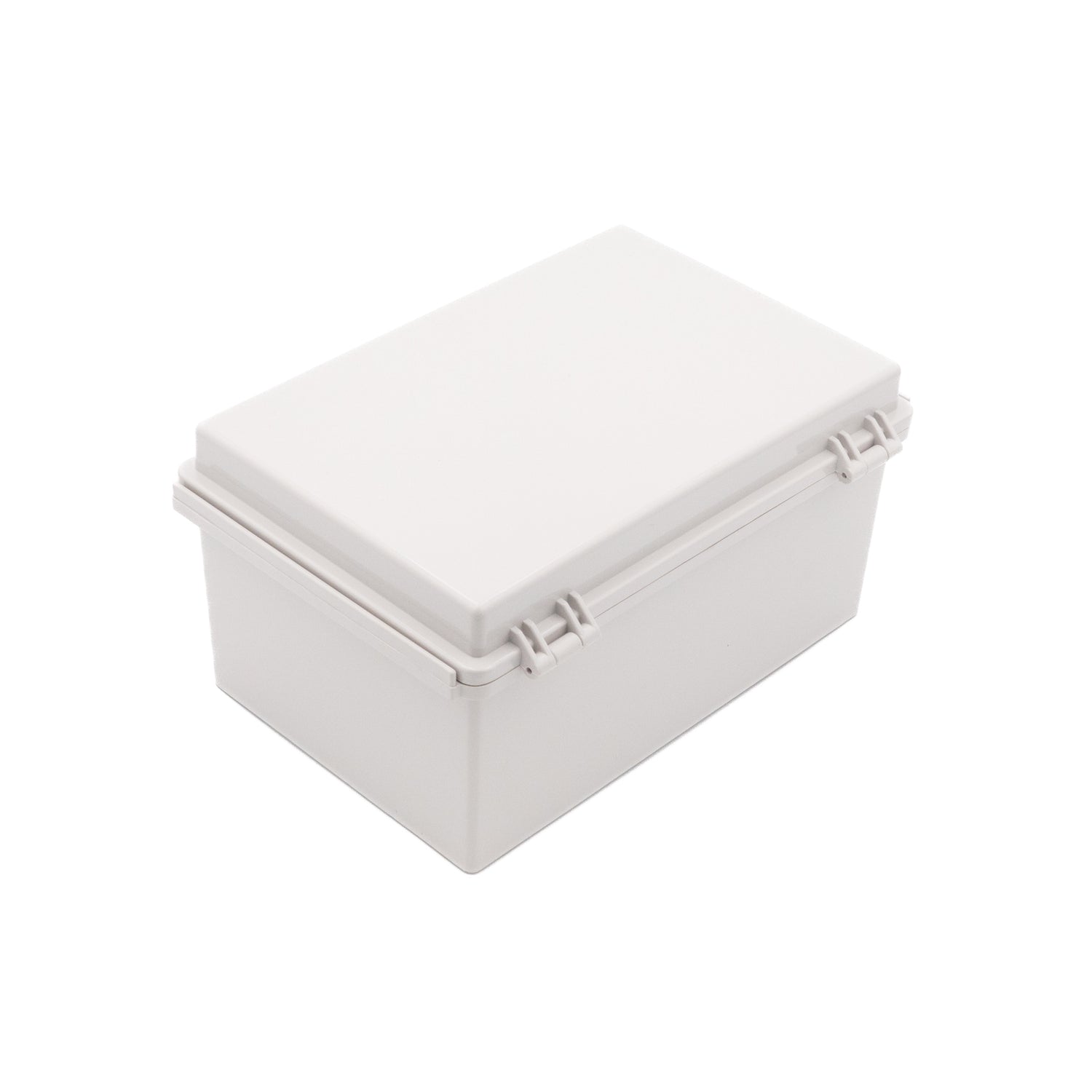

Boxco P-Series 190x280x140mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-192814
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-192814 is a 190×280×140 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

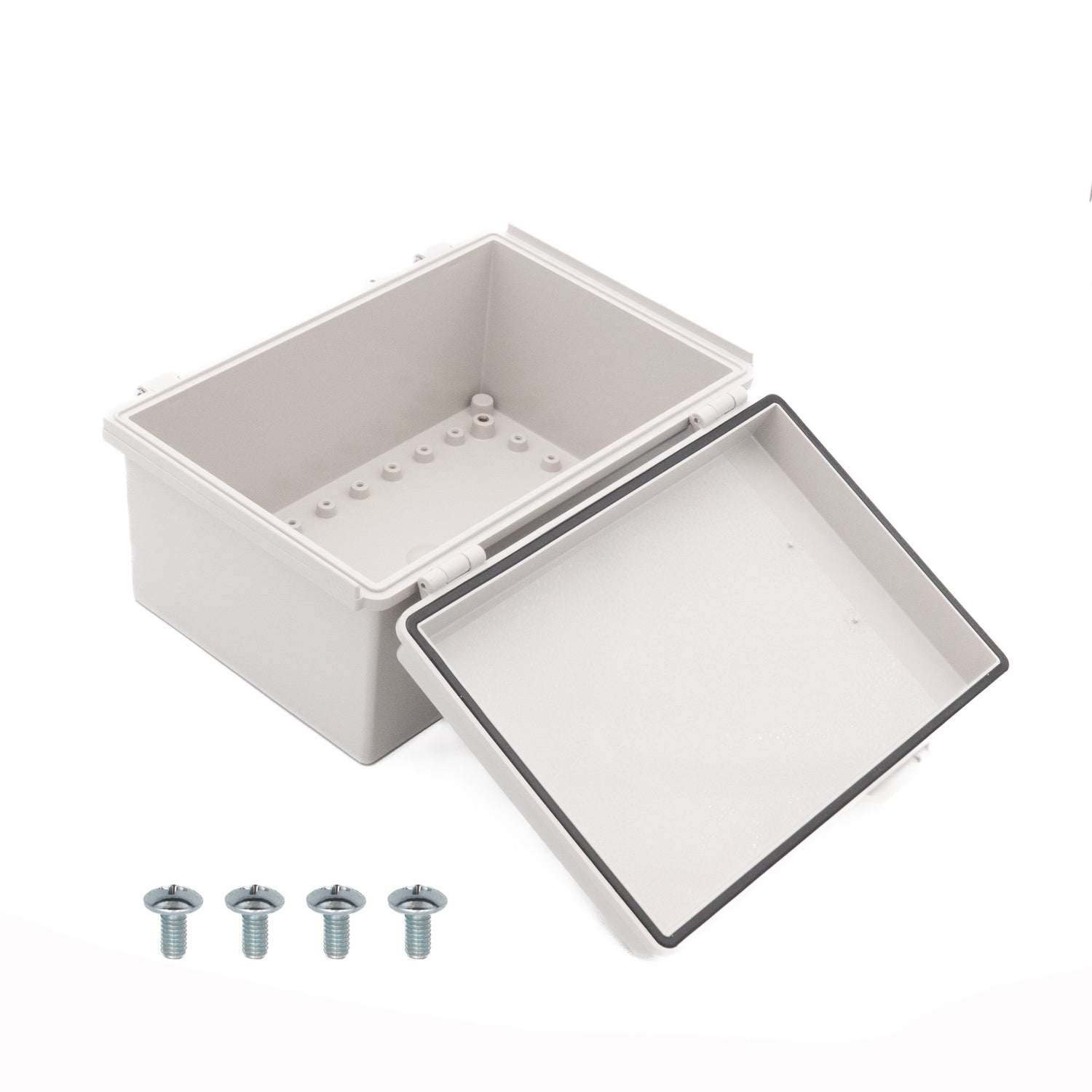

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.

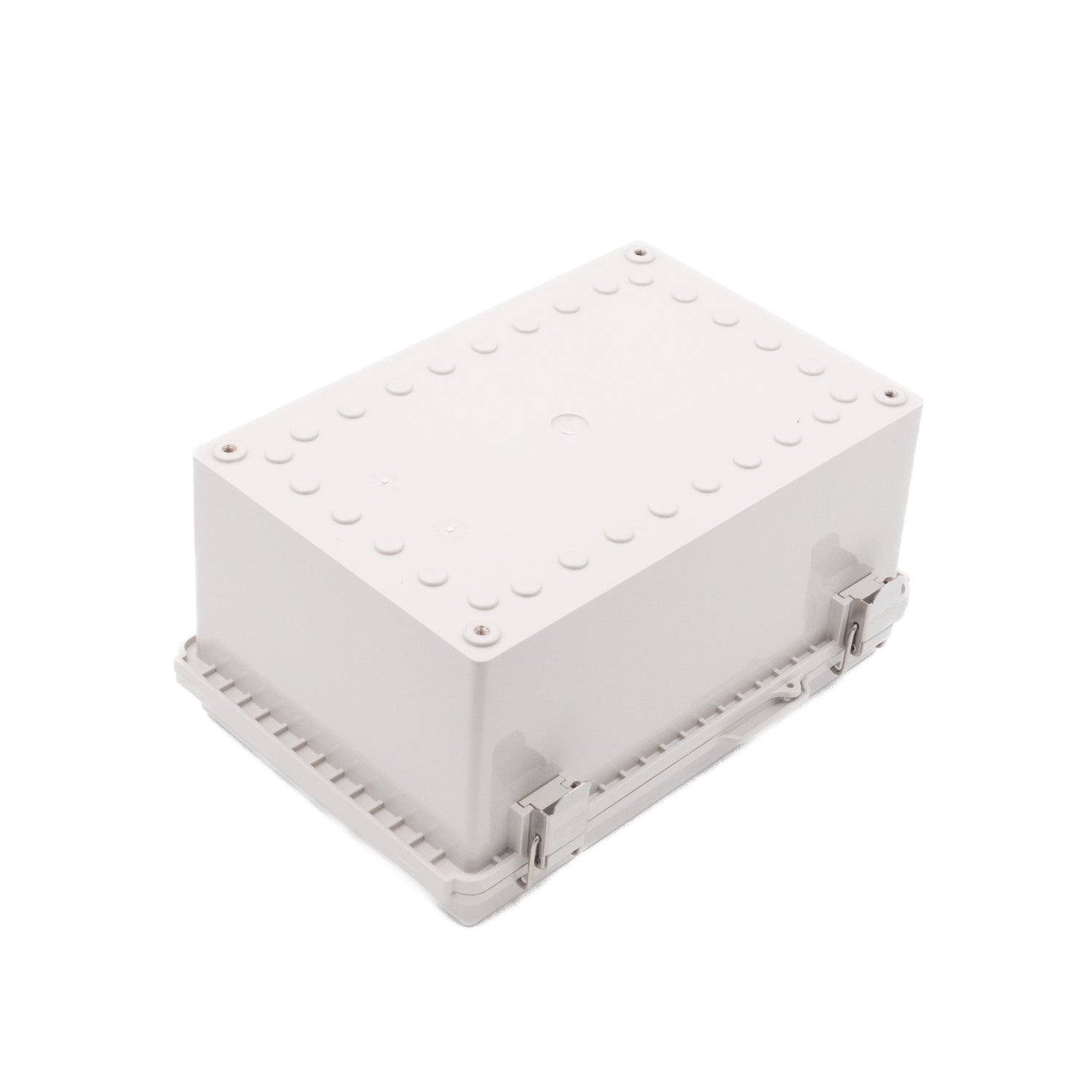

  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-192814Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×280×140 mm (7.48×11.02×5.51 in)
Mounting plate dimension M1 × M2
159 × 249 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1928 PG (Plastic, PG type), 1928 P (Plastic, P type), 1928 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

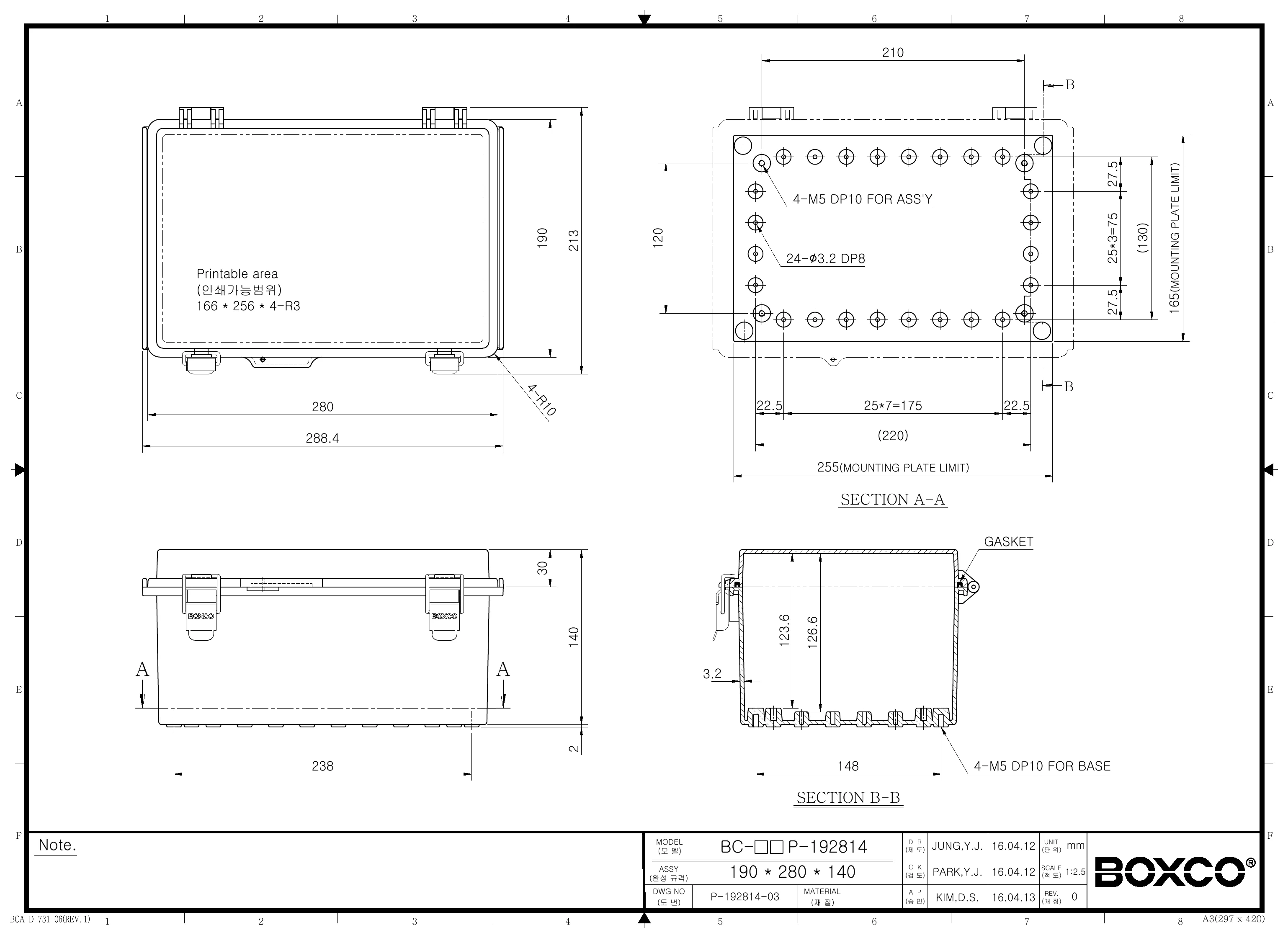

Technical drawings

BC-AGP-192814 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this enclosure typically used for?

This Boxco P-Series enclosure is intended for protecting electronic components and instruments in industrial or commercial applications where a sealed plastic housing is needed. Its molded hinge and latch design makes it suitable for setups that require repeated access while keeping the enclosure closed securely.

How well does this enclosure resist water and dust?

This model is rated IP67, which means it is built to provide strong protection against dust ingress and temporary exposure to water. The product description also highlights a precision-injected gasket and roof-protection design to help maintain waterproof and dust-proof performance.

Is this enclosure suitable for outdoor use?

Yes, this enclosure is designed for outdoor use. The ABS material includes an ultraviolet stabilizer to reduce color change over time, and the housing design includes features intended to help limit water and dust entry in outdoor environments.

What are the size and material of this enclosure?

This model measures 7.48 x 11.02 x 5.51 inches, which corresponds to 190 x 280 x 140 mm. It is made of ABS plastic and comes with a grey cover in Boxco's molded hinge and latch style.

What temperature range can this enclosure handle?

The stated operating temperature range for this enclosure is -40°C to 70°C. That range makes it a practical option for demanding indoor or outdoor environments where temperatures may vary significantly.

Does this enclosure offer impact resistance for tougher environments?

Yes, this enclosure is rated IK08 for impact resistance. The description also states that it uses high impact resistant material to help withstand external impact and reduce breakage during machining or panel modification.

What makes this model different from a basic non-hinged plastic enclosure?

This model includes an integrated molded hinge and latch, which makes repeated access more convenient than a basic screw-cover box. It also includes pre-molded mounting screw nuts, mounting plate attachment points, and an outdoor-focused design with UV stabilization and roof protection.
