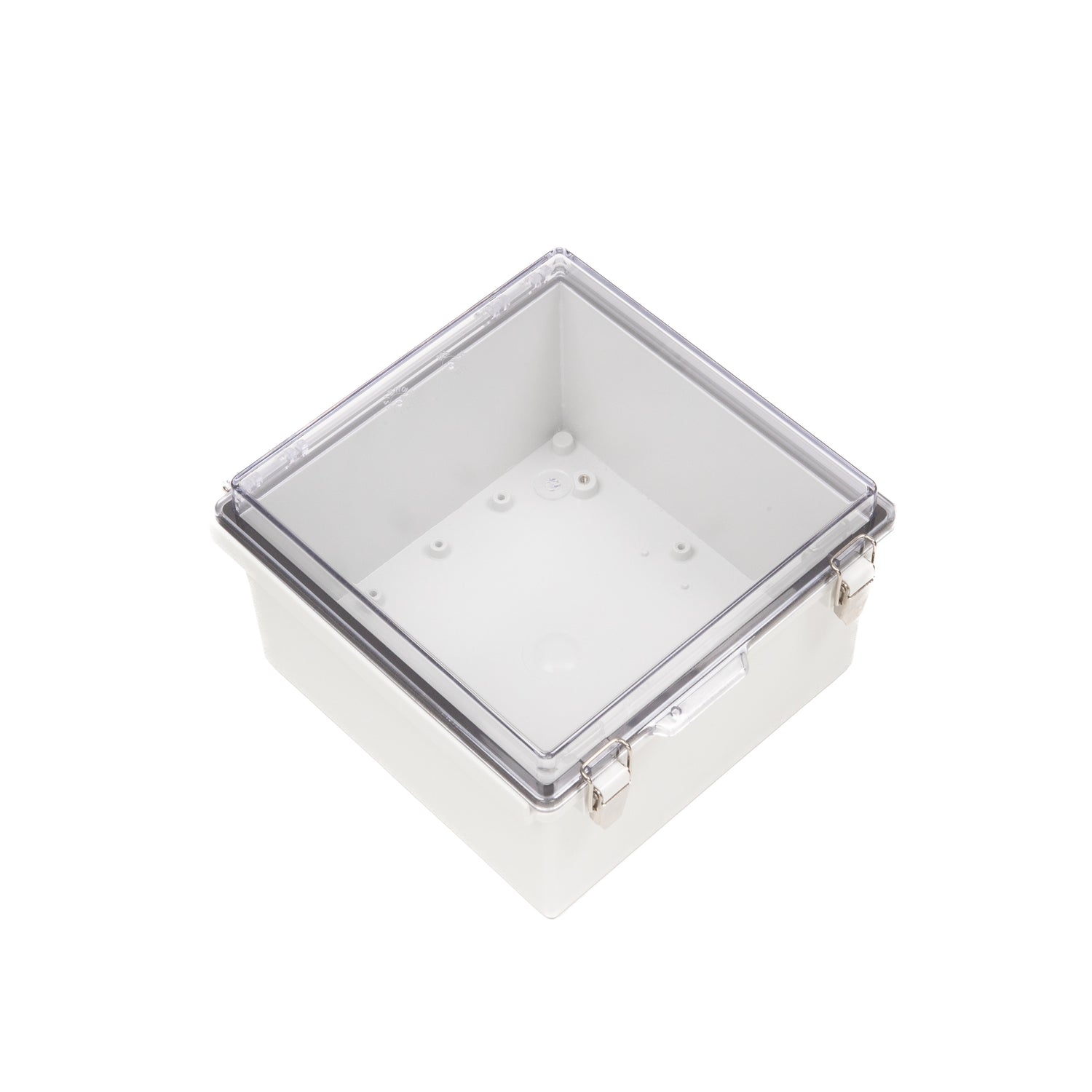

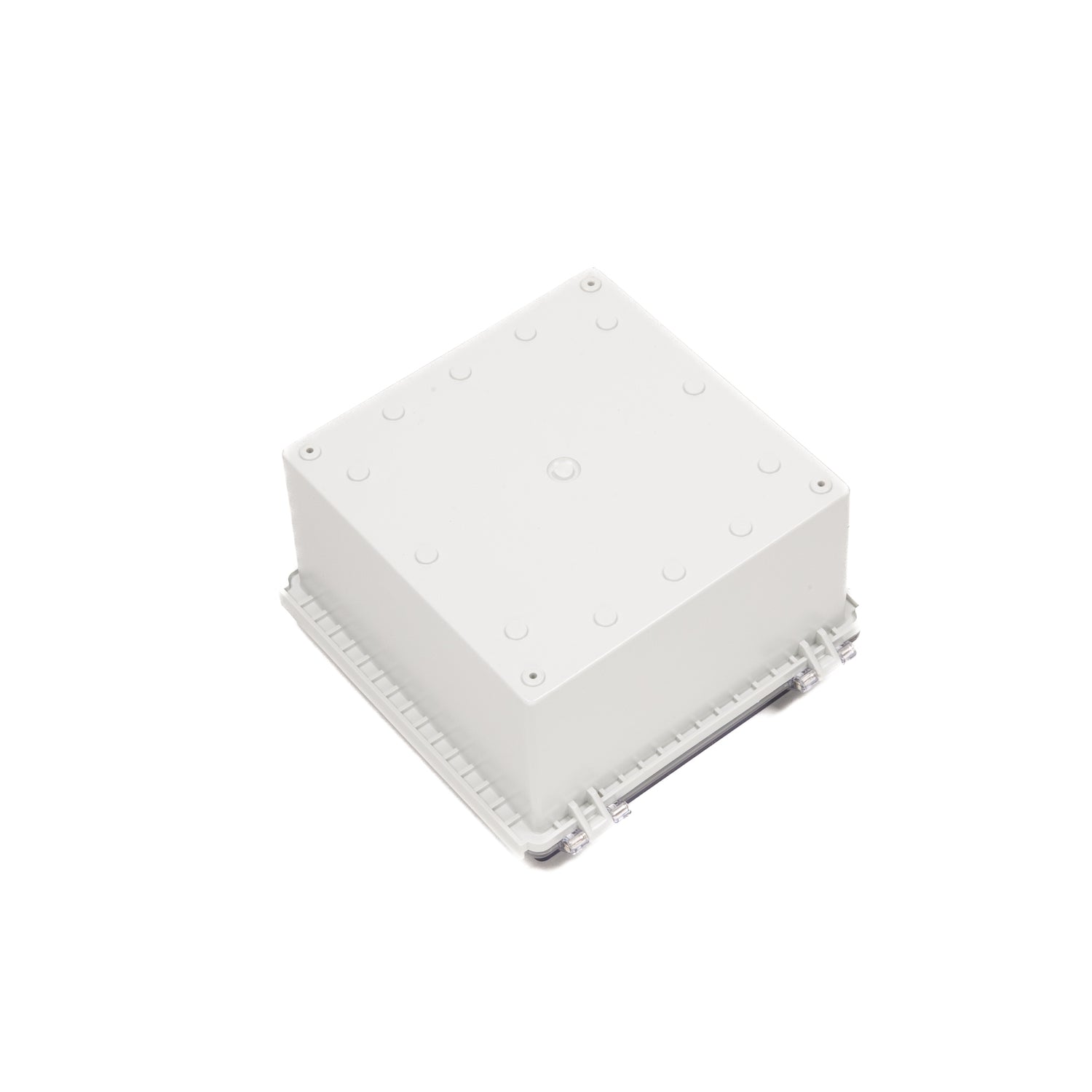

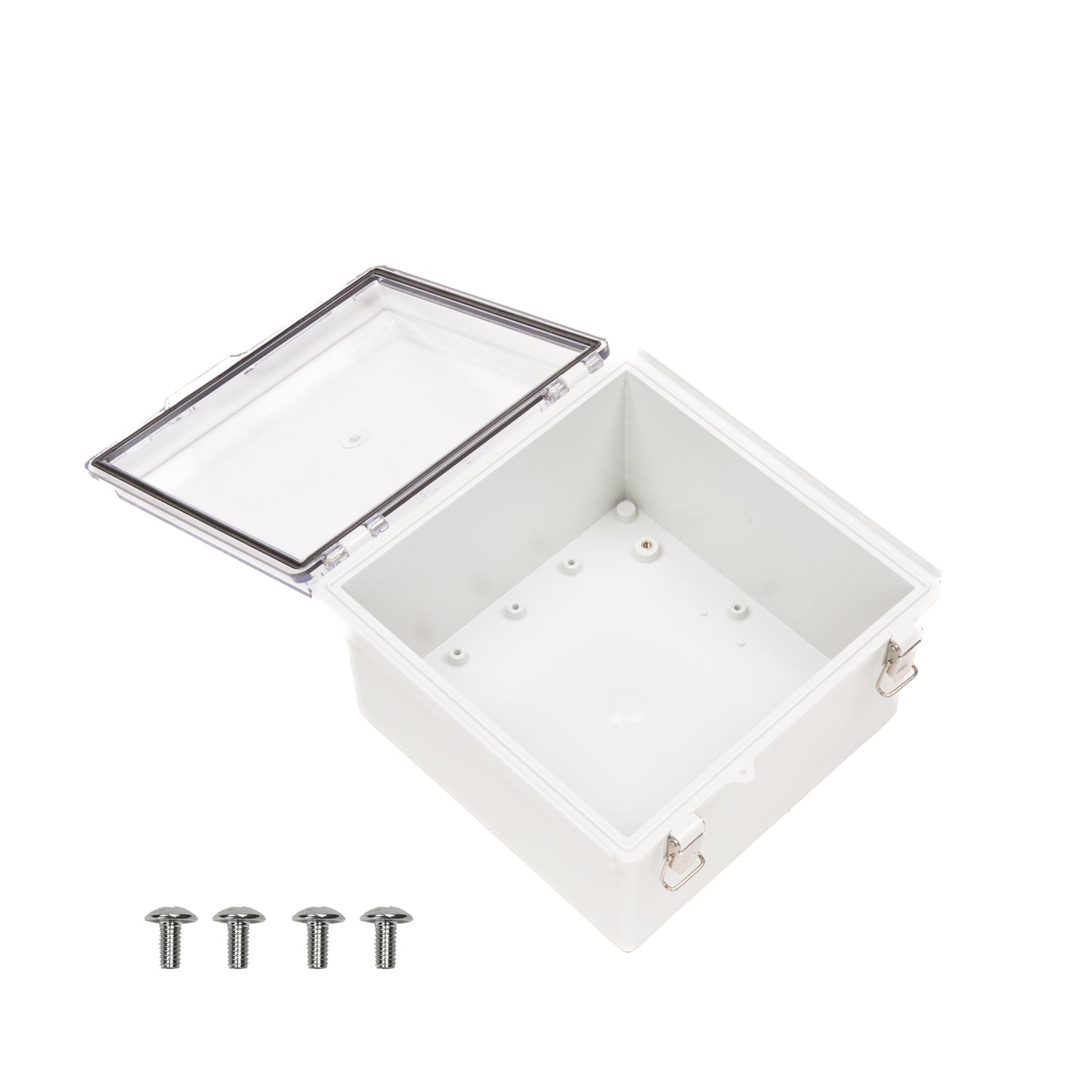

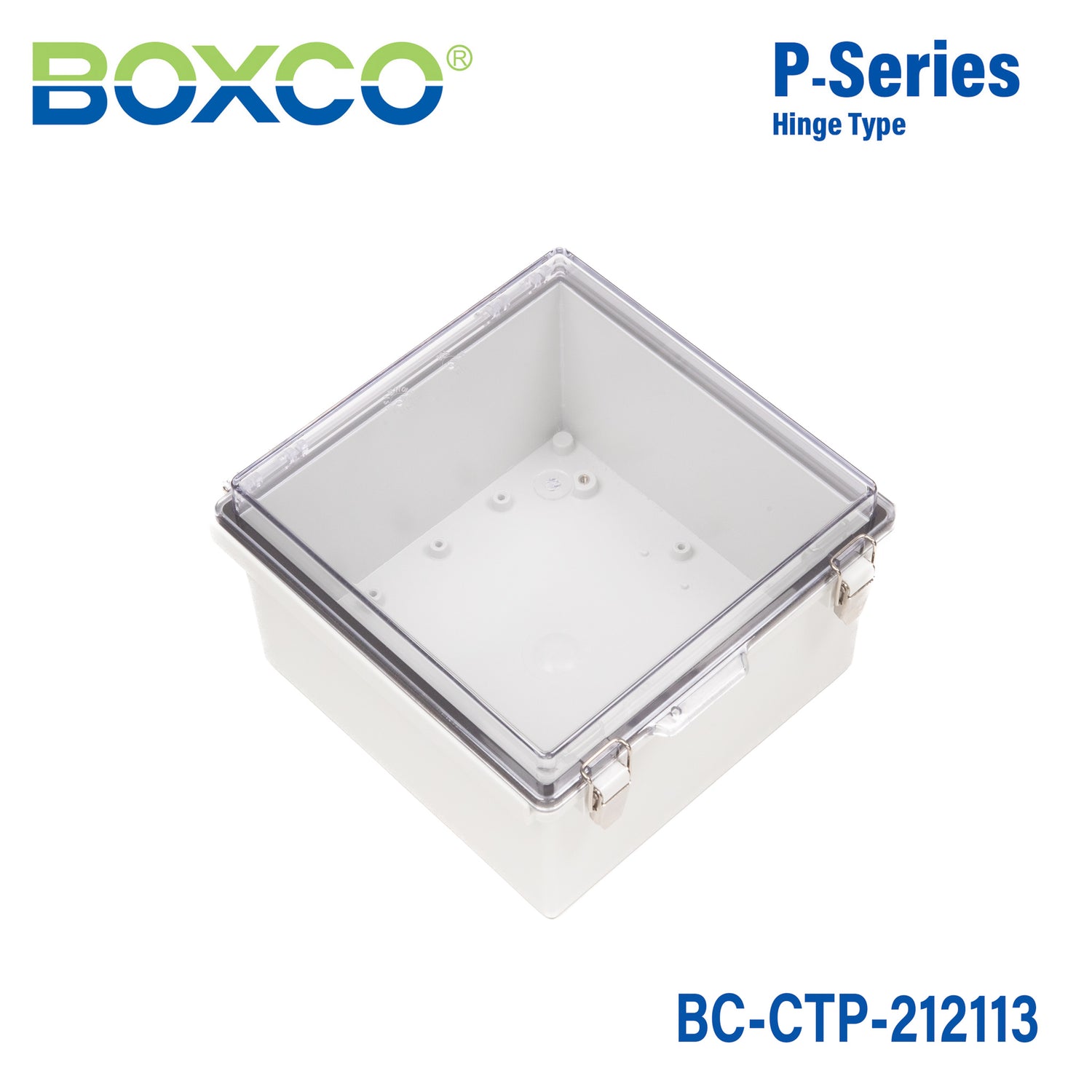

Boxco P-Series 210x210x130mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-212113
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CTP-212113 is a 210×210×130 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-212113Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
210×210×130 mm (8.27×8.27×5.12 in)
Mounting plate dimension M1 × M2
179 × 179 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
2020 G (Plastic, G type), 2020 P (Plastic, P type), 2020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

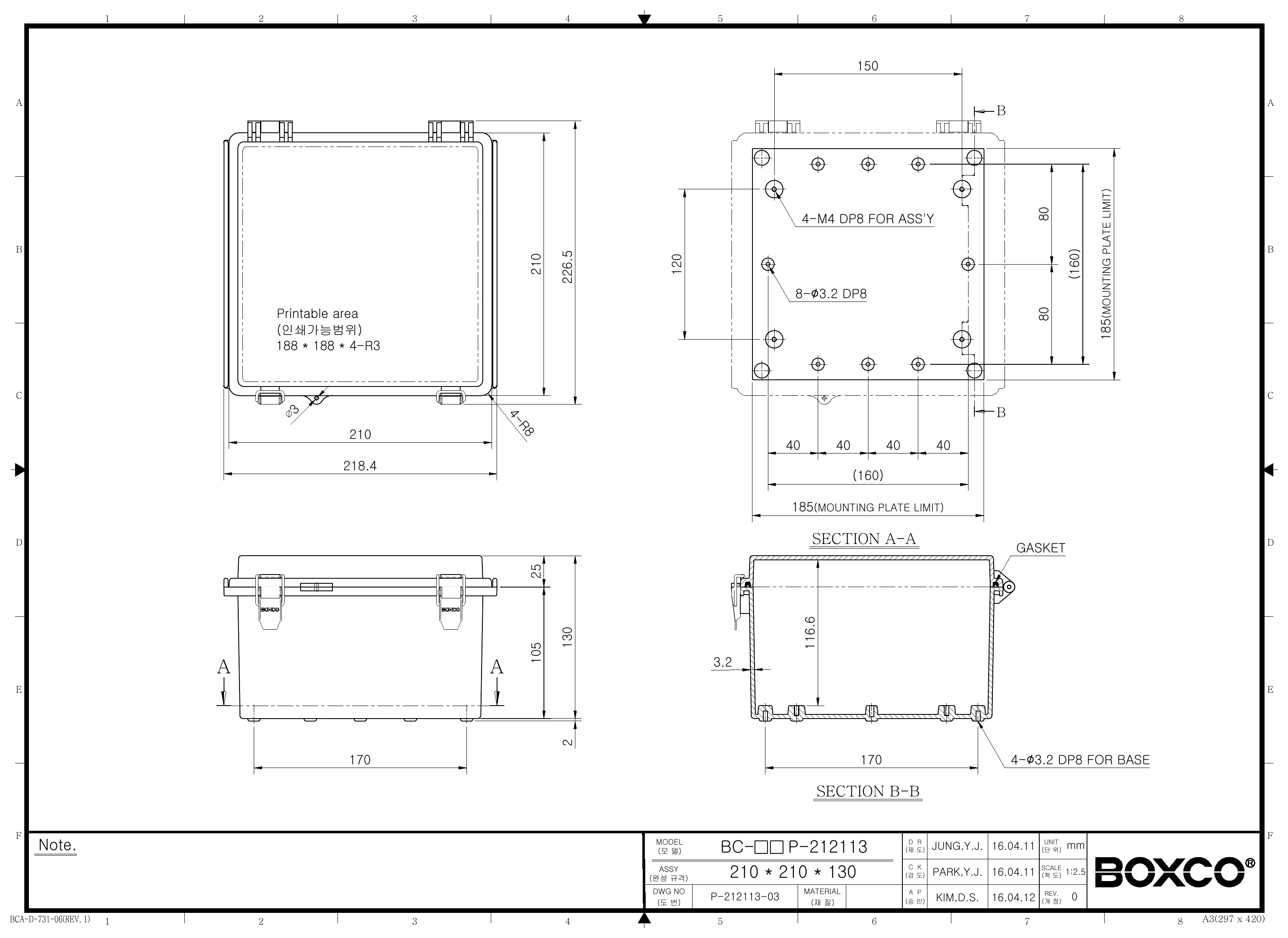

Technical drawings

BC-CTP-212113 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This model is suited for protecting control components, monitoring devices, and other industrial electronics that need a sealed non-metallic enclosure. Its transparent cover also makes it useful where visual inspection of indicators or internal components is helpful without opening the box.

Is this enclosure suitable for outdoor environments?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor use, and the enclosure is designed with roof protection features to help reduce water and dust penetration when opening and closing the cover. Its IP67 rating also indicates strong protection against dust and water ingress.

What are the key protection ratings for this enclosure?

This enclosure is rated IP67 and IK08. That means it is designed for strong dust and water ingress protection and also provides impact resistance appropriate for demanding industrial environments.

What material is this enclosure made from, and what cover style does it use?

This model is made from PC material and includes a transparent cover. It also uses a molded hinge and latch type design, which helps support repeated access while allowing visibility into the enclosure.

What is the usable temperature range for this enclosure?

The listed operating temperature range for this model is -40 °C to 110 °C. That makes it a practical option for both cold and high-heat industrial environments within that range.

Does this enclosure support internal component mounting?

Yes. The description notes pre-molded mounting screw nuts for fixing DIN rail or other equipment, as well as internal mounting plate attachment points. Those features make it better suited for organized internal equipment placement than a basic empty box.
