Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 210x210x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-212110
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-212110 is a 210×210×100 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-212110Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
210×210×100 mm (8.27×8.27×3.94 in)
Mounting plate dimension M1 × M2
179 × 179 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2020 G (Plastic, G type), 2020 P (Plastic, P type), 2020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

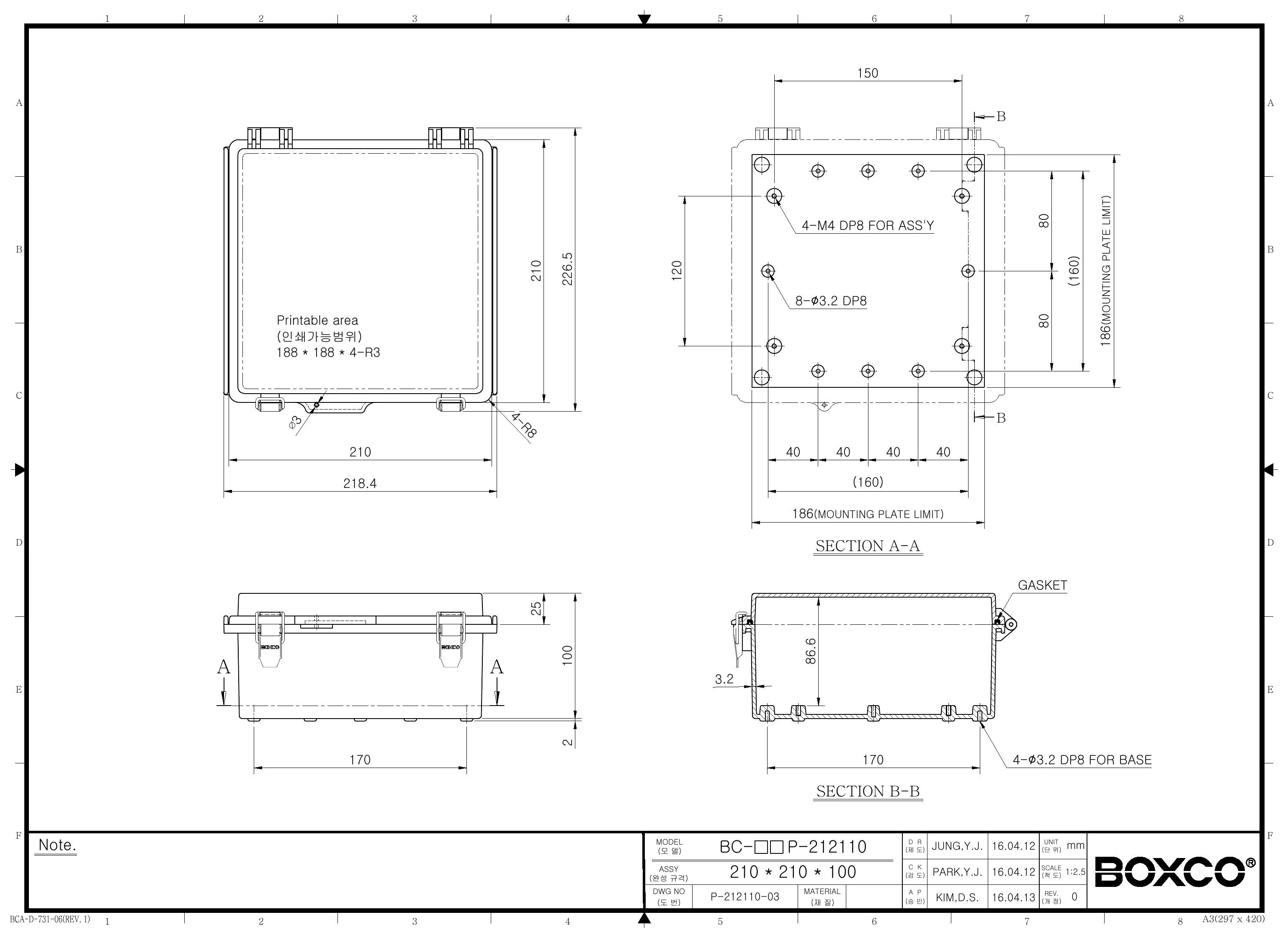

BC-AGP-212110 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure suited for?

This model is intended for protecting electrical or electronic components in industrial and commercial environments where a sealed plastic enclosure is needed. Its ABS construction, molded hinge and latch design, and IP67/IK08 ratings make it a practical choice for control, monitoring, and instrumentation enclosures exposed to dust, water, or impact.

What are the key specifications of model BC-AGP-212110?

The enclosure measures 8.27 x 8.27 x 3.94 inches, which corresponds to 210 x 210 x 100 mm. It is made from ABS, uses a grey cover, has a molded hinge and latch style, weighs 0.6430 kg, and carries a 1-year warranty.

Is this enclosure suitable for outdoor or harsh environments?

Yes, this Boxco P-Series enclosure is built for demanding environments with an IP67 rating for dust-tight and water-resistant protection and an IK08 impact rating. The product description also notes ultraviolet stabilizer for outdoor use and a temperature range of -40 °C to 70 °C.

How does this enclosure help protect sensitive equipment?

According to the product description, the material includes anti-static properties to help protect sensitive electronic instruments from static electricity. The enclosure also uses a precision-injected gasket and protective roof design features to improve resistance to water and dust ingress.

Does this model support mounting internal components or accessories?

Yes, the enclosure includes pre-molded mounting screw nuts for securing items such as DIN rail or other equipment inside the box. It also has internal mounting plate attachment points with brass inserted injection molding to support heavier installed equipment.

What distinguishes this hinged latch-type enclosure from a basic plain-cover box?

This model uses an integrated molded hinge and latch arrangement, which allows repeated access without fully separating the cover from the base. The product description also highlights stainless steel latch components and a stainless steel hinge bearing to improve strength and service life.
