Boxco

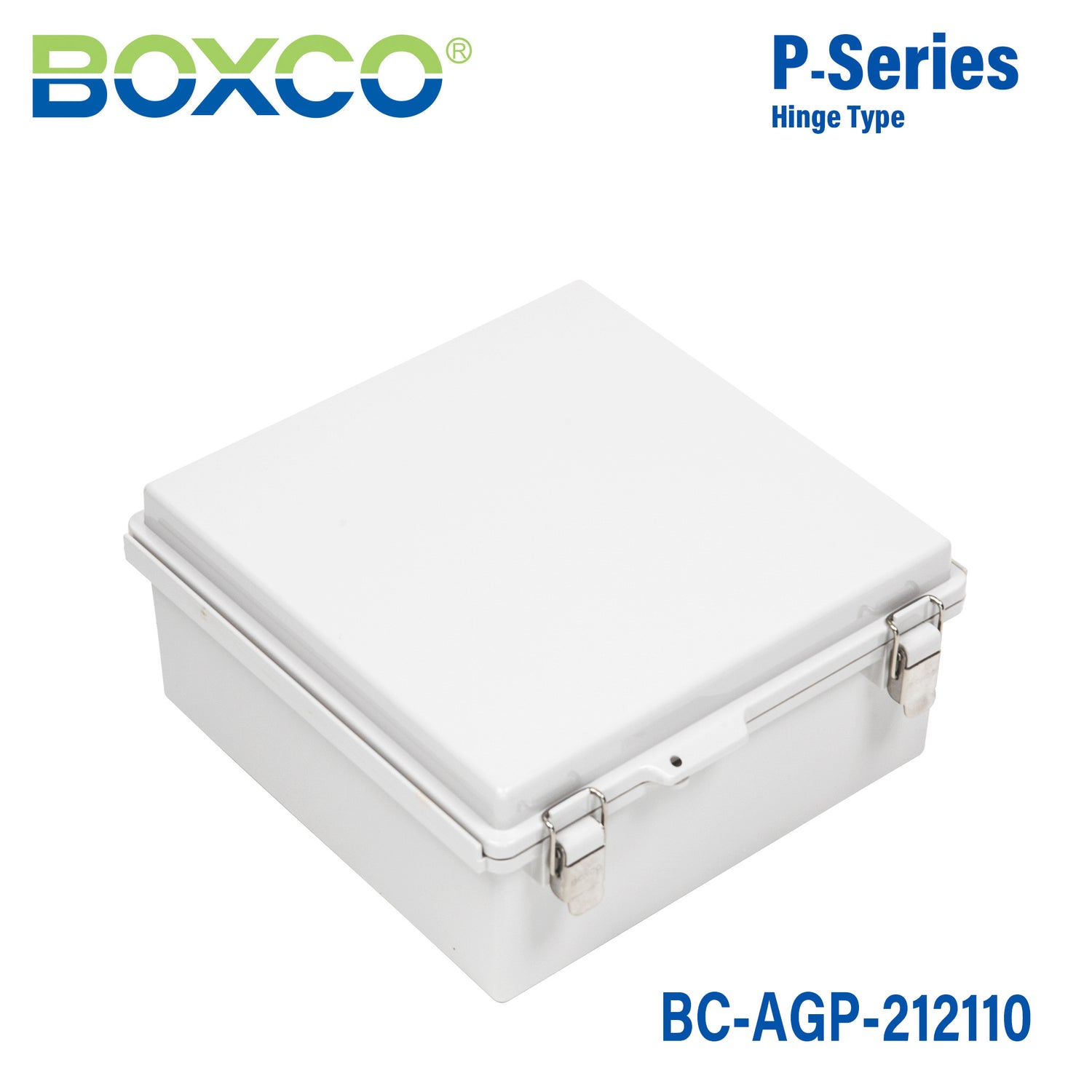

Boxco P-Series 210x210x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU:
BC-AGP-212110
Please for Pricing
|

Description

For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

  • Latch - Main part of the draw latch is made of stainless steel so it is very strong.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
  • Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.

Specifications
  • Brand
    Boxco
  • Series
    Boxco P Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    21 cm
  • Width
    21 cm
  • Height
    10 cm
  • Weight
    0.64 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is this Boxco P-Series enclosure suited for?

This model is intended for protecting electrical or electronic components in industrial and commercial environments where a sealed plastic enclosure is needed. Its ABS construction, molded hinge and latch design, and IP67/IK08 ratings make it a practical choice for control, monitoring, and instrumentation enclosures exposed to dust, water, or impact.

What are the key specifications of model BC-AGP-212110?

The enclosure measures 8.27 x 8.27 x 3.94 inches, which corresponds to 210 x 210 x 100 mm. It is made from ABS, uses a grey cover, has a molded hinge and latch style, weighs 0.6430 kg, and carries a 1-year warranty.

Is this enclosure suitable for outdoor or harsh environments?

Yes, this Boxco P-Series enclosure is built for demanding environments with an IP67 rating for dust-tight and water-resistant protection and an IK08 impact rating. The product description also notes ultraviolet stabilizer for outdoor use and a temperature range of -40 °C to 70 °C.

How does this enclosure help protect sensitive equipment?

According to the product description, the material includes anti-static properties to help protect sensitive electronic instruments from static electricity. The enclosure also uses a precision-injected gasket and protective roof design features to improve resistance to water and dust ingress.

Does this model support mounting internal components or accessories?

Yes, the enclosure includes pre-molded mounting screw nuts for securing items such as DIN rail or other equipment inside the box. It also has internal mounting plate attachment points with brass inserted injection molding to support heavier installed equipment.

What distinguishes this hinged latch-type enclosure from a basic plain-cover box?

This model uses an integrated molded hinge and latch arrangement, which allows repeated access without fully separating the cover from the base. The product description also highlights stainless steel latch components and a stainless steel hinge bearing to improve strength and service life.
