Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 210x210x100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-212110
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-212110 is a 210×210×100 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-212110Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
210×210×100 mm (8.27×8.27×3.94 in)
Mounting plate dimension M1 × M2
179 × 179 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
2020 G (Plastic, G type), 2020 P (Plastic, P type), 2020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

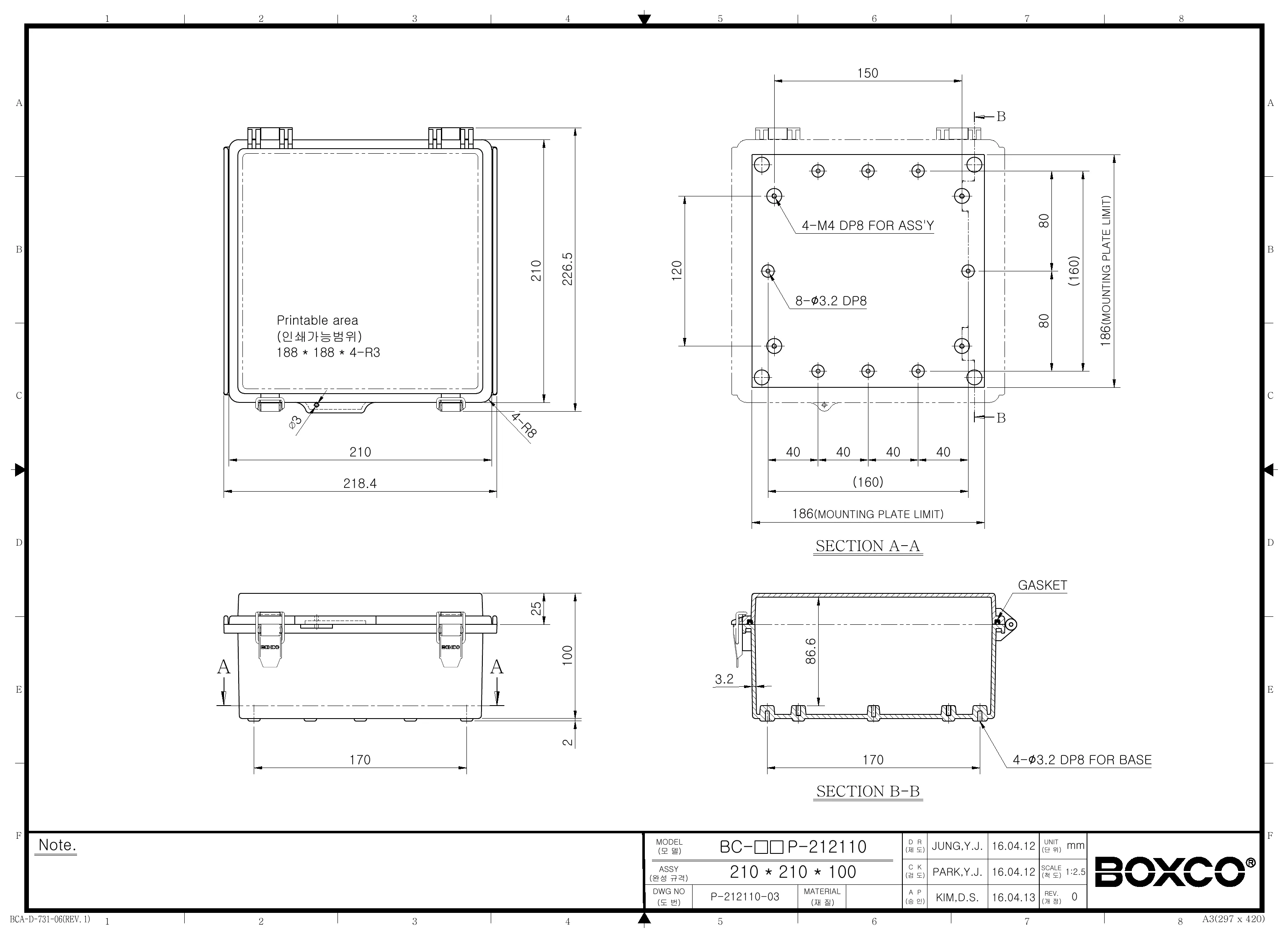

Technical drawings

BC-ATP-212110 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-ATP-212110 enclosure suited for?

This model is intended for protecting electrical or electronic equipment that needs a sealed non-metallic enclosure in indoor or outdoor settings. Its ABS construction, transparent cover, molded hinge, and latch-style access make it a practical choice for control, monitoring, or instrumentation assemblies that benefit from visible inspection without opening the box.

What are the key protection ratings for this enclosure?

The BC-ATP-212110 is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. Boxco also describes the P-Series as using high impact resistant material and a precision-injected gasket to support strong waterproof and dust-proof performance.

Is this plastic enclosure suitable for outdoor use?

Yes. The product description states that ultraviolet stabilizer is added for outdoor usage, and the P-Series design includes roof protection features intended to reduce water penetration when used outside. Boxco also notes that only minor color change should be expected over long-term use.

What temperature range can this enclosure handle?

This enclosure is specified for operation from -40 C to 70 C. That range makes it suitable for environments with significant temperature variation, provided the installed equipment is also rated for the same conditions.

How does this model differ from a basic opaque plastic junction box?

This version adds a transparent cover, molded hinge, and latch-type closure, which make inspection and repeated access easier than with a basic opaque screw-cover box. It also carries IP67 and IK08 ratings and includes P-Series features such as UV stabilization, anti-static material, and pre-molded mounting screw nuts.

What are the physical size and material details of this enclosure?

The BC-ATP-212110 measures 8.27 x 8.27 x 3.94 inches, which corresponds to 210 x 210 x 100 mm. It is made from ABS and has a listed weight of 0.668 kg, with a transparent cover and integrated molded hinge design.
