Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

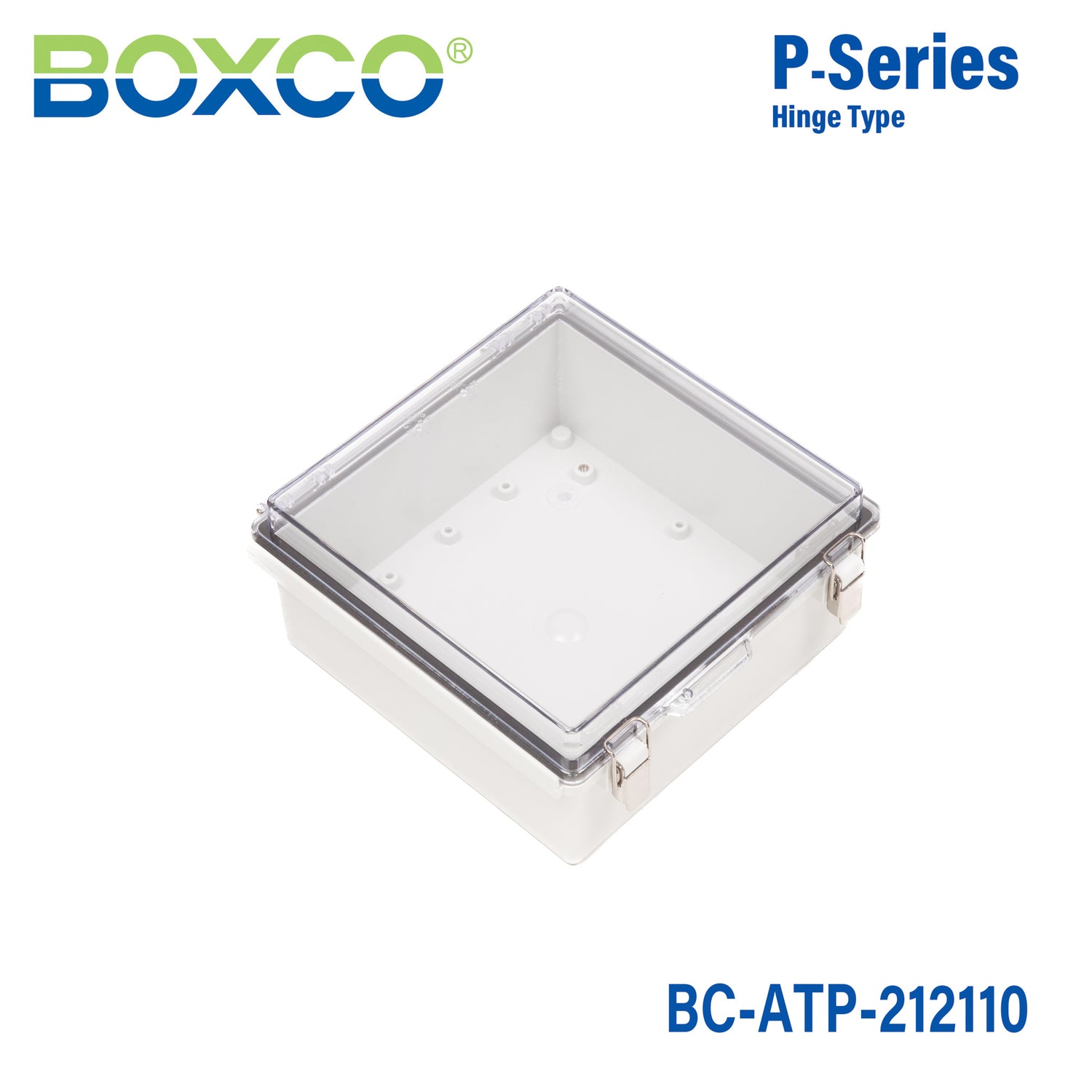

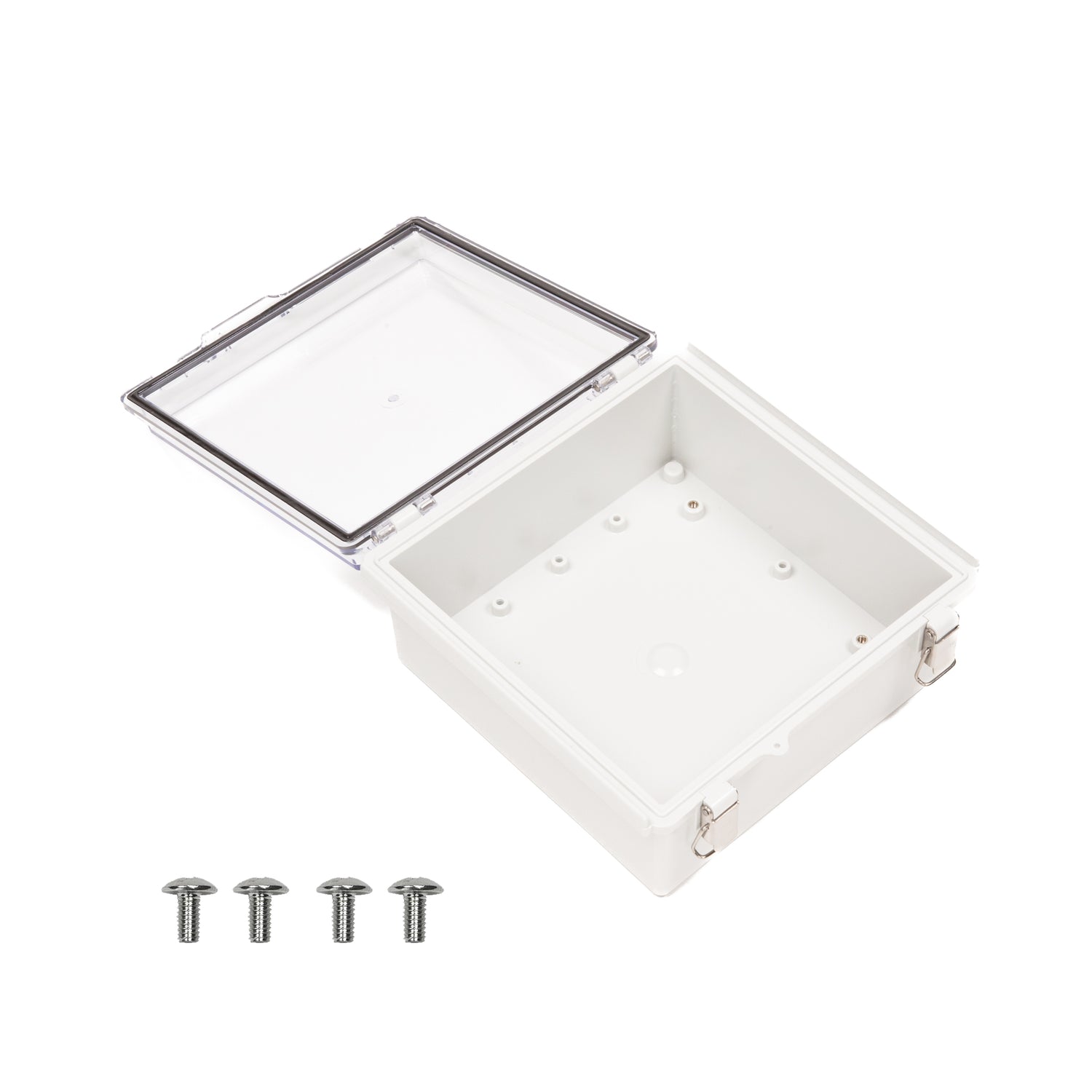

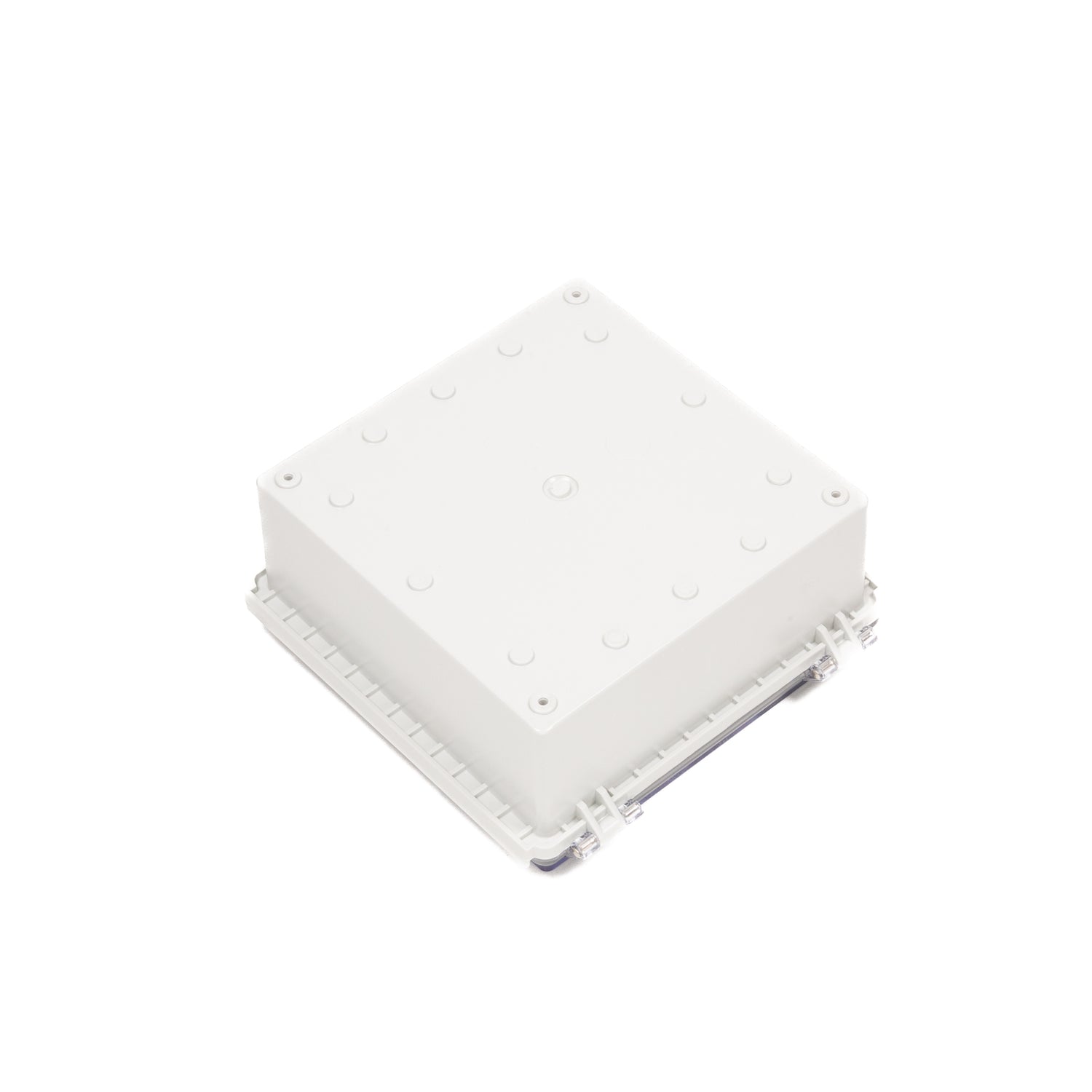

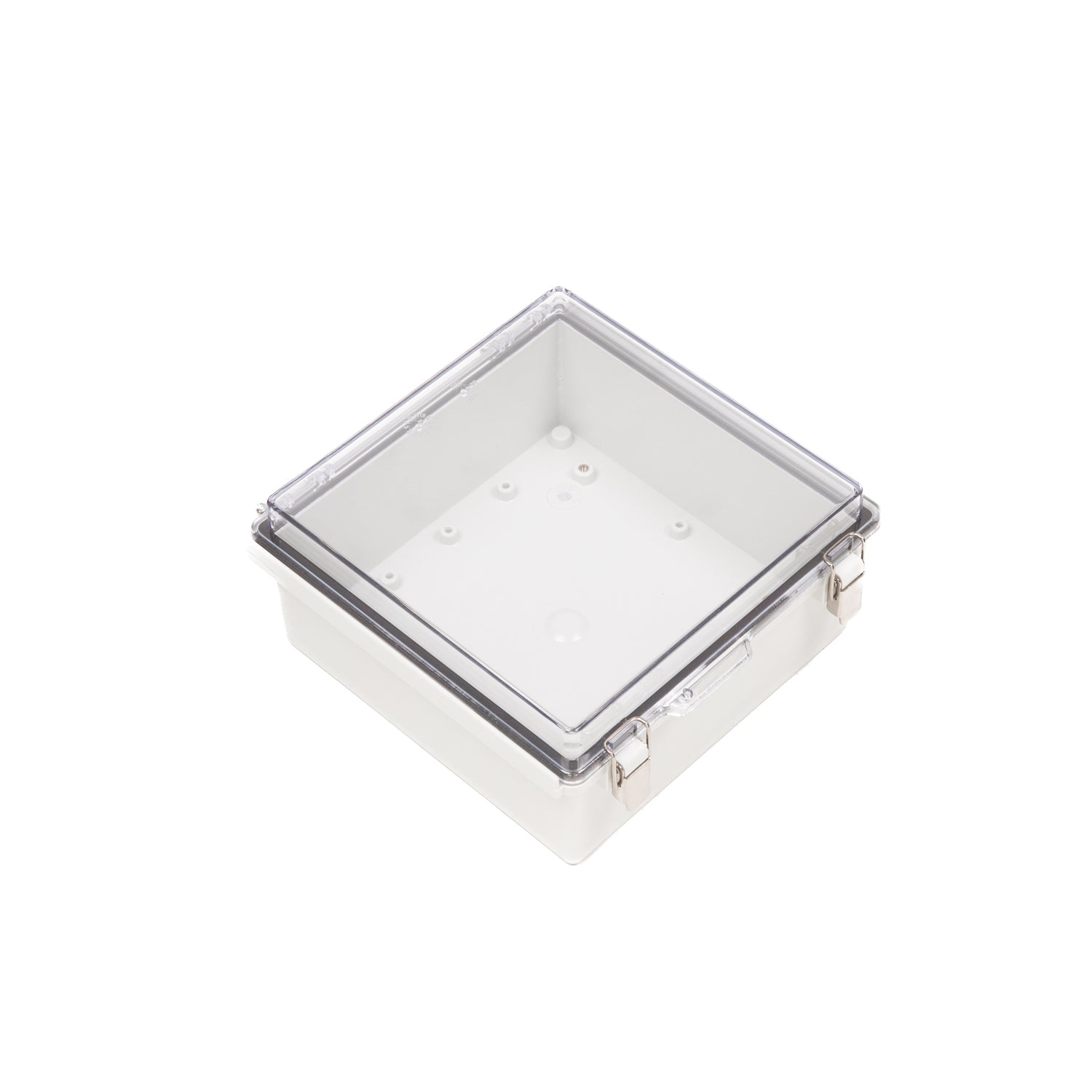

Boxco P-Series 210x210x100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU:
BC-ATP-212110
Please for Pricing
|

Description

For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

  • Latch - Main part of the draw latch is made of stainless steel so it is very strong.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
  • Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.

Specifications
  • Brand
    Boxco
  • Series
    Boxco P Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    21 cm
  • Width
    21 cm
  • Height
    10 cm
  • Weight
    0.67 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco P-Series BC-ATP-212110 enclosure suited for?

This model is intended for protecting electrical or electronic equipment that needs a sealed non-metallic enclosure in indoor or outdoor settings. Its ABS construction, transparent cover, molded hinge, and latch-style access make it a practical choice for control, monitoring, or instrumentation assemblies that benefit from visible inspection without opening the box.

What are the key protection ratings for this enclosure?

The BC-ATP-212110 is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. Boxco also describes the P-Series as using high impact resistant material and a precision-injected gasket to support strong waterproof and dust-proof performance.

Is this plastic enclosure suitable for outdoor use?

Yes. The product description states that ultraviolet stabilizer is added for outdoor usage, and the P-Series design includes roof protection features intended to reduce water penetration when used outside. Boxco also notes that only minor color change should be expected over long-term use.

What temperature range can this enclosure handle?

This enclosure is specified for operation from -40 C to 70 C. That range makes it suitable for environments with significant temperature variation, provided the installed equipment is also rated for the same conditions.

How does this model differ from a basic opaque plastic junction box?

This version adds a transparent cover, molded hinge, and latch-type closure, which make inspection and repeated access easier than with a basic opaque screw-cover box. It also carries IP67 and IK08 ratings and includes P-Series features such as UV stabilization, anti-static material, and pre-molded mounting screw nuts.

What are the physical size and material details of this enclosure?

The BC-ATP-212110 measures 8.27 x 8.27 x 3.94 inches, which corresponds to 210 x 210 x 100 mm. It is made from ABS and has a listed weight of 0.668 kg, with a transparent cover and integrated molded hinge design.
