Boxco

Boxco P-Series 280x280x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-282813
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-282813 is a 280×280×130 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-282813Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×280×130 mm (11.02×11.02×5.12 in)
Mounting plate dimension M1 × M2
248 × 248 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2828 P (Plastic, P type), 2828 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

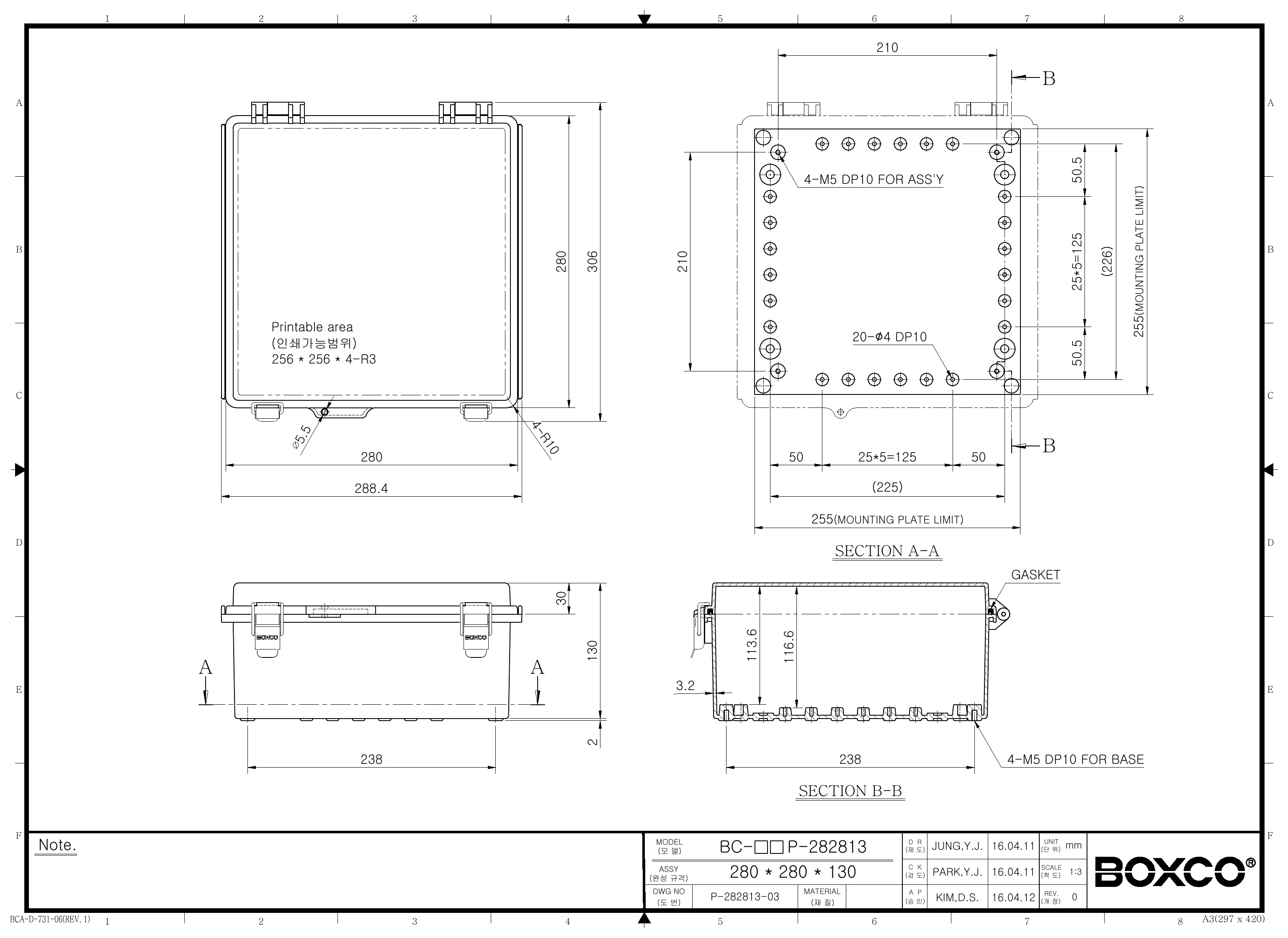

Technical drawings

BC-AGP-282813 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This model is suited to protecting control, monitoring, and instrumentation components that need a sealed non-metallic enclosure. Its IP67 sealing, IK08 impact rating, UV-stabilized ABS construction, and anti-static material make it a practical fit for indoor or outdoor industrial and commercial equipment housings.

Is this enclosure suitable for outdoor use?

Yes. Boxco specifies an ultraviolet stabilizer in the P-Series to help the enclosure withstand outdoor exposure with only minor color change over long-term use. The design also includes roof protection details and a precision-injected gasket to support water and dust resistance at the IP67 level.

What are the key specifications of this specific enclosure?

This Boxco P-Series model measures 11.02 x 11.02 x 5.12 inches, or 280 x 280 x 130 mm. It is made from ABS, has a grey cover, uses a molded hinge and latch-type design, carries IP67 and IK08 ratings, weighs 1.146 kg, and is rated for use from -40 C to 70 C.

How does the molded hinge and latch design benefit this model?

The enclosure uses an integrated plastic hinge with a stainless steel bearing to improve service life during repeated opening and closing. Its draw latch main component is stainless steel, giving the closure added strength compared with lighter-duty plastic-only latch hardware.

Can this enclosure support internal mounting hardware or heavier internal components?

Yes. Boxco includes pre-molded mounting screw nuts for securing DIN rail or other equipment, and dedicated attachment points for an internal mounting plate. The mounting plate can be fixed to brass inserted injection-molded points to better support heavier equipment inside the enclosure.

Does this enclosure offer protection for sensitive electronics?

Yes. Boxco states that anti-static material is used in this P-Series enclosure to help protect sensitive electronic instruments from static electricity. The high-impact ABS body also resists external impact and helps reduce breakage during machining or press processing.
